Repair procedures: Inspection
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

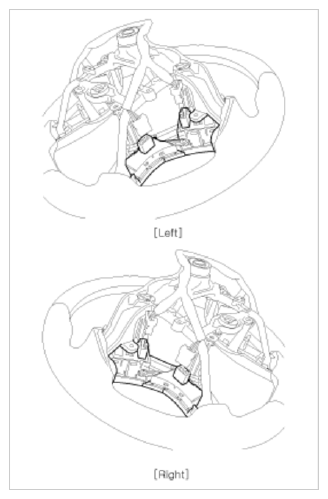

- Check the audio remote control switch for resistance between connector 3 and 4 in each switch position.
AUDIO CONNECTOR REFERENCE
| Switch | Connector terminal | Resistance (±1%) |
|---|---|---|
| Seek up | 3-4 | 430 Ω |
| Seek down | 3-4 | 1.1 kΩ |
| Mode | 3-4 | 2.11 kΩ |
| Mute | 3-4 | 3.11 kΩ |
| Volume up | 3-4 | 4.61 kΩ |
| Volume down | 3-4 | 6.81 kΩ |
BLUETOOTH AND VOICE CONNECTOR REFERENCE
| Switch | Connector terminal | Resistance (±1%) |
|---|---|---|
| Voice | 3-4 | 3.9 kΩ |
| Bluetooth off | 3-4 | 12.1 kΩ |
| Bluetooth on | 3-4 | 34.1 kΩ |
