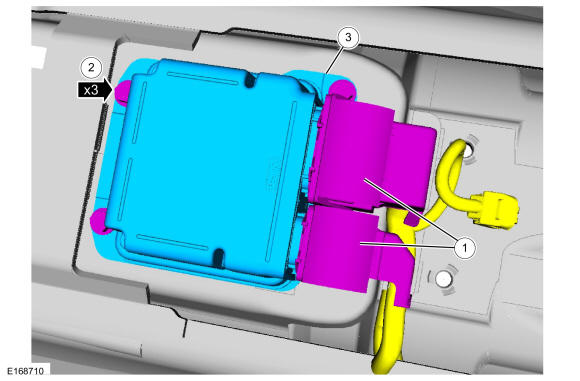

Restraints Control Module (RCM): Removal
WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This vehicle is equipped with SYNC ® which contains 911 Assist™. Refer to the owner literature for setting 911 Assist™ on
NOTE:
Removal steps in this procedure may contain installation details.
- 1.NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current RCM installed. If the current RCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the RCM following the on-screen instructions.
- 2.WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If a SRS fault is present, continue to step 3. Otherwise, turn the ignition off, wait at least one minute and continue to Step 4.
- 3.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
- 4.
Refer to: Floor Console .
