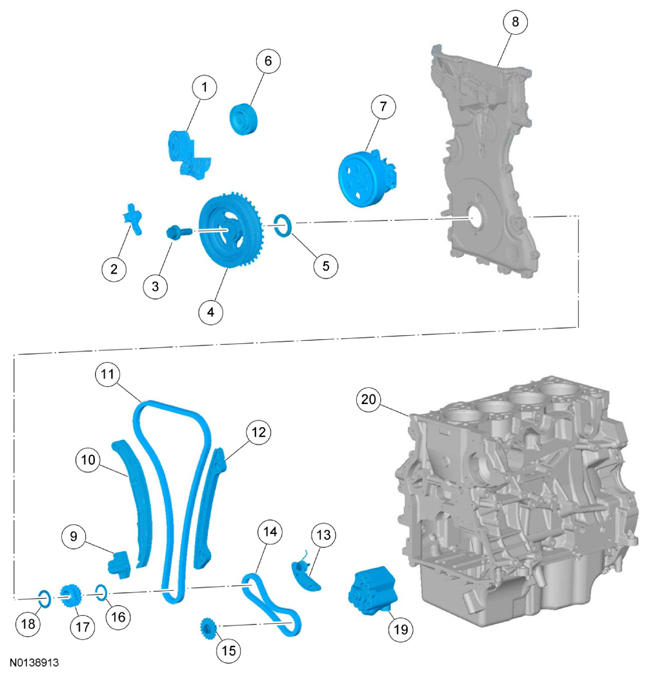

Front Engine Block
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B209 | Accessory drive belt tensioner |
| 2 | 6C315 | Crankshaft Position (CKP) sensor |
| 3 | 6K340 | Crankshaft pulley bolt |
| 4 | 6316 | Crankshaft pulley |
| 5 | 6700 | Crankshaft front seal |
| 6 | 6C348 | Idler pulley |
| 7 | 8501 | Coolant pump and pulley |
| 8 | 6019 | Engine front cover |
| 9 | 6K254 | Timing chain tensioner |
| 10 | 6K255 | Timing chain tensioner arm |
| 11 | 6268 | Timing chain |
| 12 | 6K297 | Timing chain guide |
| 13 | 6C271 | Oil pump chain tensioner |
| 14 | 6A895 | Oil pump chain |
| 15 | 6652 | Oil pump drive gear |
| 16 | 6378 | Diamond washer |
| 17 | 6306 | Crankshaft sprocket |
| 18 | 6378 | Diamond washer |
| 19 | 6600 | Oil pump |
| 20 | 6010 | Cylinder block |
