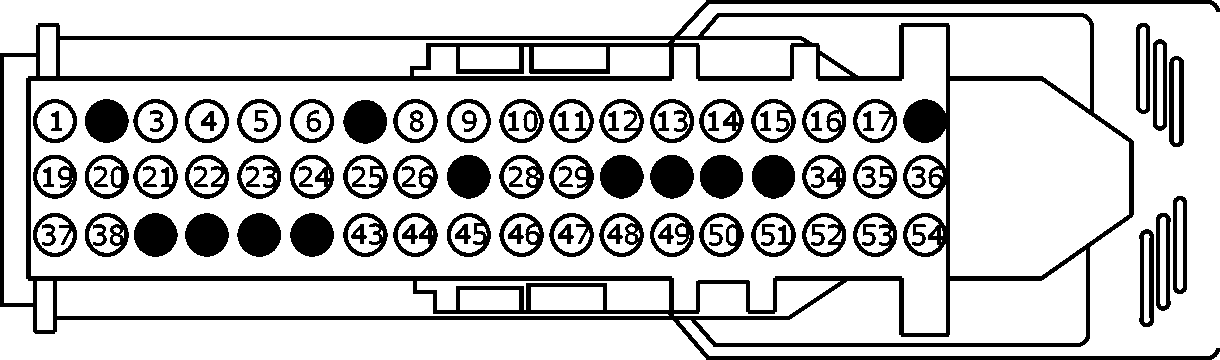

Connector End View (C2383) - ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
Connector: C2383
Description
ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP06 (BN-RD) |
20 |
FUSE - 6 OR CIRCUIT BREAKER |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
VME80 (VT-GN) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
|
|
4 |
RME80 (BU-GY) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
|
|
5 |
VMM13 (BN) |
20 |
MICROPHONE - PHONE/VOICE CONTROL + |
|
|
6 |
DMM13 (*) |
20 |
MICROPHONE - PHONE/VOICE CONTROL D |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
VME67 (VT-GY) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 RIGHT + |
|
|
9 |
DME45 (*) |
20 |
JACK - AUDIO # EXT. AUX IN D |
|
|
10 |
VME45 (BU) |
20 |
JACK - AUDIO # EXT. AUX IN LEFT (+) |
|
|
11 |
RME45 (YE-GN) |
20 |
JACK - AUDIO # EXT. AUX IN LEFT (-) |
|
|
12 |
VMM13 (BN) |
20 |
MICROPHONE - PHONE/VOICE CONTROL + |
|
|
13 |
DMM13 (BARE) |
20 |
MICROPHONE - PHONE/VOICE CONTROL D |
|
|
13 |
DMM13 (*) |
20 |
MICROPHONE - PHONE/VOICE CONTROL D |
|
|
14 |
VMP31 (BU) |
20 |
REAR VIEW CAMERA SIGNAL |
|
|
15 |
RMP31 (GN) |
20 |
REAR VIEW CAMERA RETURN |
|
|
16 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
SYNC GEN 2 |
|
16 |
VDB13 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
|
17 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
SYNC GEN 2 |
|
17 |
VDB14 (VT-GY) |
20 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
VDB13 (BU-GY) |
20 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
|
20 |
VDB14 (VT-GY) |
20 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
|
21 |
DME80 (*) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D |
|
|
21 |
DME80 (BARE) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D |
|
|
21 |
DME80 (*) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D |
|
|
22 |
DME52 (*) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D |
|
|
23 |
VME52 (BU) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
SYNC GEN 2 |
|
23 |
VME53 (VT-GN) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
SYNC GEN 1 |
|
24 |
RME52 (GY-OG) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
SYNC GEN 2 |
|
24 |
RME53 (BN-WH) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
SYNC GEN 1 |
|
25 |
VME52 (BU) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
SYNC GEN 1 |
|
25 |
VME53 (VT-GN) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
SYNC GEN 2 |
|
26 |
RME52 (GY-OG) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
SYNC GEN 1 |
|
26 |
RME53 (BN-WH) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
SYNC GEN 2 |
|
27 |
* |
* |
Not Used |
|
|
28 |
VME46 (BU-GN) |
20 |
JACK - AUDIO # EXT. AUX IN RIGHT (+) |
|
|
29 |
RME46 (WH-GN) |
20 |
JACK - AUDIO # EXT. AUX IN RIGHT (-) |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
VME19 (BN) |
20 |
CTRL MOD. - AUDIO # VIDEO + |
|
|
35 |
RME19 (BN-YE) |
20 |
CTRL MOD. - AUDIO # VIDEO - |
|
|
36 |
DME19 (*) |
20 |
SHIELD |
|
|
37 |
GD135 (BK-GY) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (6L2T) |
|
|
38 |
GD135 (BK-GY) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (6L2T) |
SYNC GEN 1 |
|
38 |
RME67 (BN-WH) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 RIGHT - |
SYNC GEN 2 |
|
39 |
* |
* |
Not Used |
|
|
40 |
* |
* |
Not Used |
|
|
41 |
* |
* |
Not Used |
|
|
42 |
* |
* |
Not Used |
|
|
43 |
* |
* |
Not Used |
|
|
44 |
DME37 (*) |
22 |
CTRL MOD. - AUDIO # EXT. AUX IN D |
|
|
45 |
VME37 (BU-RD) |
22 |
CTRL MOD. - AUDIO # EXT. AUX IN L |
|
|
46 |
RME45 (YE-GN) |
22 |
JACK - AUDIO # EXT. AUX IN LEFT (-) |
SYNC GEN 1 |
|
46 |
VME14 (GY-YE) |
22 |
SWITCH - REDUNDANT AUDIO + |
|
|
47 |
RME24 (BU-WH) |
22 |
CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO |
|
|
47 |
VME38 (BN-RD) |
22 |
CTRL MOD. - AUDIO # EXT. AUX IN R |
SYNC GEN 1 |
|
48 |
* |
* |
Not Used |
|
|
49 |
* |
* |
Not Used |
|
|
50 |
* |
* |
Not Used |
|
|
51 |
VME58 (YE-VT) |
22 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 + |
|
|
52 |
VME59 (YE-OG) |
22 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 + |
|
|
53 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
54 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
