Removal and Installation

WARNING: Before beginning any service procedure in this information, refer to SAFETY WARNINGS in SERVICE INFORMATION . Failure to follow this instruction may result in serious personal injury.
NOTE: Removal steps in this procedure may contain installation details.
  1. G08100360
  2. Screwdriver.

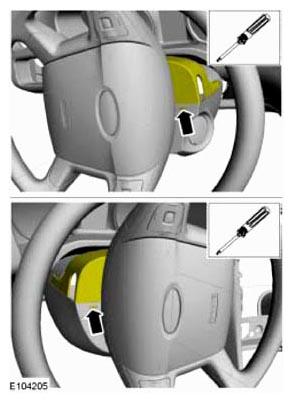

    G08100362

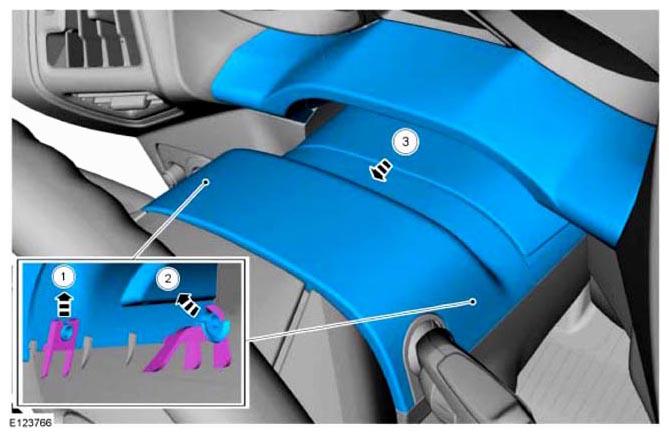

  3. G08100363
    • To install, tighten to 2 Nm (18 lb-in).

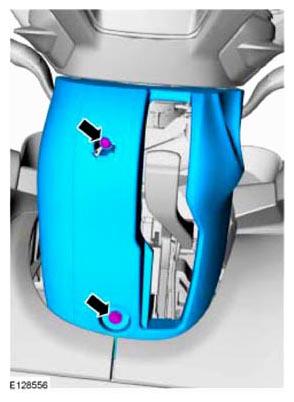

      G08100364
  5. To install, reverse the removal procedure.
