Power Running Board (PRB) Module Connector End View (C3313A)

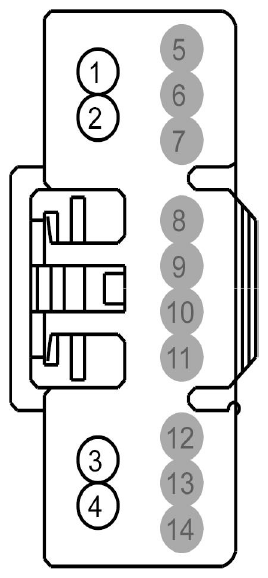

Fig 1: Identifying Power Running Board Module Connector (C3313A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR41 (BU-WH)	12	CTRL MOD. - POWER RUNNING BOARDS # DRIVER DEPLOY
2	CPR42 (WH)	12	CTRL MOD. - POWER RUNNING BOARDS # DRIVER STOW
3	CPR45 (VT-GY)	12	CTRL MOD. - POWER RUNNING BOARDS # PASSENGER STOW
4	CPR44 (BN-WH)	12	CTRL MOD. - POWER RUNNING BOARDS # PASSENGER DEPLOY
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
