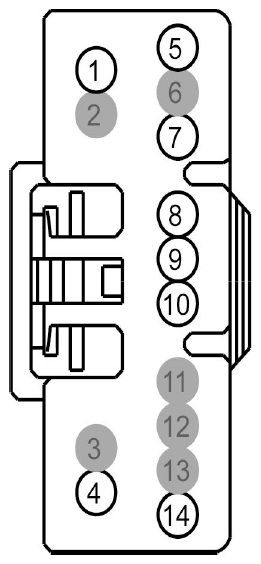

Power Running Board (PRB) Module Connector End View (C3313B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB11 (BU-RD) | 12 | FUSE - 11 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD143 (BK-VT) | 12 | GROUND - PILLAR B LEFT | |
| 5 | CPR47 (GY-BN) | 20 | CTRL MOD. - POWER RUNNING BOARDS # SENSOR | |
| 6 | * | * | Not Used | |
| 7 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 8 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 9 | VPR43 (GY-BU) | 20 | SENSOR. - POWER RUNNING BOARDS # DRIVER POSITION | |
| 10 | VPR46 (GY-OG) | 20 | SENSOR. - POWER RUNNING BOARDS # PASSENGER POSITION | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | RPR47 (BU-GN) | 20 | CTRL MOD. - POWER RUNNING BOARDS # SENSOR |

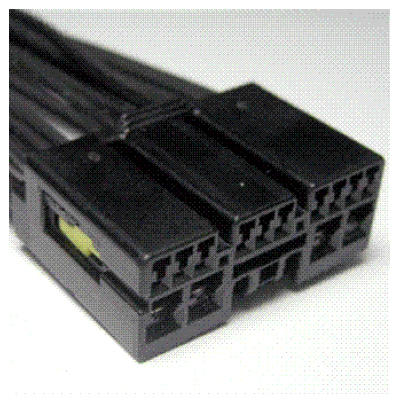

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1169 | Service Part Number: BU2Z-14S411-PA Gauge: 12 18 Pin material: Tin (greased) Cavities: 14 Vehicle Uses
|
