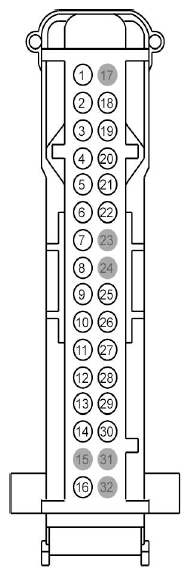

| 1 |
GD114 (BK-BU) |
18 |
GROUND - CROSS CAR BEAM |
|
| 2 |
DME09 (OG) |
20 |
CTRL MOD. - AUDIO # FRONT |
Navigator |
| 3 |
RME58 (BN-BU) |
22 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 |
|
| 4 |
VME58 (YE-VT) |
22 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 |
|
| 5 |
VME41 (GN-OG) |
22 |
CTRL MOD. - AUDIO # SATELLITE DIGITAL RADIO LEFT+ |
without SYNC |
| 5 |
VME52 (BU) |
22 |
SWITCH - STEREO IN LEFT + |
with SYNC |
| 6 |
RME52 (GY-OG) |
22 |
SWITCH - STEREO IN LEFT - |
with SYNC |
| 6 |
RME41 (BU-BN) |
20 |
CTRL MOD. - AUDIO # SATELLITE DIGITAL RADIO LEFT |
without SYNC |
| 7 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 8 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 9 |
RME17 (GY) |
20 |
CTRL MOD. - AUDIO # RADIO LEFT |
|
| 10 |
VME17 (GN) |
20 |
CTRL MOD. - AUDIO # RADIO LEFT |
|
| 11 |
VME12 (BN-WH) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
|
| 12 |
RME12 (BN-BU) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
|
| 13 |
RME12 (BN-BU) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
Expedition |
| 13 |
RME12 (BN-BU) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
Navigator |
| 14 |
VME12 (BN-WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
Expedition |
| 14 |
VME12 (BN-WH) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
Navigator |
| 15 |
* |
* |
Not Used |
|
| 16 |
SBP03 (BU-RD) |
18 |
FUSE - 3 OR CIRCUIT BREAKER |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
DME17 (OG) |
20 |
CTRL MOD. - AUDIO # RADIO |
|
| 19 |
RME59 (WH-GN) |
22 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 |
|
| 20 |
VME59 (YE-OG) |
22 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 |
|
| 21 |
VME53 (VT-GN) |
22 |
SWITCH - STEREO IN RIGHT + |
with SYNC |
| 21 |
VME42 (VT-BN) |
22 |
CTRL MOD. - AUDIO # SATELLITE DIGITAL RADIO RIGHT |
without SYNC |
| 22 |
RME42 (YE-BU) |
22 |
CTRL MOD. - AUDIO # SATELLITE DIGITAL RADIO RIGHT |
without SYNC |
| 22 |
RME53 (BN-WH) |
22 |
SWITCH - STEREO IN RIGHT - |
with SYNC |
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
RME18 (YE) |
20 |
CTRL MOD. - AUDIO # RADIO RIGHT |
|
| 26 |
VME18 (VT) |
20 |
CTRL MOD. - AUDIO # RADIO RIGHT |
|
| 27 |
VME09 (WH-GN) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
|
| 28 |
RME09 (BN-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
|
| 29 |
RME09 (BN-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
Expedition |
| 29 |
RME09 (BN-YE) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
Navigator |
| 30 |
VME09 (WH-GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
Expedition |
| 30 |
VME09 (WH-GN) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
Navigator |
| 31 |
* |
* |
Not Used |
|
| 32 |
* |
* |
Not Used |
|
