Door Lock Control Switch; Driver Side - With Memory: Schematic

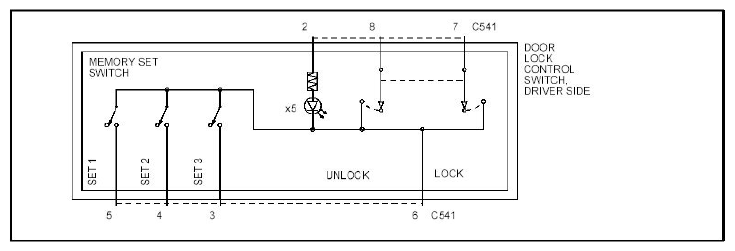

Fig 1: Driver Side Door Lock Control Switch (With Memory) Schematic
G08748640Courtesy of FORD MOTOR CO.
