Component Location Views

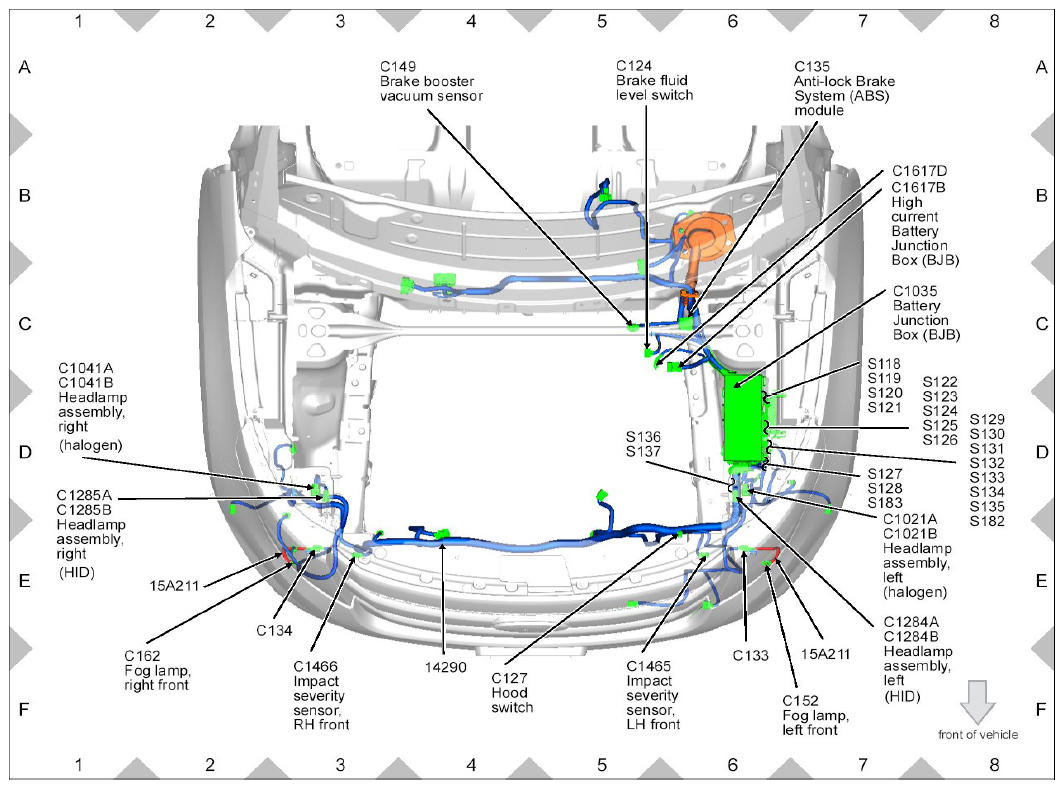

Fig 1: Engine Room Wiring Harness Connectors Location (1 Of 6)

G09012291

Courtesy of FORD MOTOR CO.

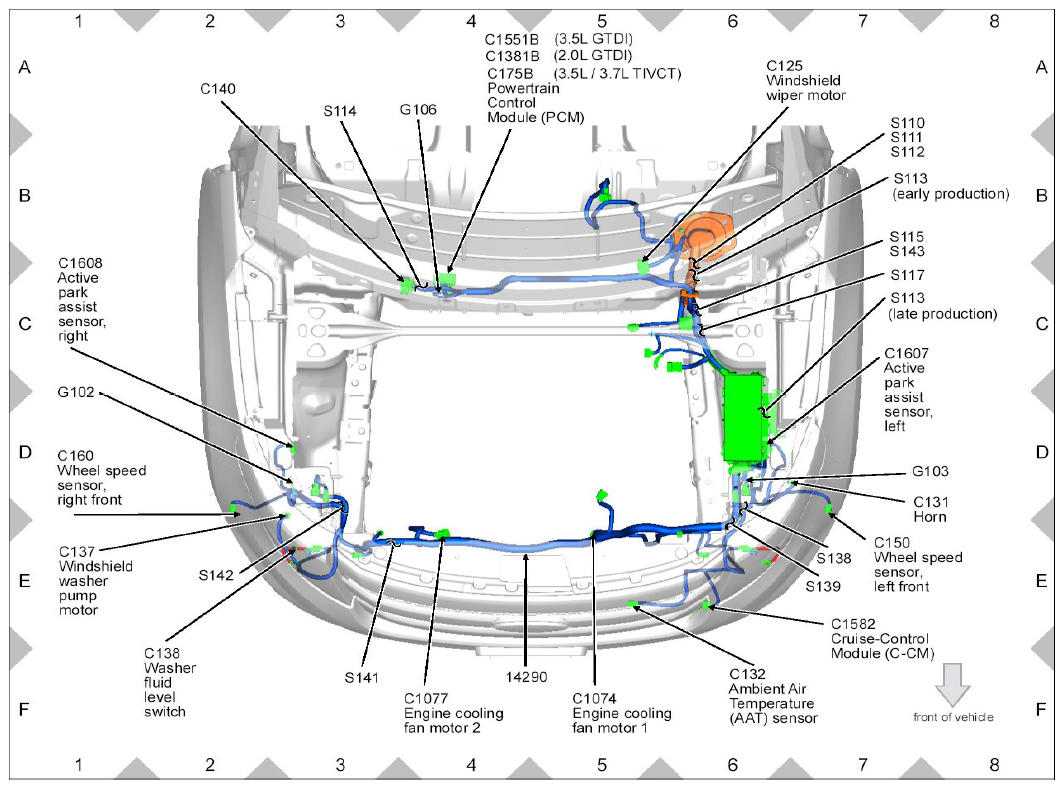

Fig 2: Engine Room Wiring Harness Connectors Location (2 Of 6)

G09012292

Courtesy of FORD MOTOR CO.

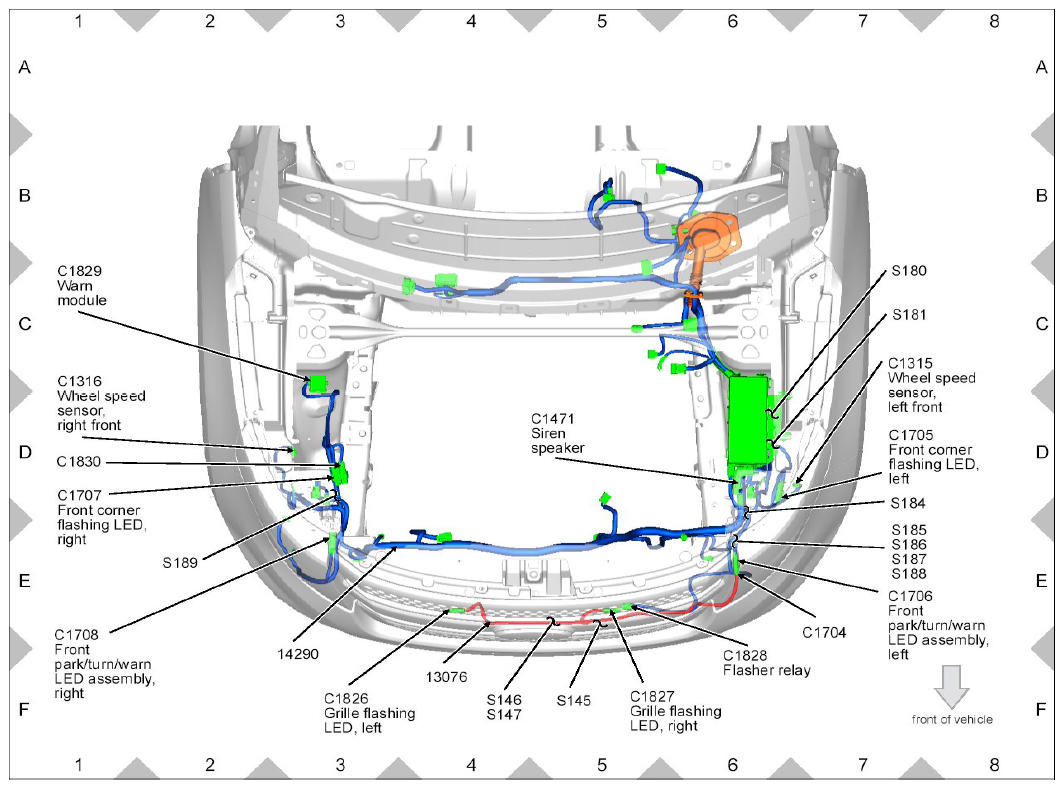

Fig 3: Engine Room Wiring Harness Connectors Location (3 Of 6)

G09012293

Courtesy of FORD MOTOR CO.

Fig 4: Engine Room Wiring Harness Connectors Location (4 Of 6)

G09012294

Courtesy of FORD MOTOR CO.

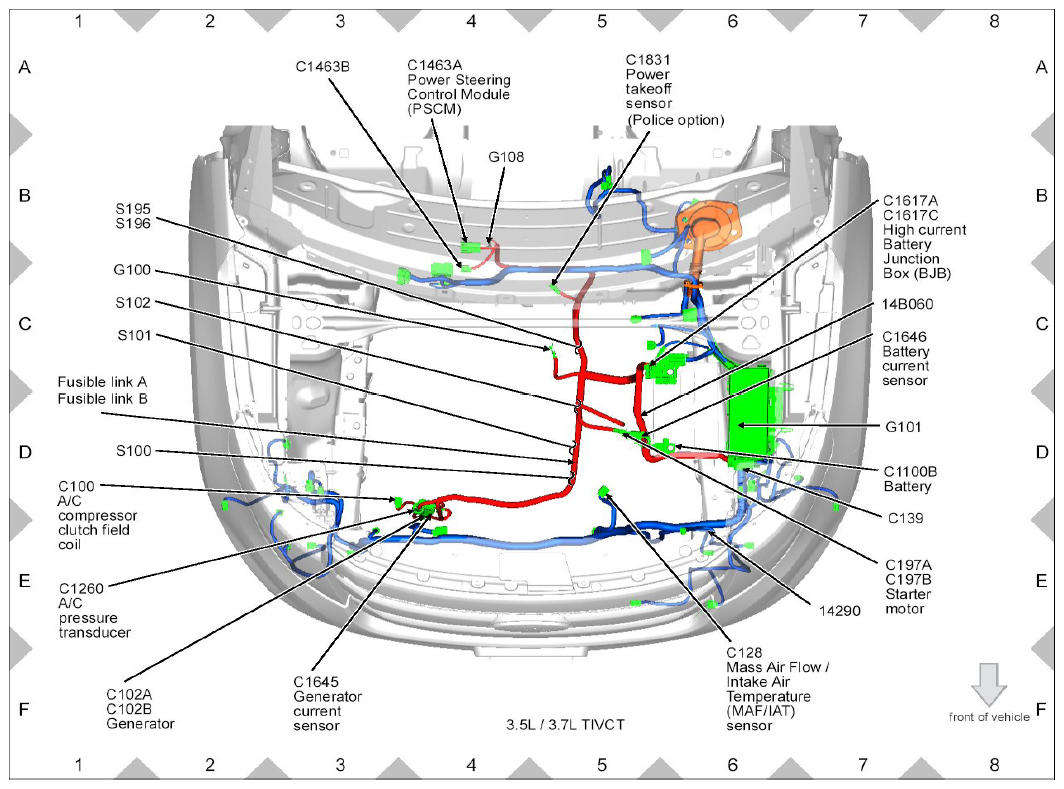

Fig 5: Engine Room Wiring Harness Connectors Location (5 Of 6)

G09012295

Courtesy of FORD MOTOR CO.

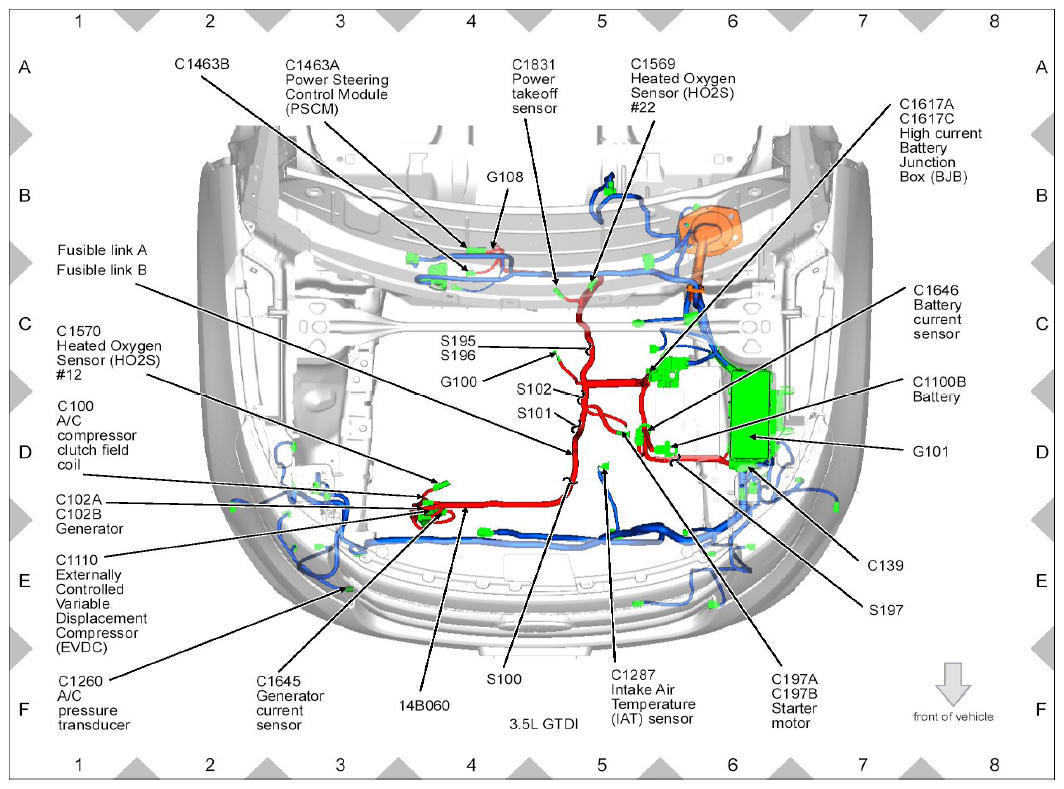

Fig 6: Engine Room Wiring Harness Connectors Location (6 Of 6)

G09012296

Courtesy of FORD MOTOR CO.

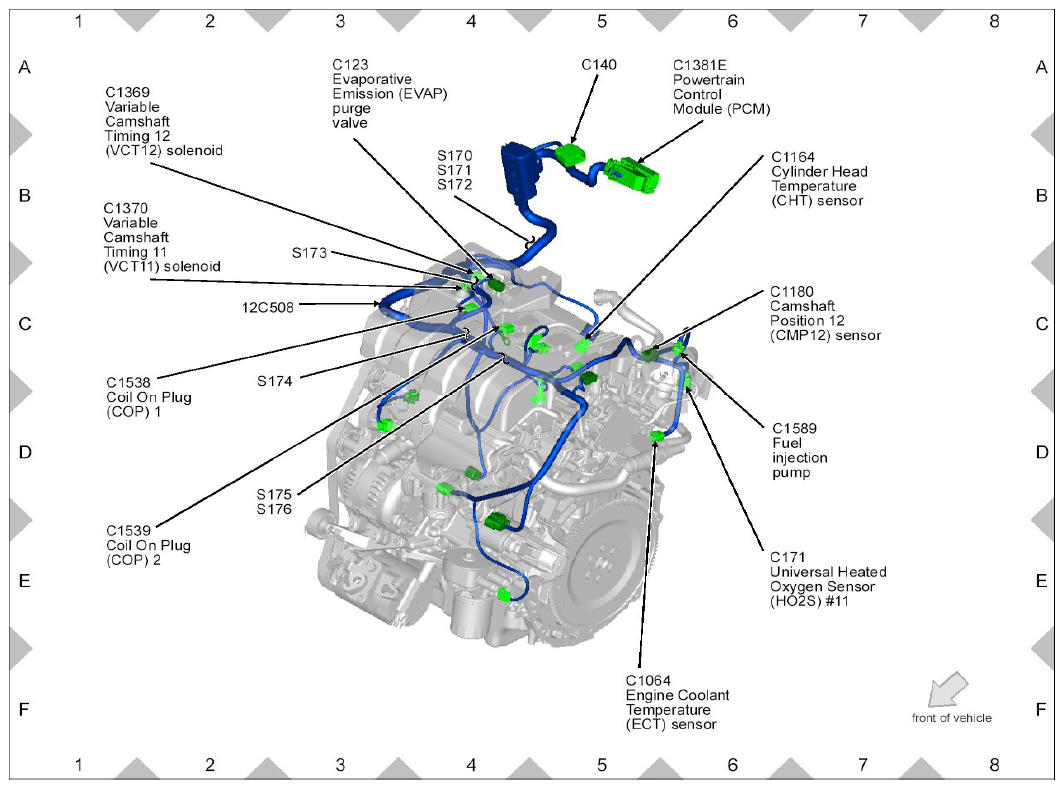

Fig 7: Engine Wiring Harness Connectors Location (1 Of 11)

G09012297

Courtesy of FORD MOTOR CO.

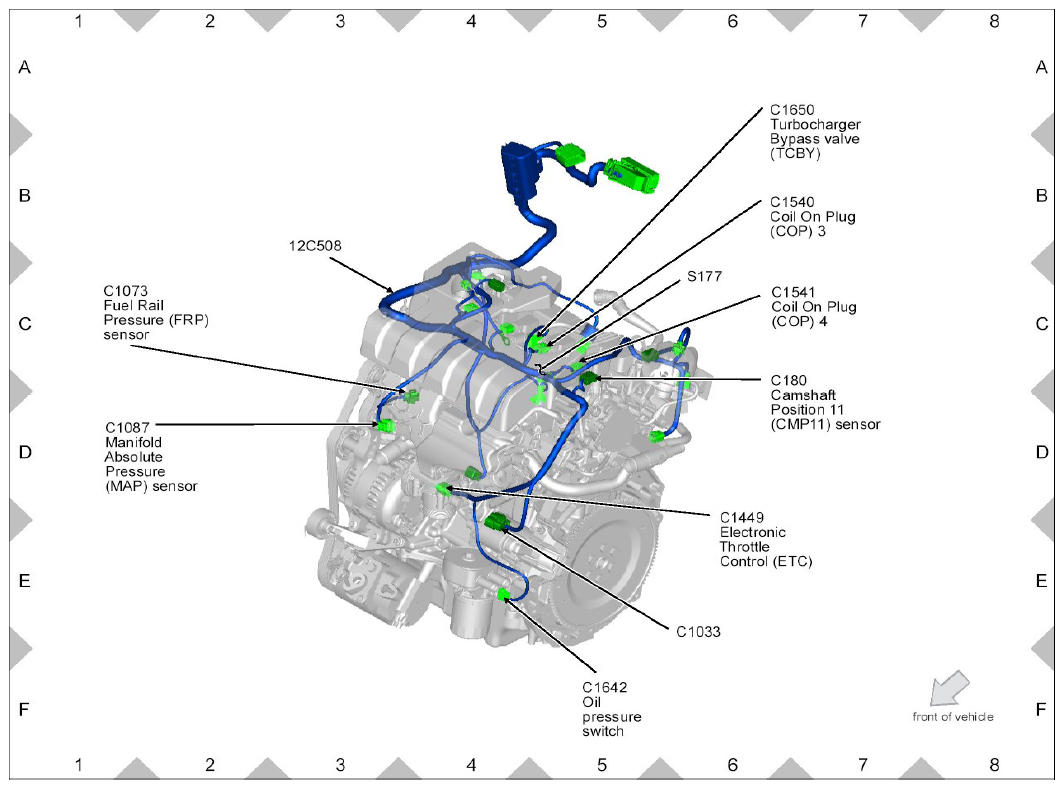

Fig 8: Engine Wiring Harness Connectors Location (2 Of 11)

G09012298

Courtesy of FORD MOTOR CO.

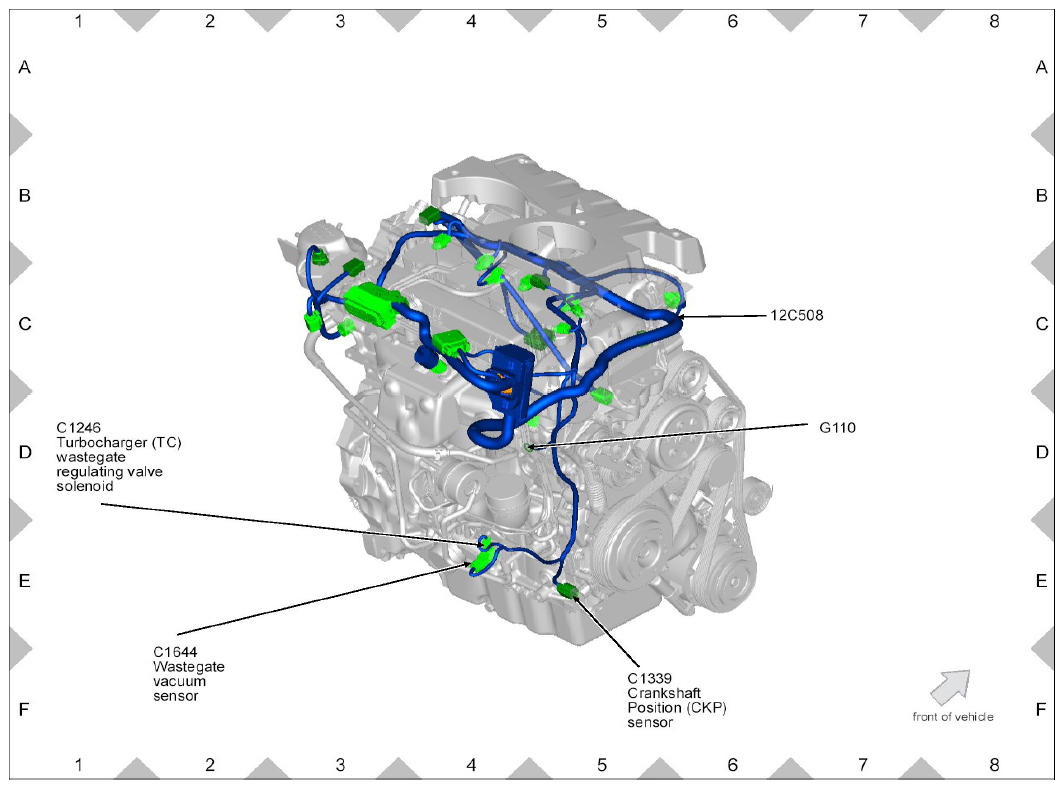

Fig 9: Engine Wiring Harness Connectors Location (3 Of 11)

G09012299

Courtesy of FORD MOTOR CO.

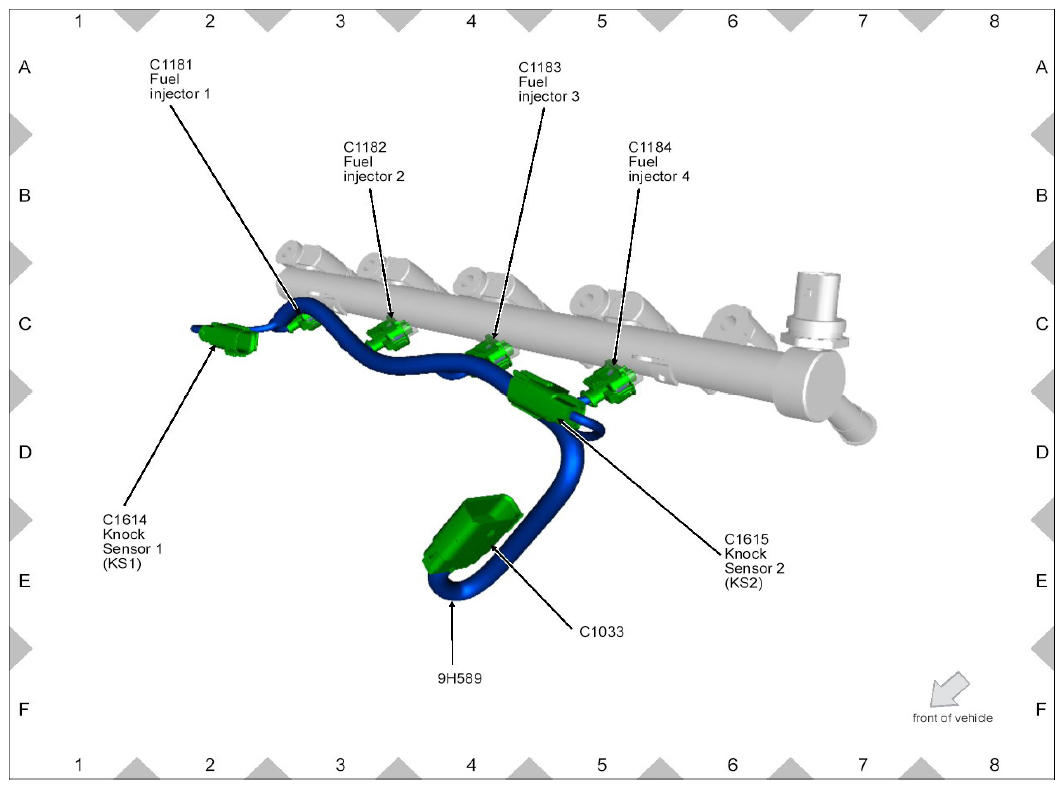

Fig 10: Engine Wiring Harness Connectors Location (4 Of 11)

G09012300

Courtesy of FORD MOTOR CO.

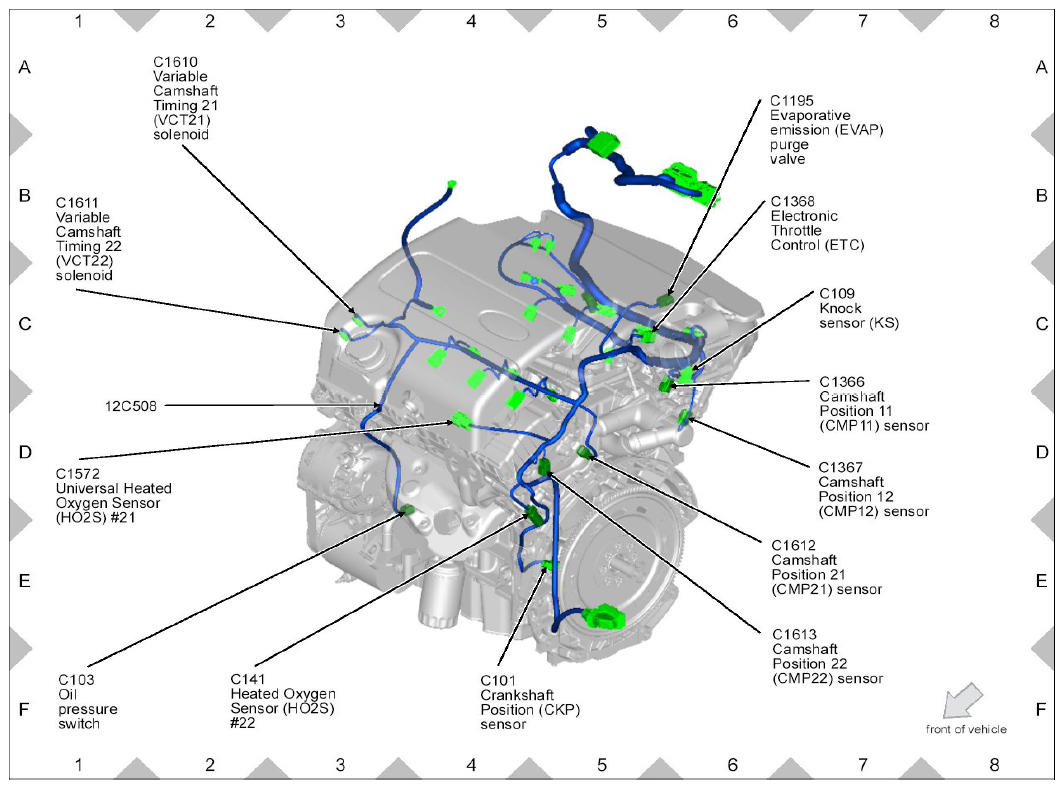

Fig 11: Engine Wiring Harness Connectors Location (5 Of 11)

G09012301

Courtesy of FORD MOTOR CO.

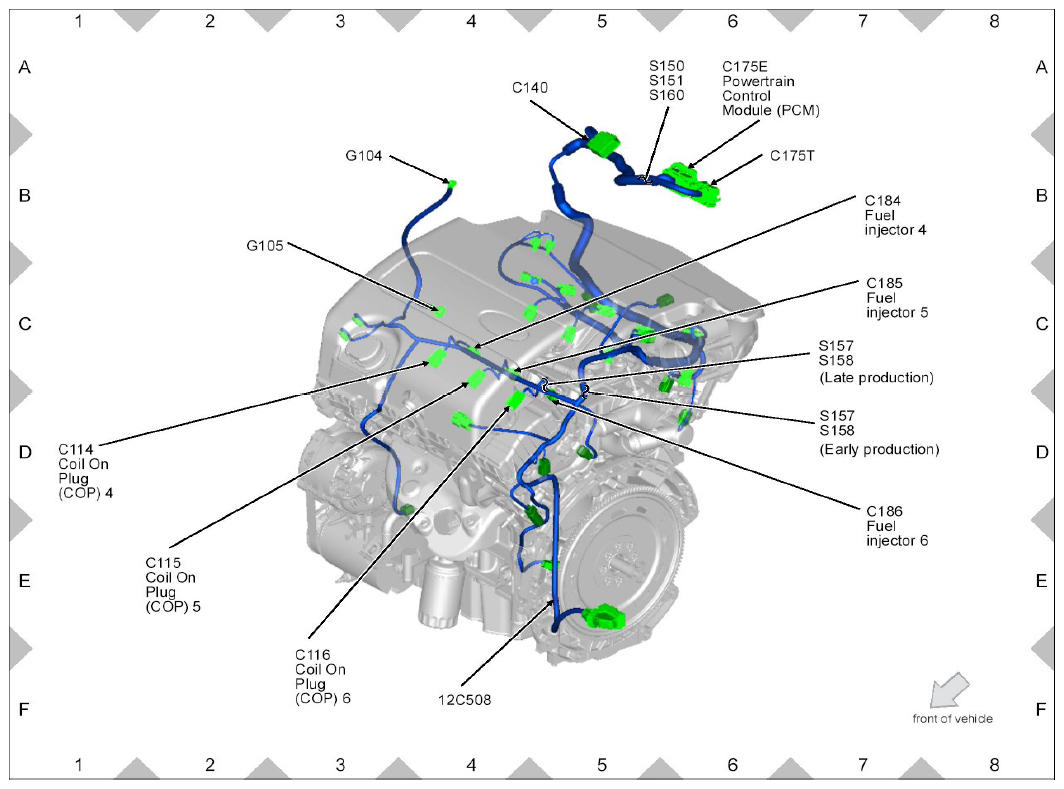

Fig 12: Engine Wiring Harness Connectors Location (6 Of 11)

G09012302

Courtesy of FORD MOTOR CO.

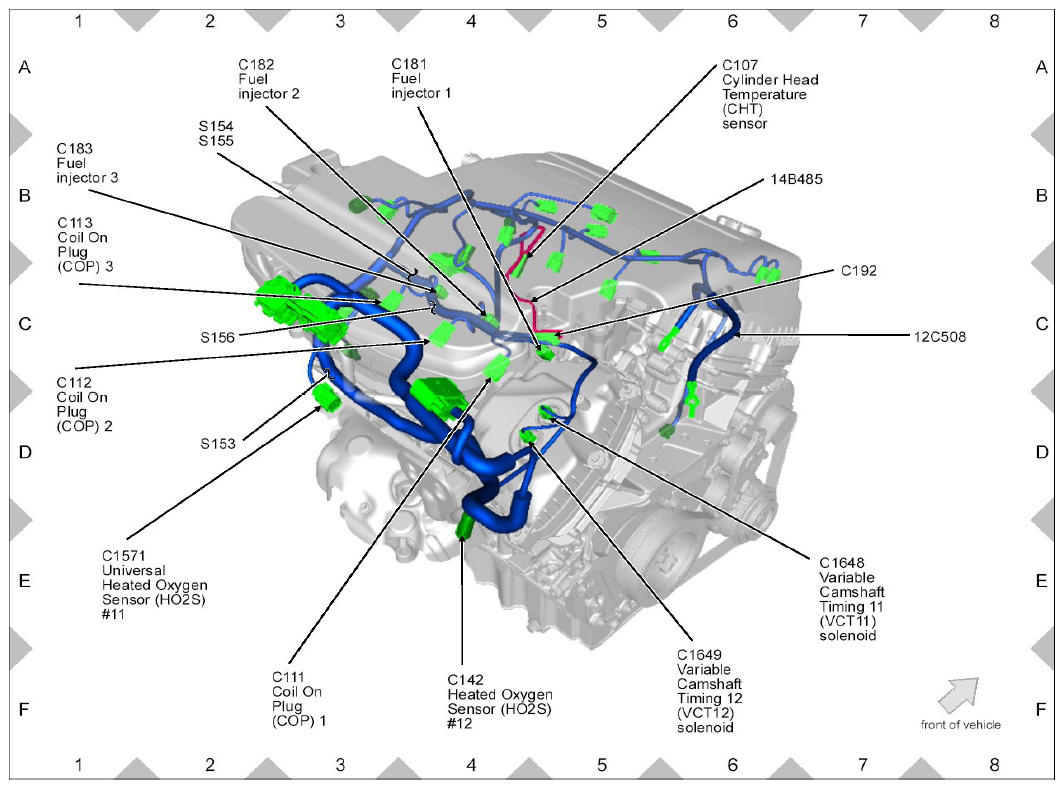

Fig 13: Engine Wiring Harness Connectors Location (7 Of 11)

G09012303

Courtesy of FORD MOTOR CO.

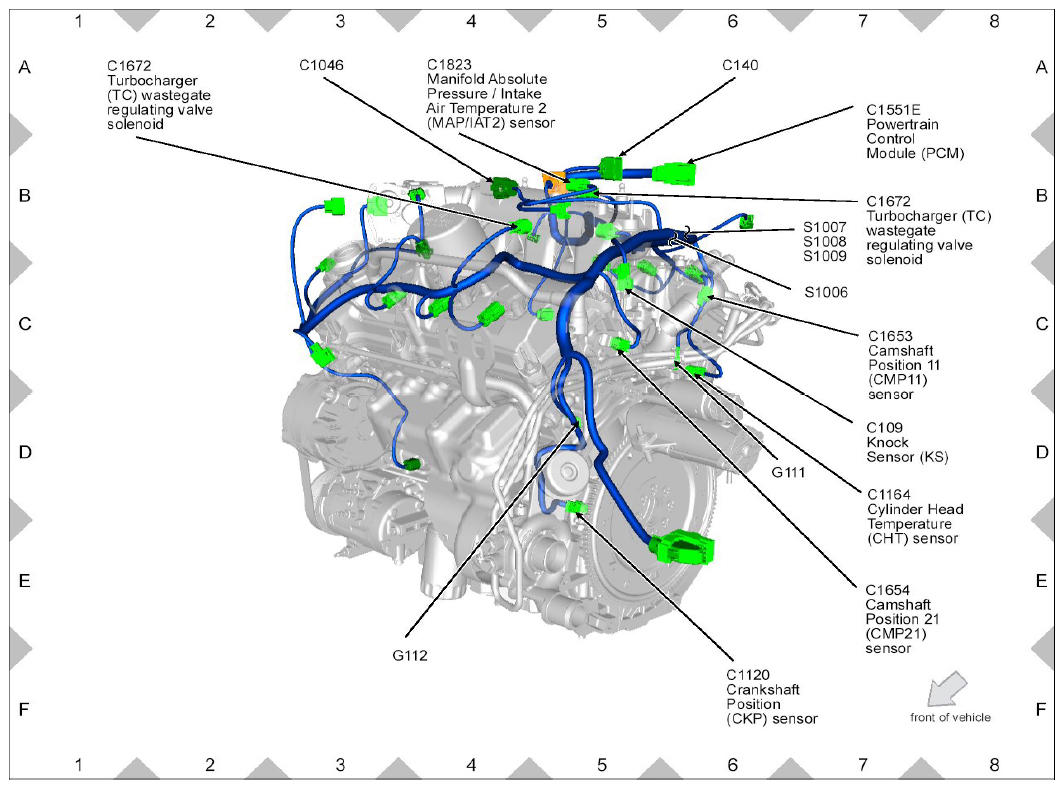

Fig 14: Engine Wiring Harness Connectors Location (8 Of 11)

G09012304

Courtesy of FORD MOTOR CO.

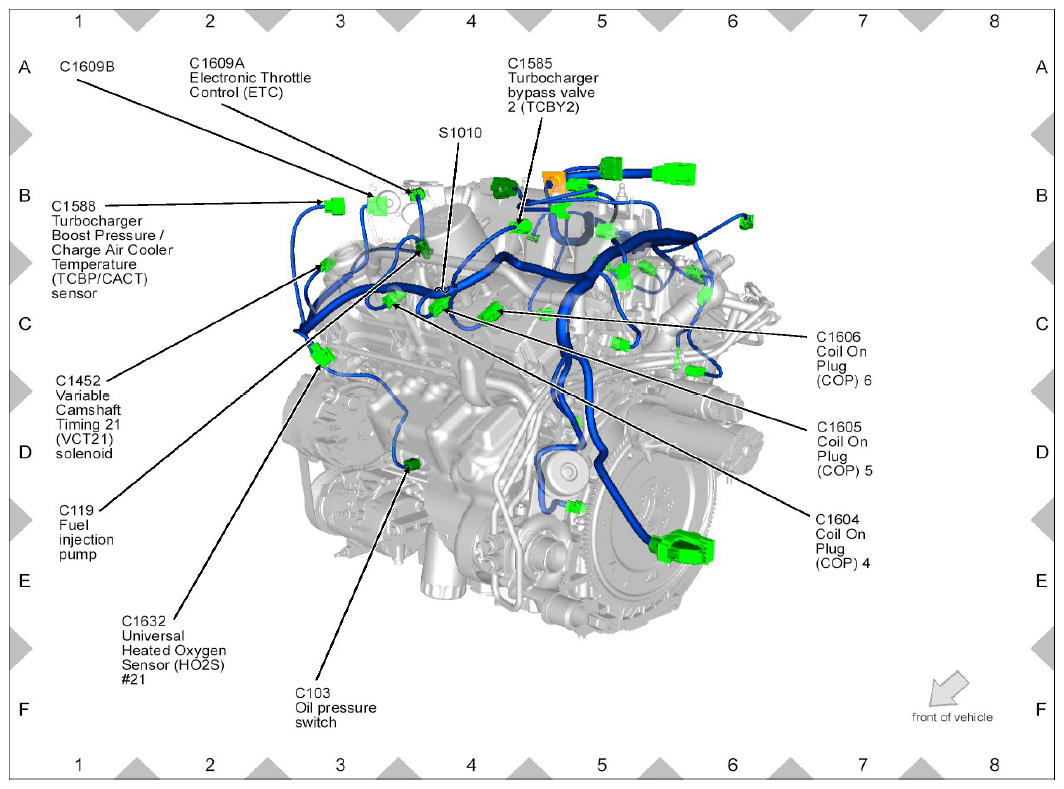

Fig 15: Engine Wiring Harness Connectors Location (9 Of 11)

G09012305

Courtesy of FORD MOTOR CO.

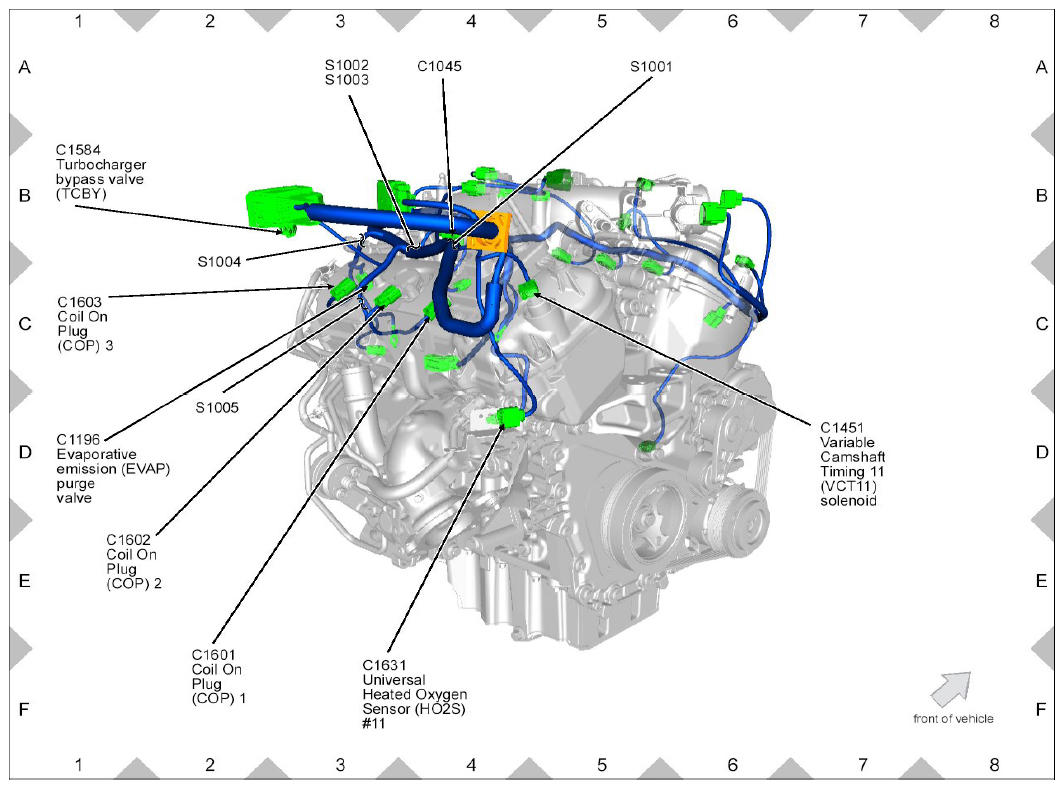

Fig 16: Engine Wiring Harness Connectors Location (10 Of 11)

G09012306

Courtesy of FORD MOTOR CO.

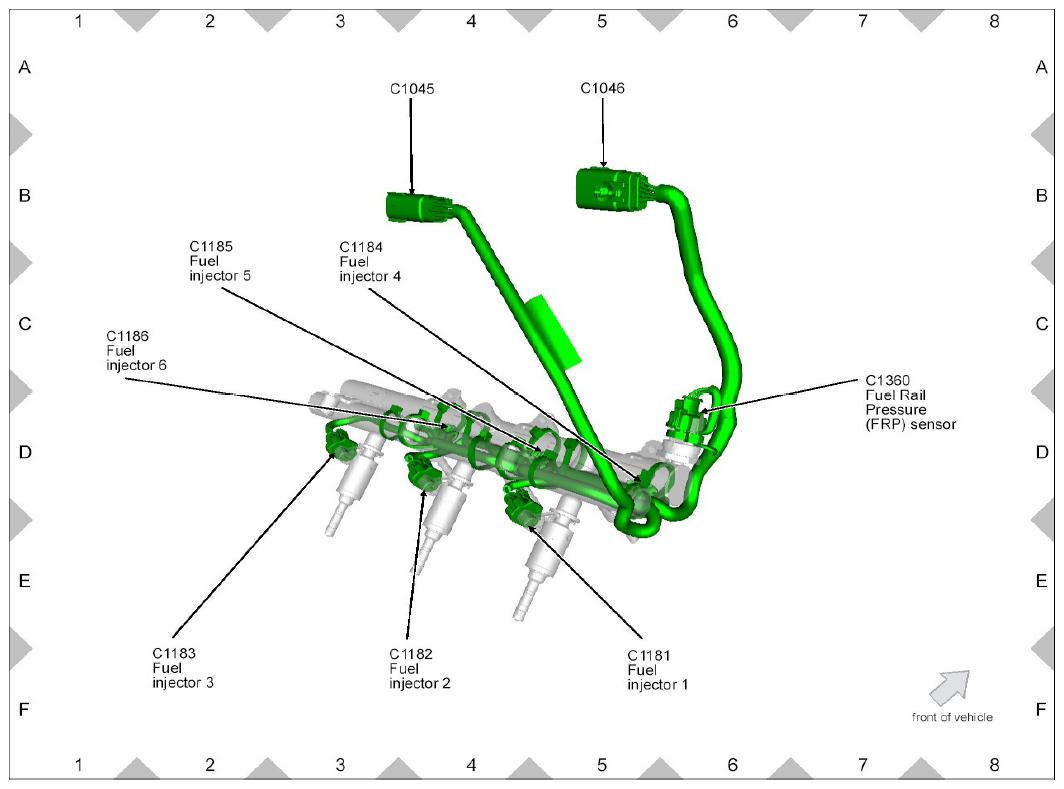

Fig 17: Engine Wiring Harness Connectors Location (11 Of 11)

G09012307

Courtesy of FORD MOTOR CO.

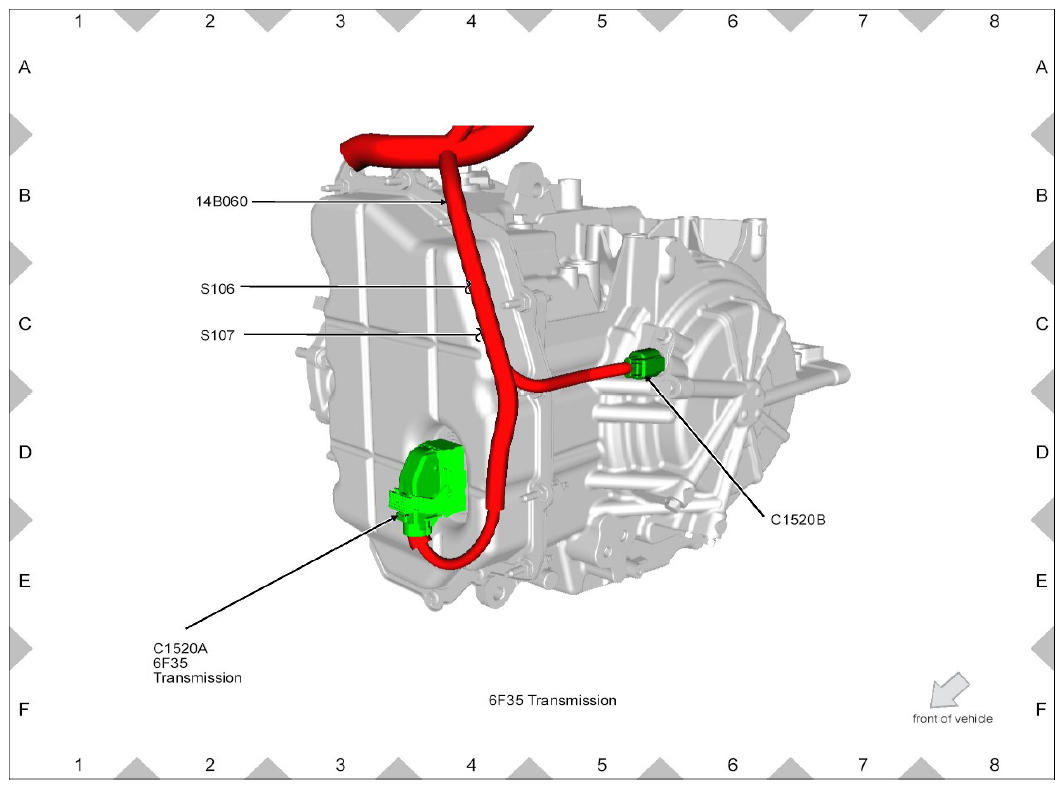

Fig 18: Transmission Wiring Harness Connectors Location (6F35)

G09012308

Courtesy of FORD MOTOR CO.

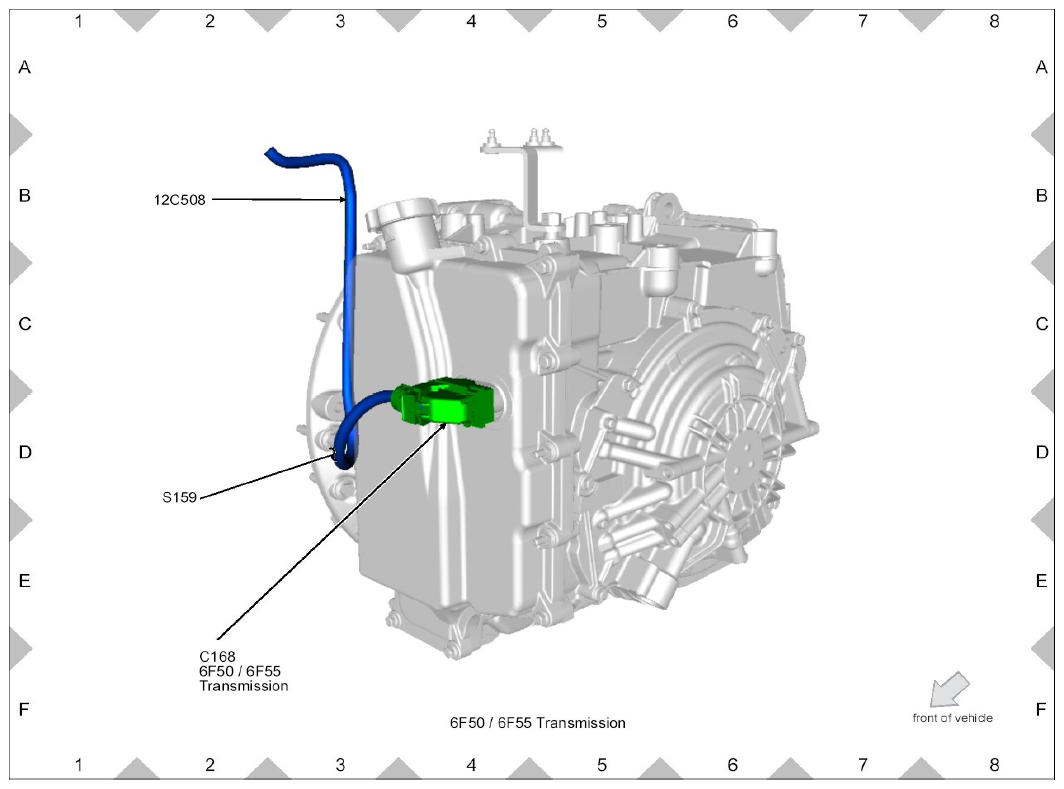

Fig 19: Transmission Wiring Harness Connectors Location (6F50/6F55)

G09012309

Courtesy of FORD MOTOR CO.

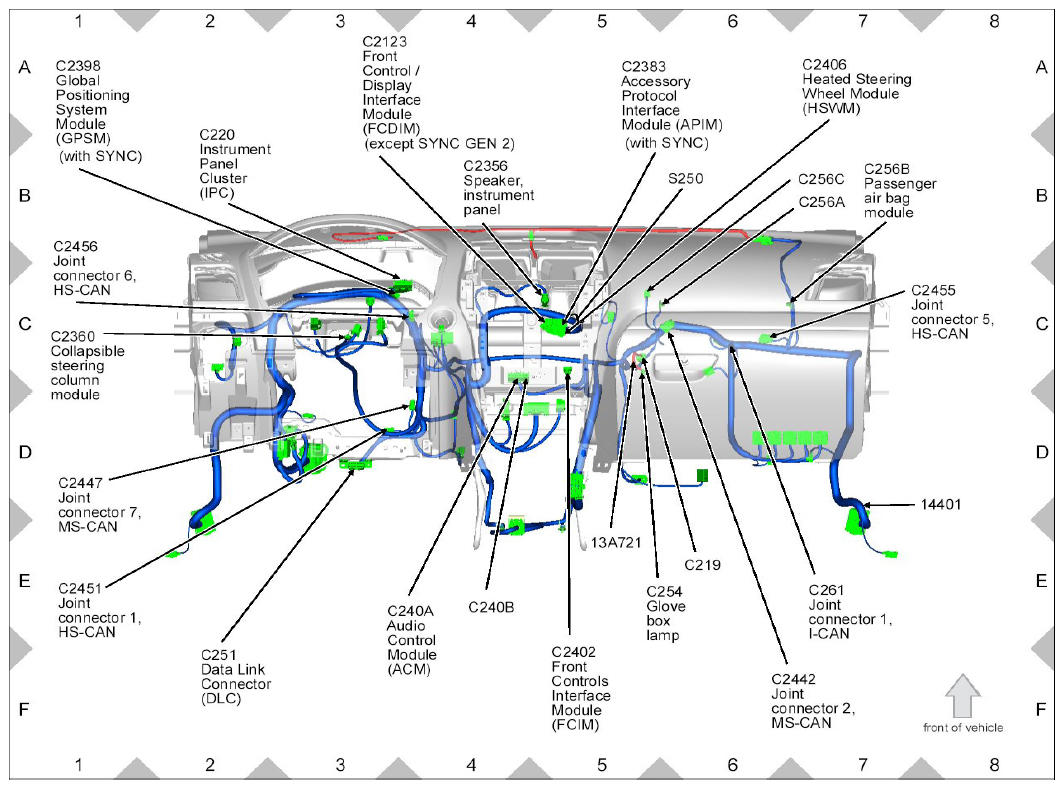

Fig 20: Instrument Panel Wiring Harness Connectors Location (1 Of 4)

G09012310

Courtesy of FORD MOTOR CO.

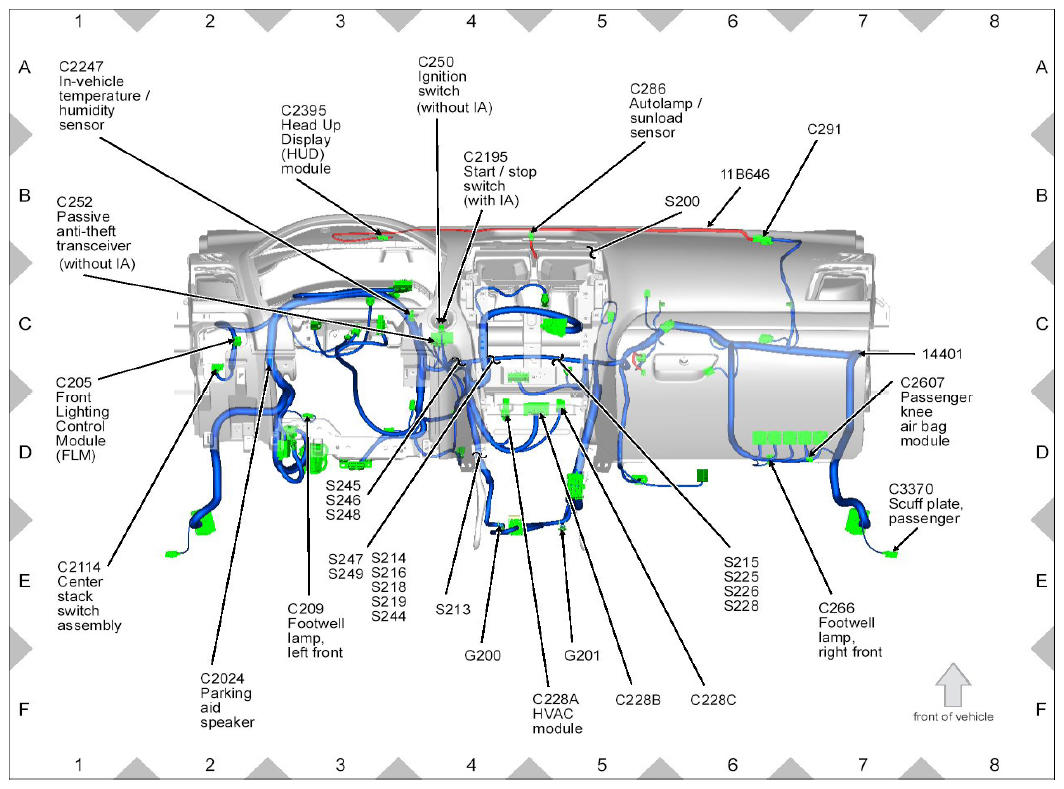

Fig 21: Instrument Panel Wiring Harness Connectors Location (2 Of 4)

G09012311

Courtesy of FORD MOTOR CO.

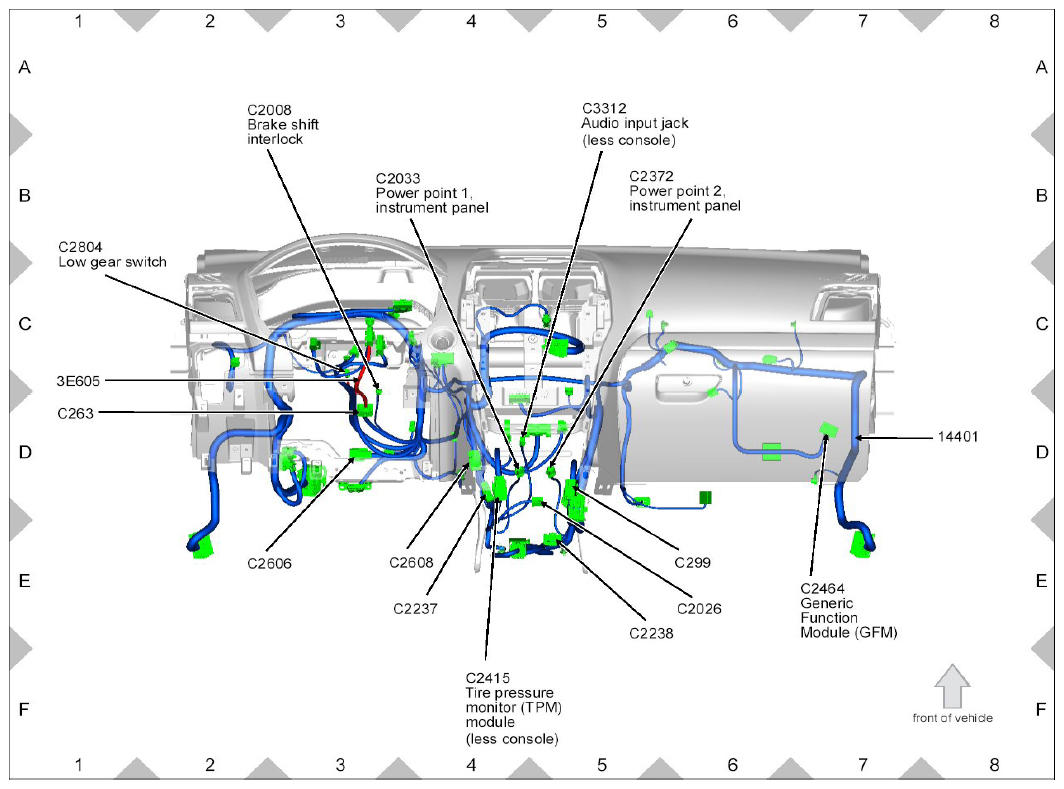

Fig 22: Instrument Panel Wiring Harness Connectors Location (3 Of 4)

G09012312

Courtesy of FORD MOTOR CO.

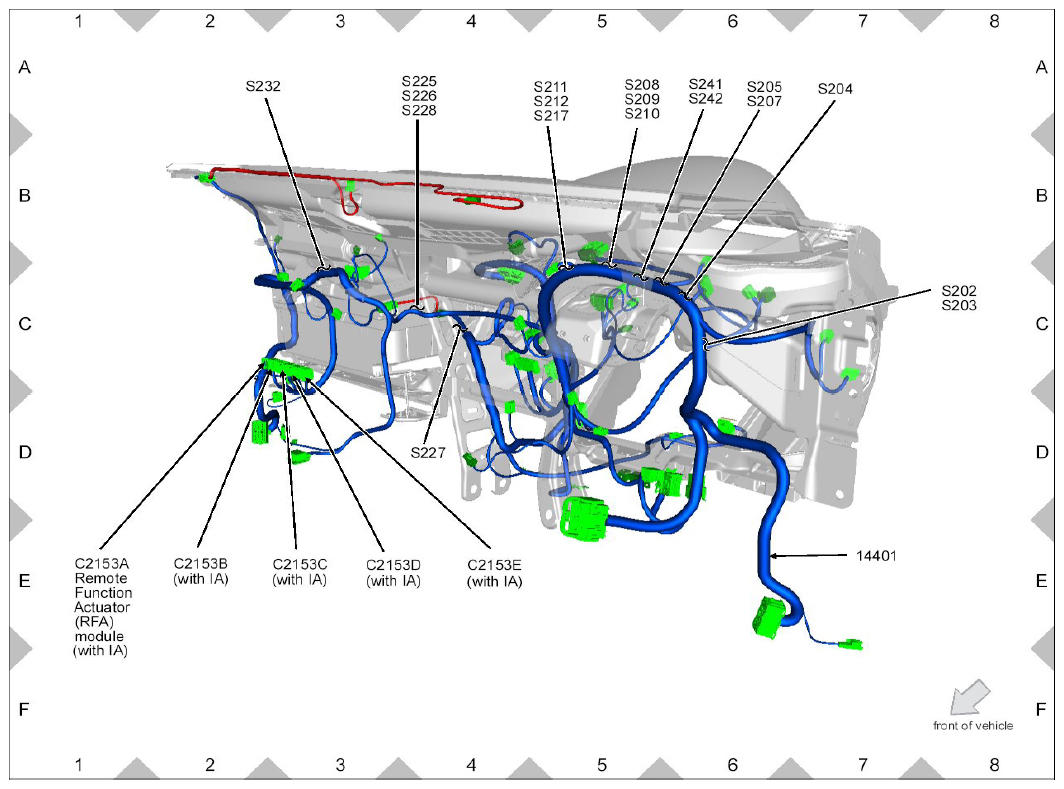

Fig 23: Instrument Panel Wiring Harness Connectors Location (4 Of 4)

G09012313

Courtesy of FORD MOTOR CO.

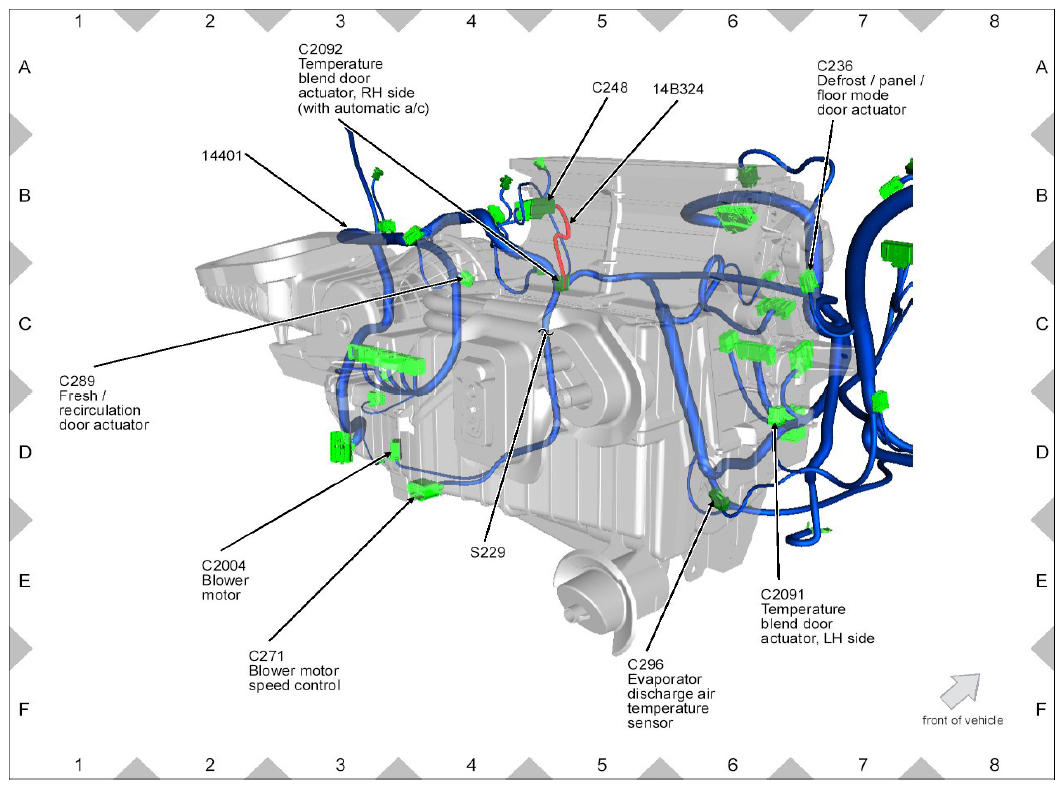

Fig 24: HVAC Wiring Harness Connectors Location (1 Of 2)

G09012314

Courtesy of FORD MOTOR CO.

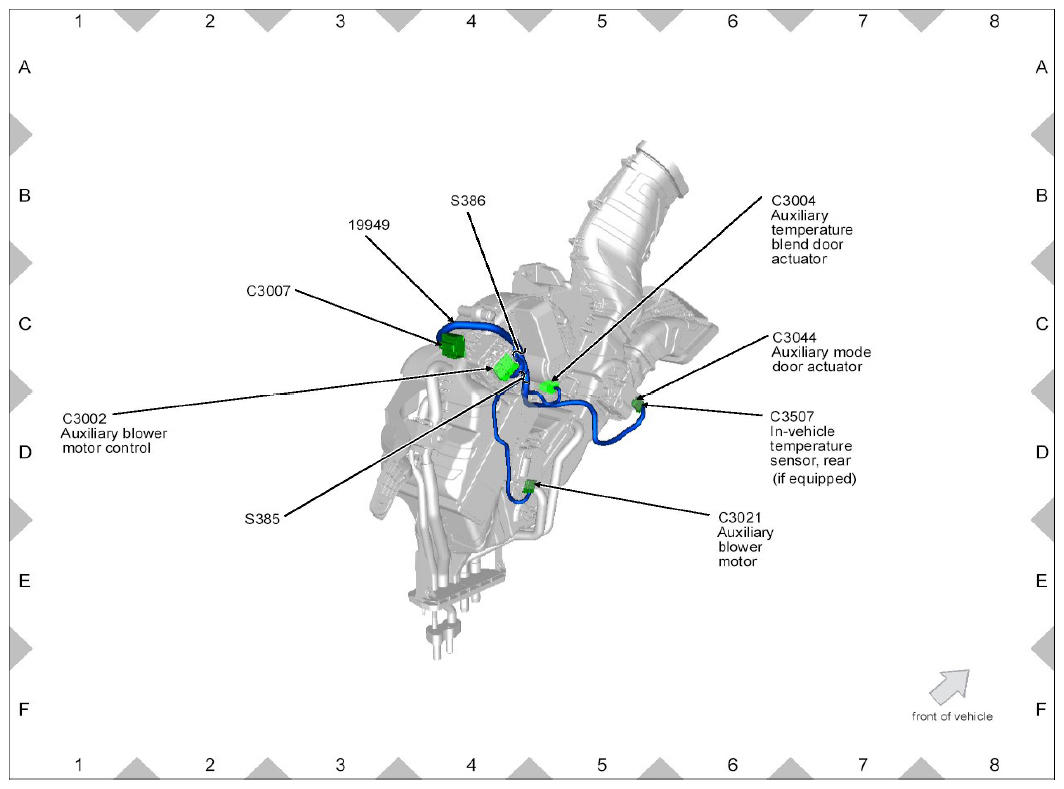

Fig 25: HVAC Wiring Harness Connectors Location (2 Of 2)

G09012315

Courtesy of FORD MOTOR CO.

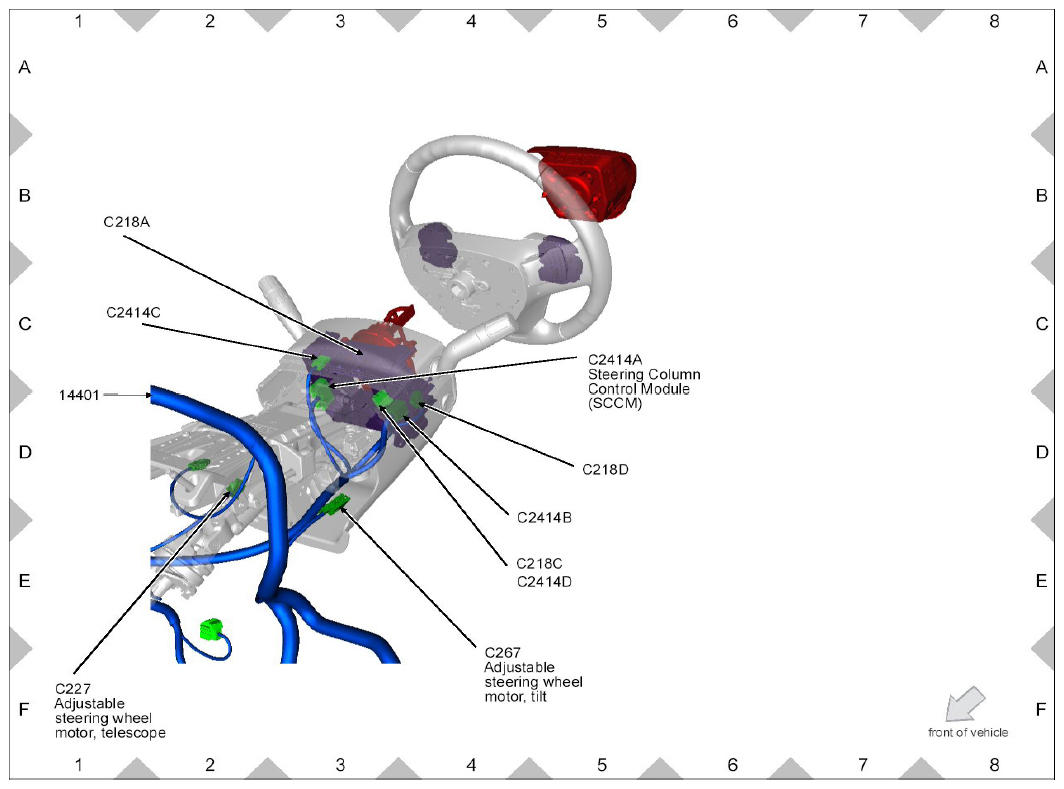

Fig 26: Steering Column Wiring Harness Connectors Location

G09012316

Courtesy of FORD MOTOR CO.

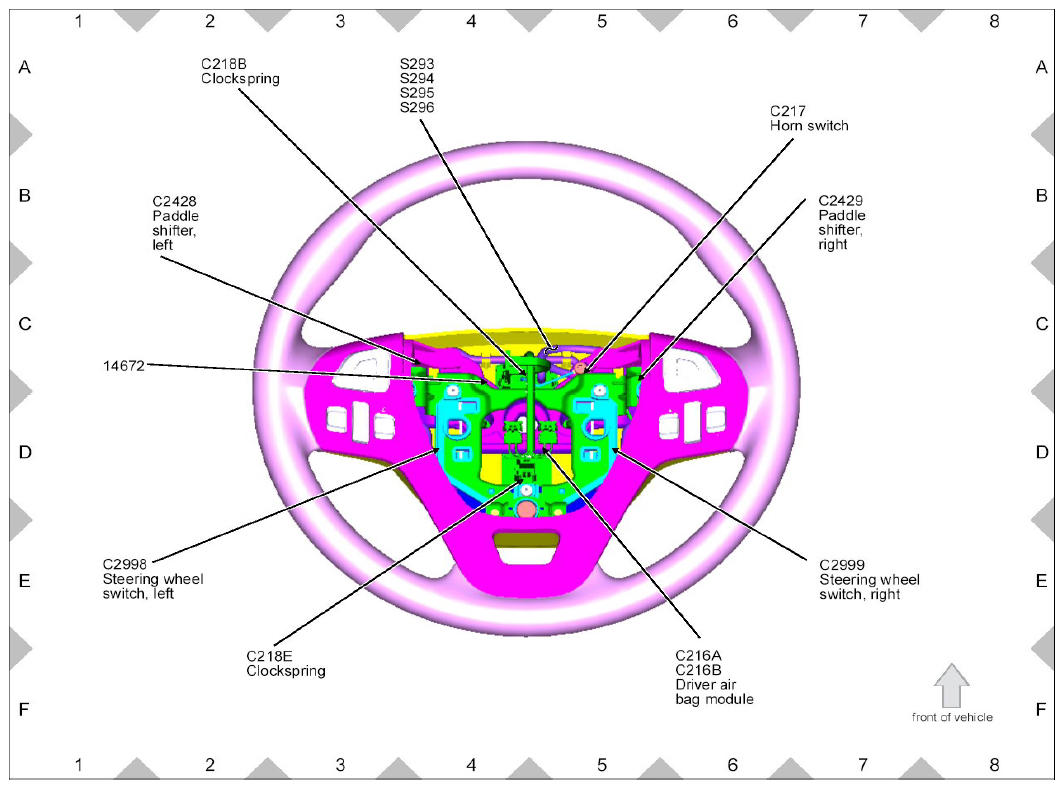

Fig 27: Steering Wheel Wiring Harness Connectors Location

G09012317

Courtesy of FORD MOTOR CO.

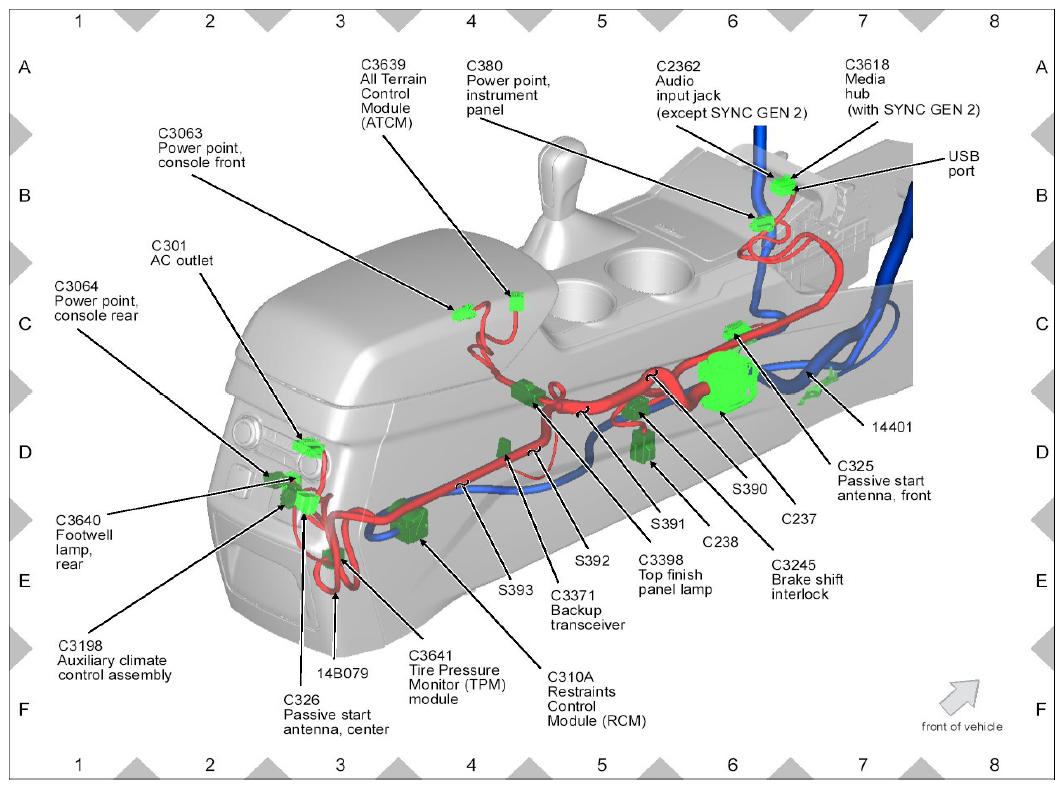

Fig 28: Console Wiring Harness Connectors Location (1 Of 2)

G09012318

Courtesy of FORD MOTOR CO.

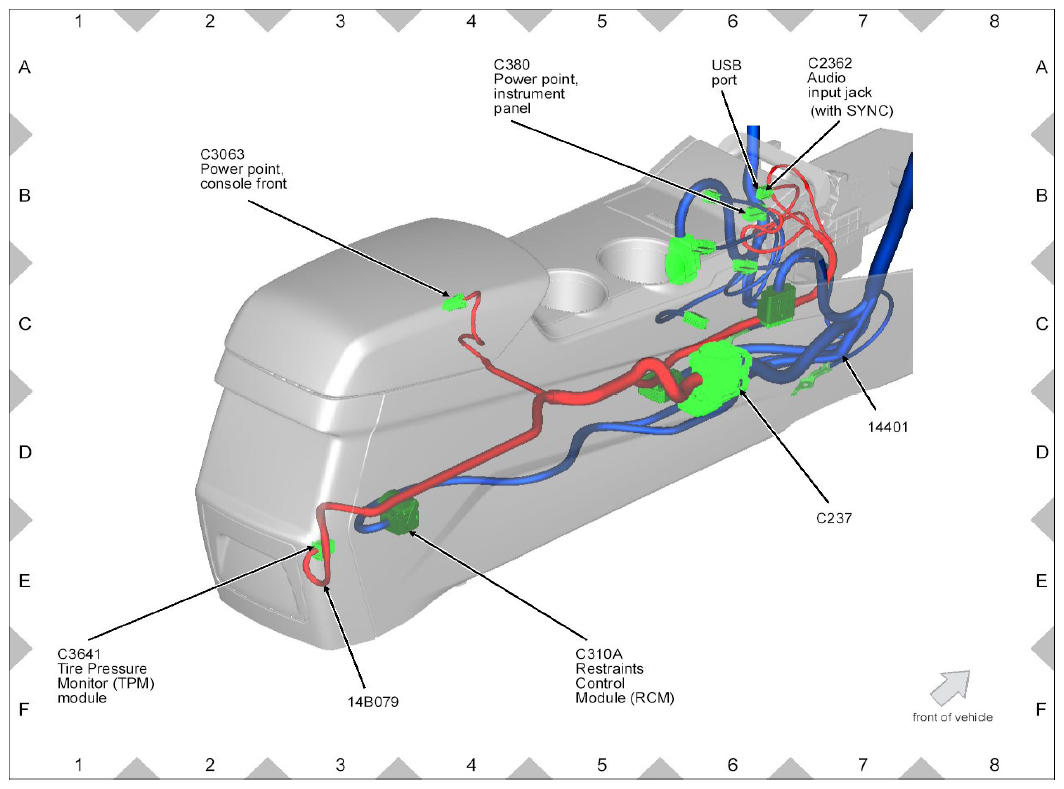

Fig 29: Console Wiring Harness Connectors Location (2 Of 2)

G09012319

Courtesy of FORD MOTOR CO.

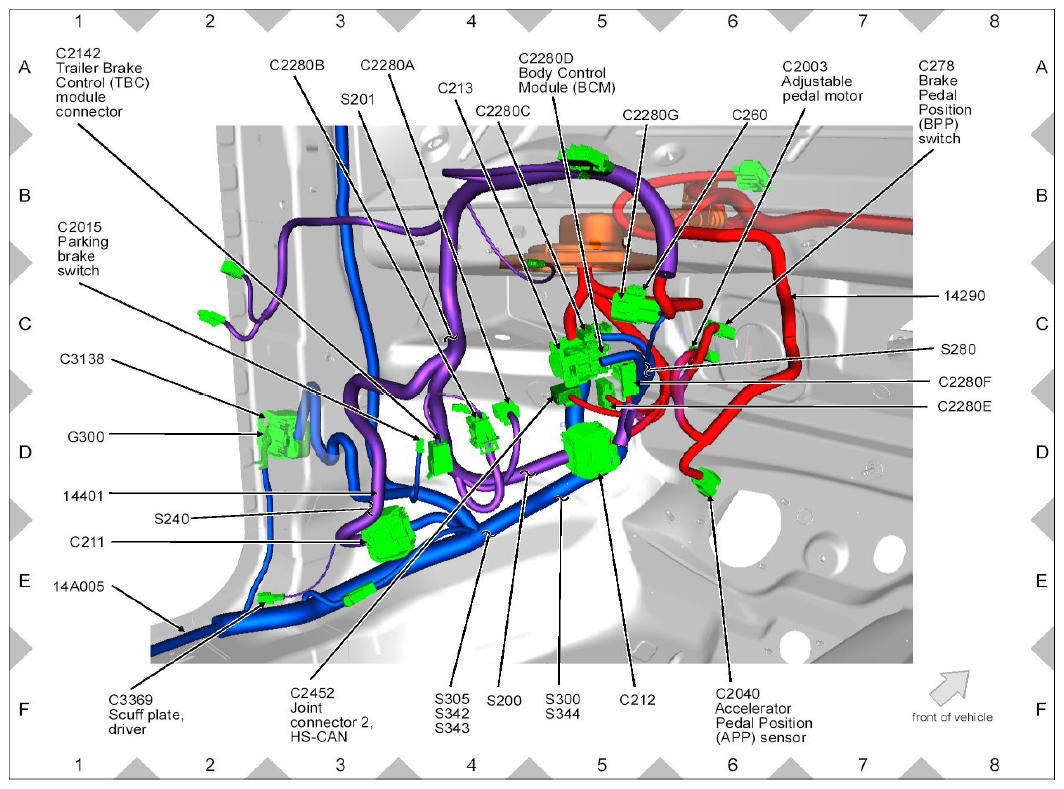

Fig 30: Left Front Floor Wiring Harness Connectors Location (1 Of 3)

G09012320

Courtesy of FORD MOTOR CO.

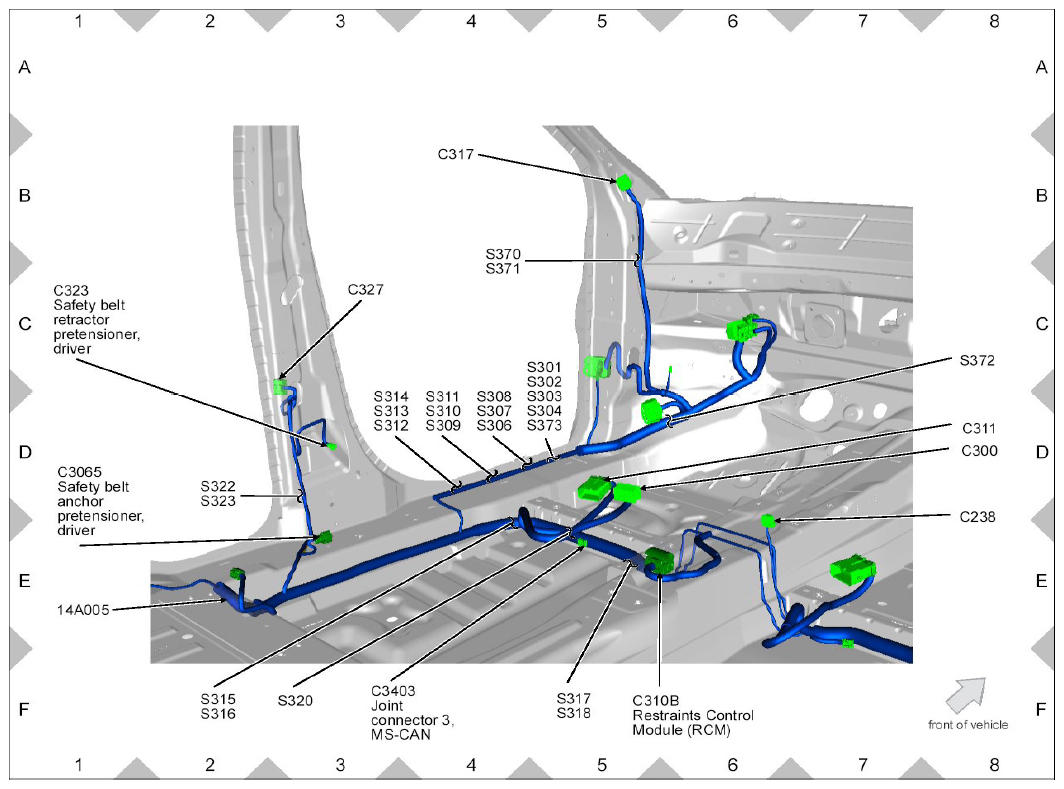

Fig 31: Left Front Floor Wiring Harness Connectors Location (2 Of 3)

G09012321

Courtesy of FORD MOTOR CO.

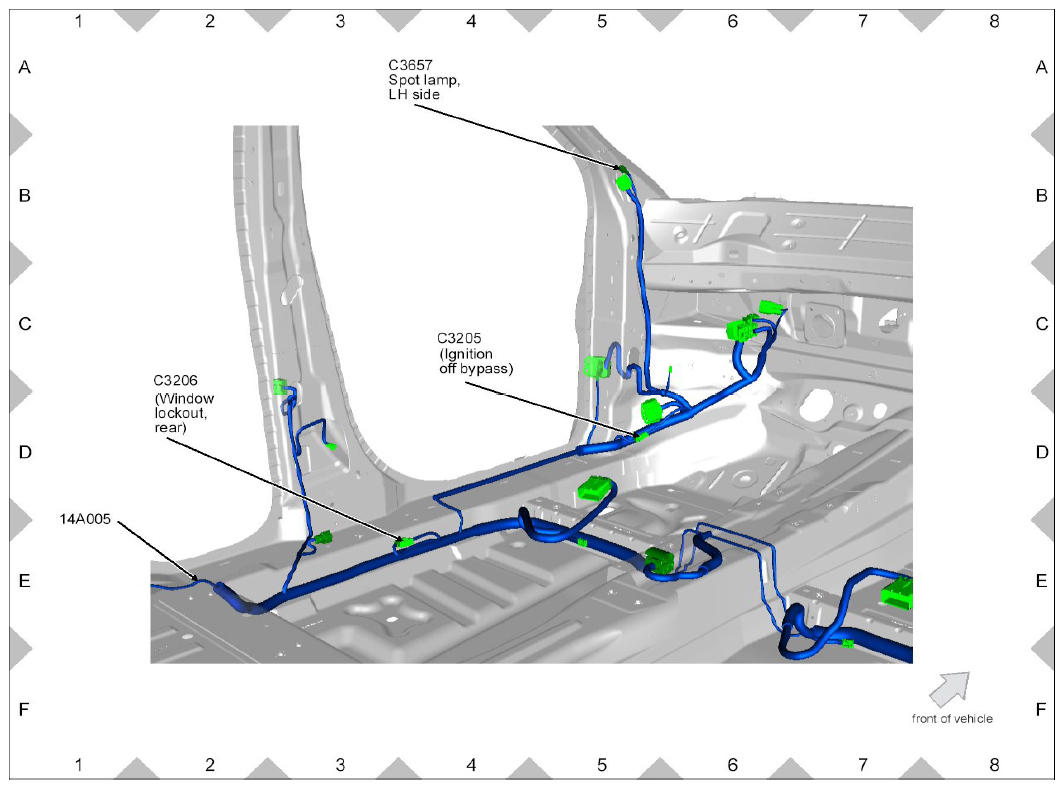

Fig 32: Left Front Floor Wiring Harness Connectors Location (3 Of 3)

G09012322

Courtesy of FORD MOTOR CO.

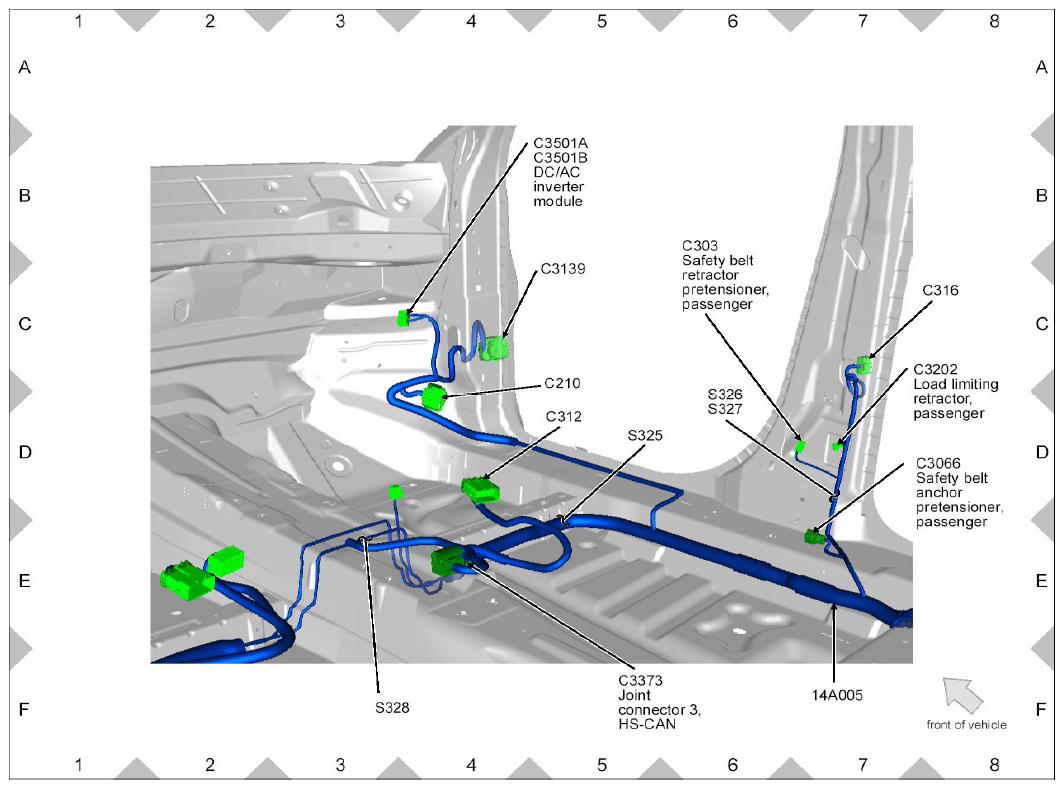

Fig 33: Right Front Floor Wiring Harness Connectors Location (1 Of 2)

G09012323

Courtesy of FORD MOTOR CO.

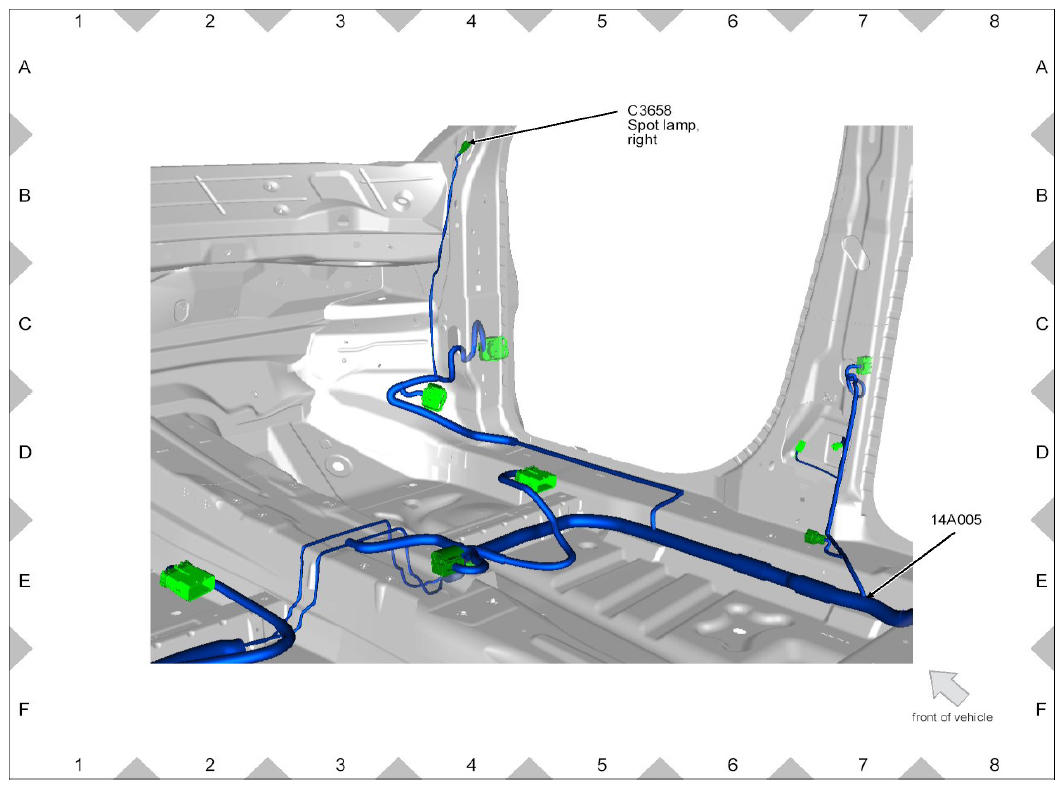

Fig 34: Right Front Floor Wiring Harness Connectors Location (2 Of 2)

G09012324

Courtesy of FORD MOTOR CO.

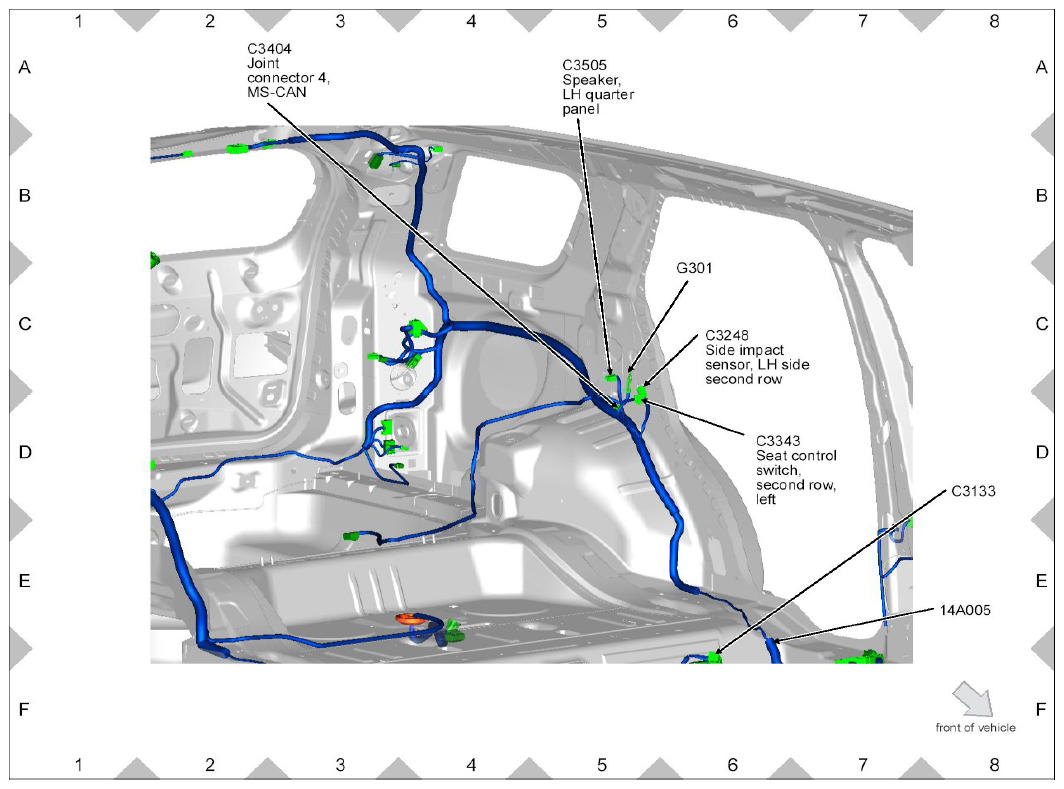

Fig 35: Left Rear Floor Wiring Harness Connectors Location (1 Of 3)

G09012325

Courtesy of FORD MOTOR CO.

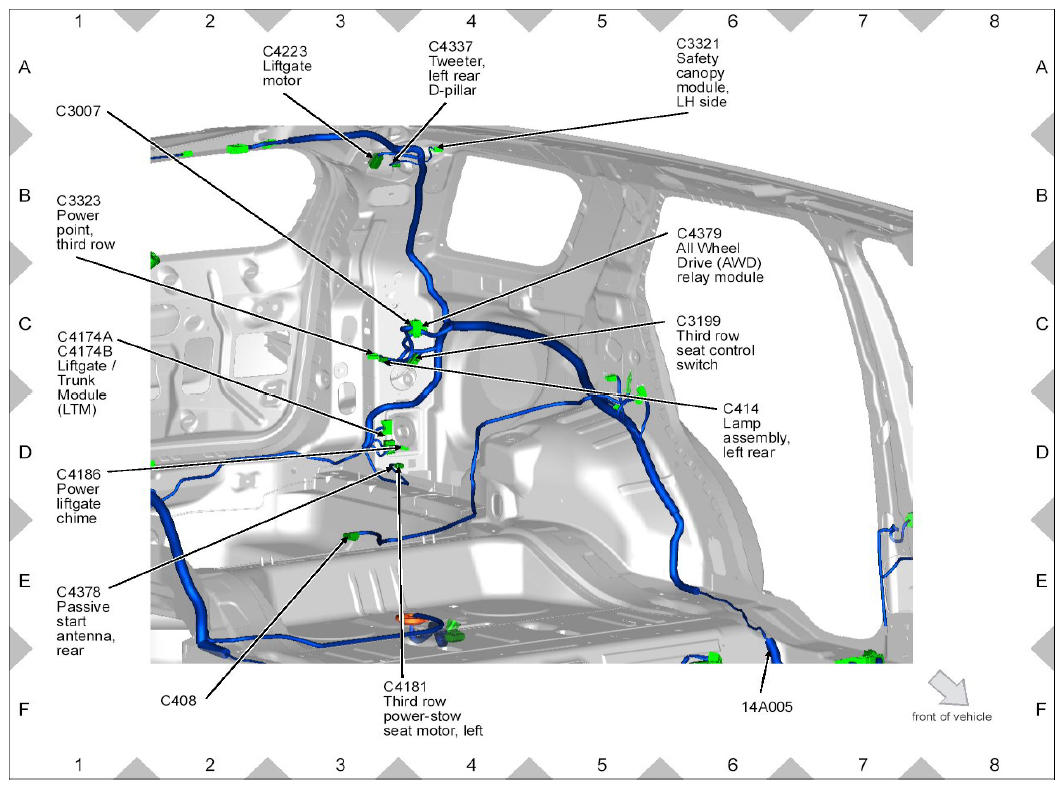

Fig 36: Left Rear Floor Wiring Harness Connectors Location (2 Of 3)

G09012326

Courtesy of FORD MOTOR CO.

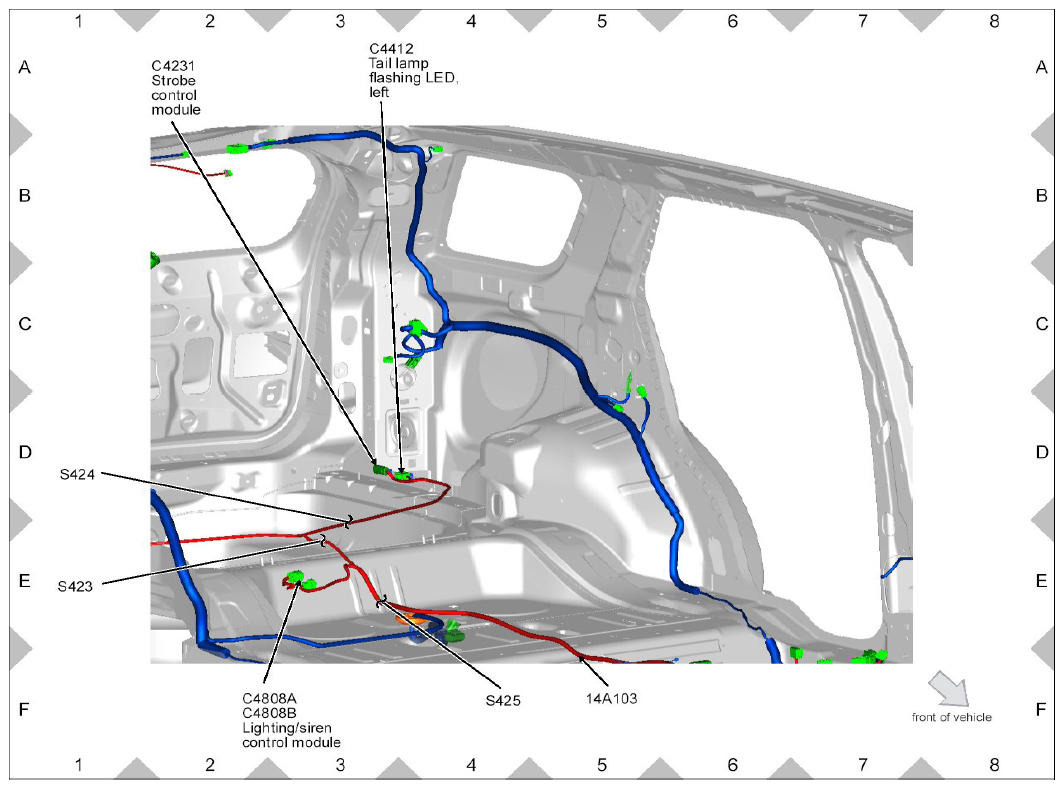

Fig 37: Left Rear Floor Wiring Harness Connectors Location (3 Of 3)

G09012327

Courtesy of FORD MOTOR CO.

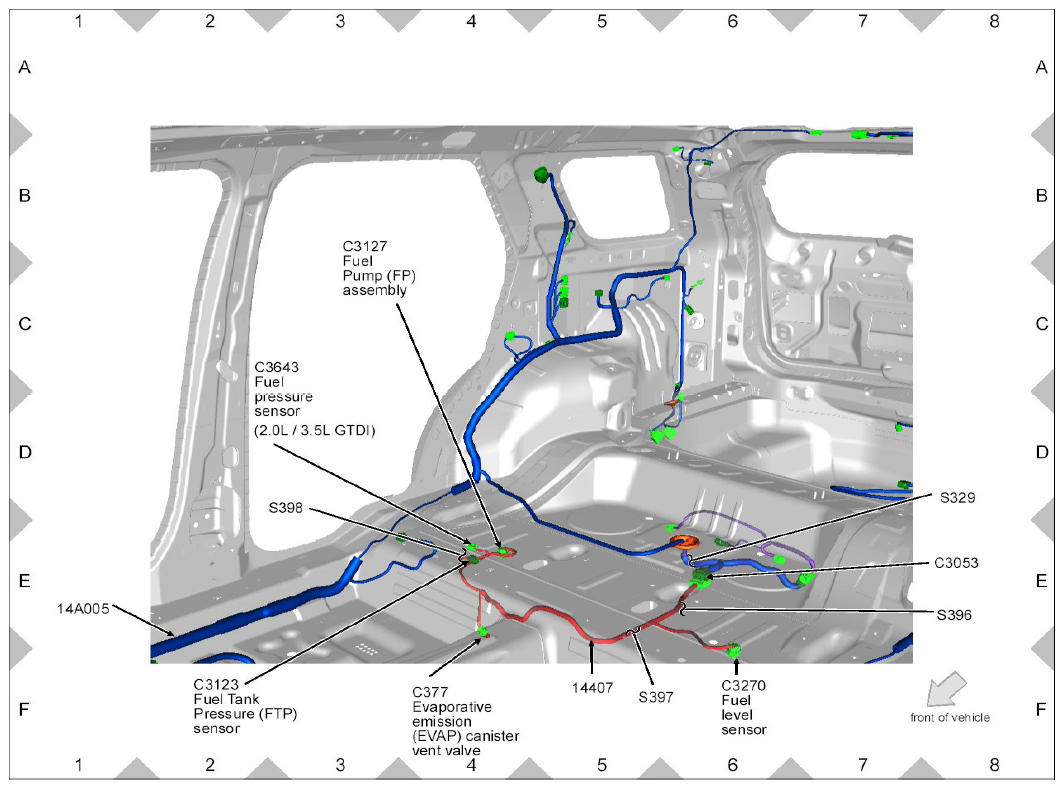

Fig 38: Right Rear Floor Wiring Harness Connectors Location (1 Of 4)

G09012328

Courtesy of FORD MOTOR CO.

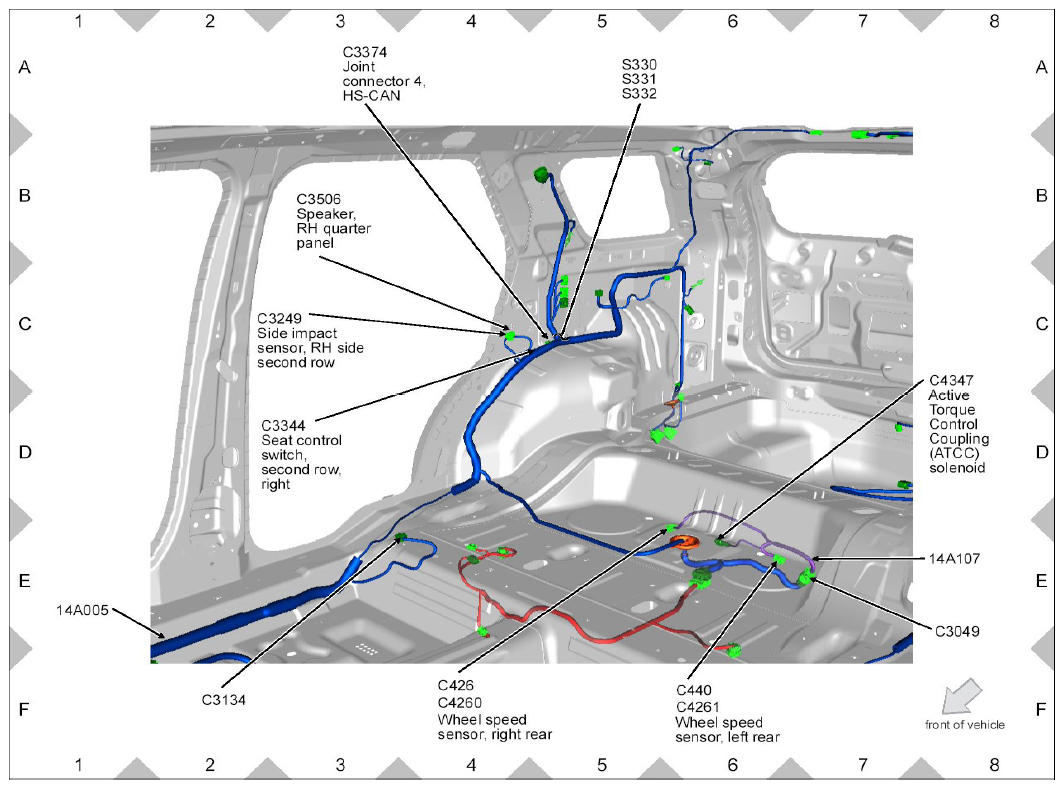

Fig 39: Right Rear Floor Wiring Harness Connectors Location (2 Of 4)

G09012329

Courtesy of FORD MOTOR CO.

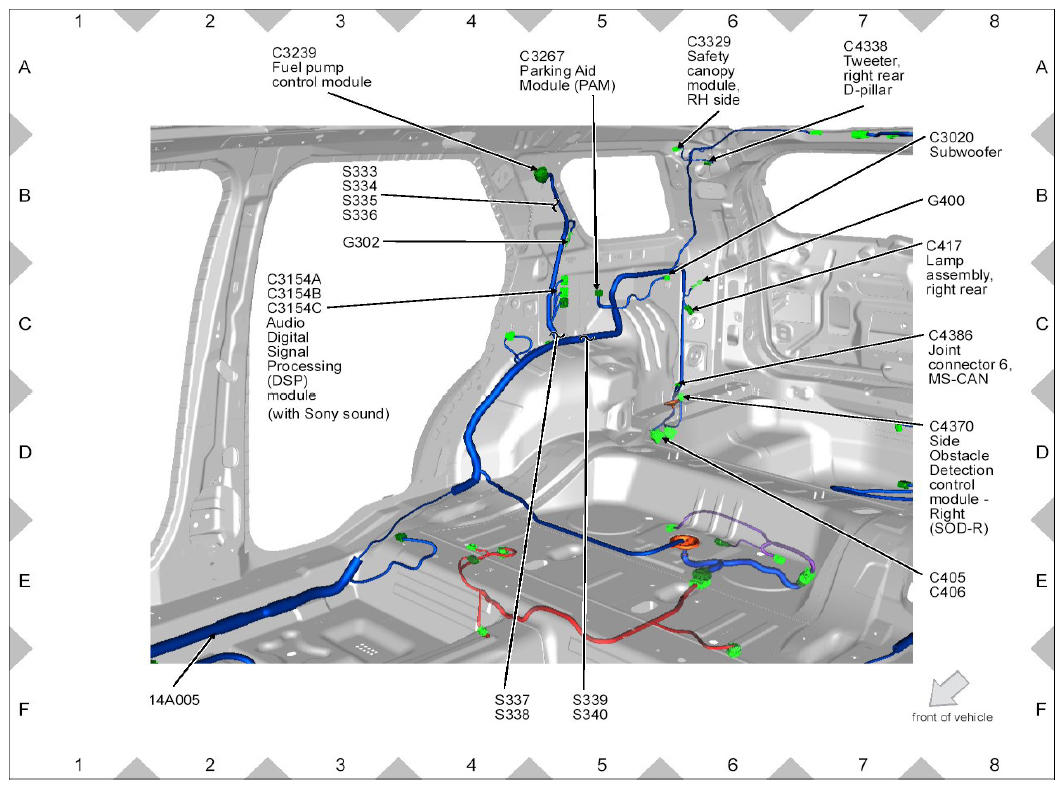

Fig 40: Right Rear Floor Wiring Harness Connectors Location (3 Of 4)

G09012330

Courtesy of FORD MOTOR CO.

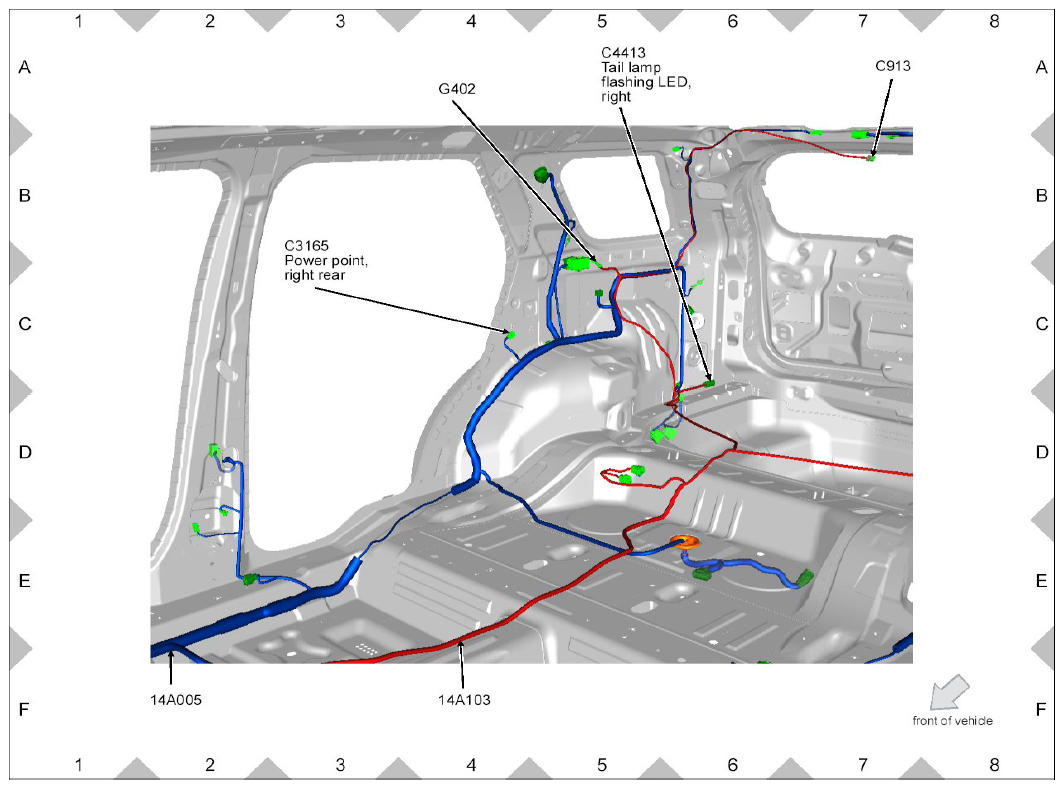

Fig 41: Right Rear Floor Wiring Harness Connectors Location (4 Of 4)

G09012331

Courtesy of FORD MOTOR CO.

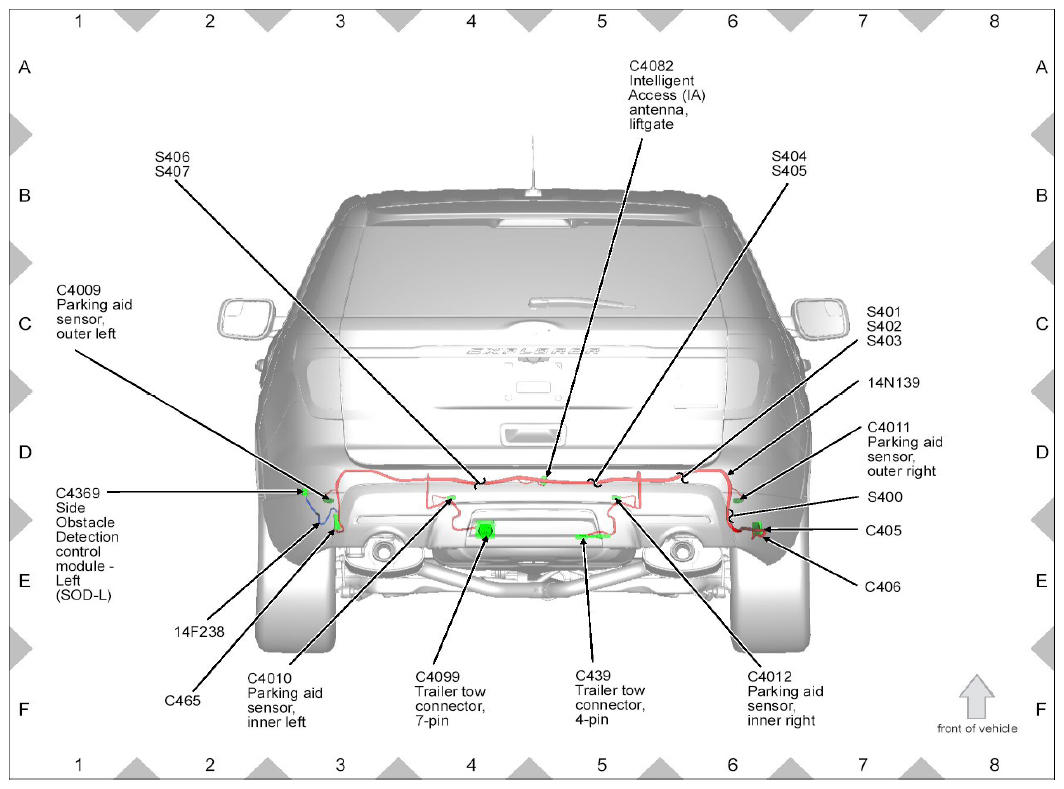

Fig 42: Rear Wiring Harness Connectors Location

G09012332

Courtesy of FORD MOTOR CO.

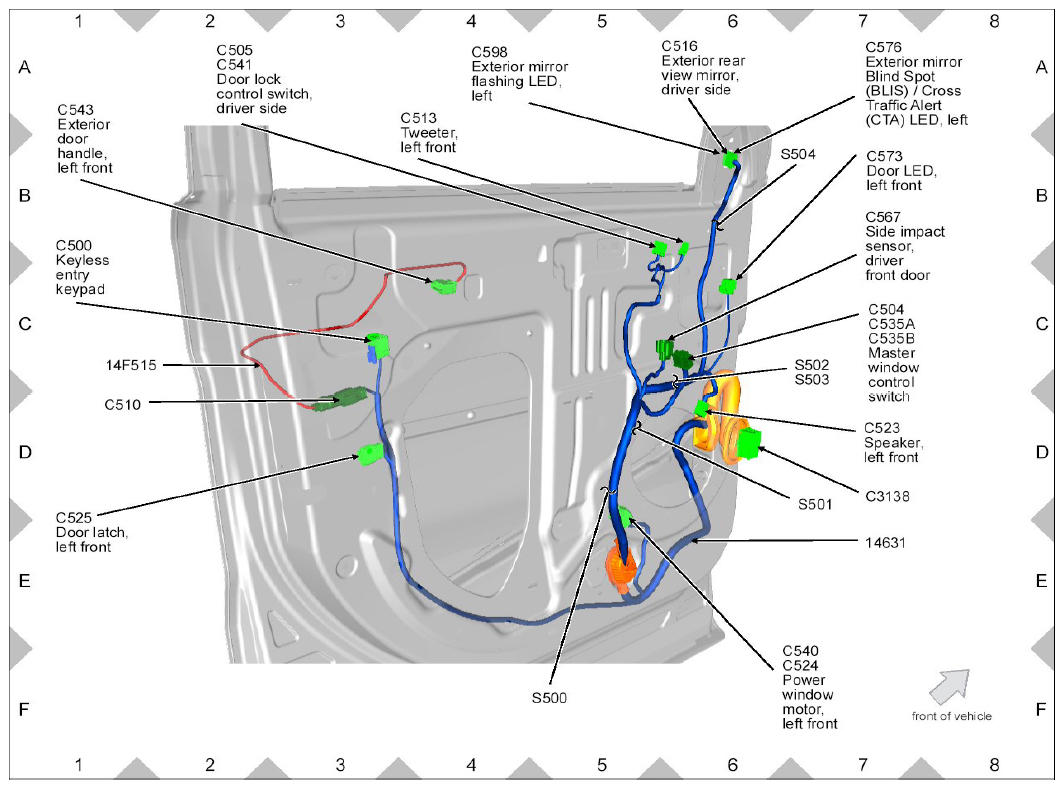

Fig 43: Left Front Door Wiring Harness Connectors Location

G09012333

Courtesy of FORD MOTOR CO.

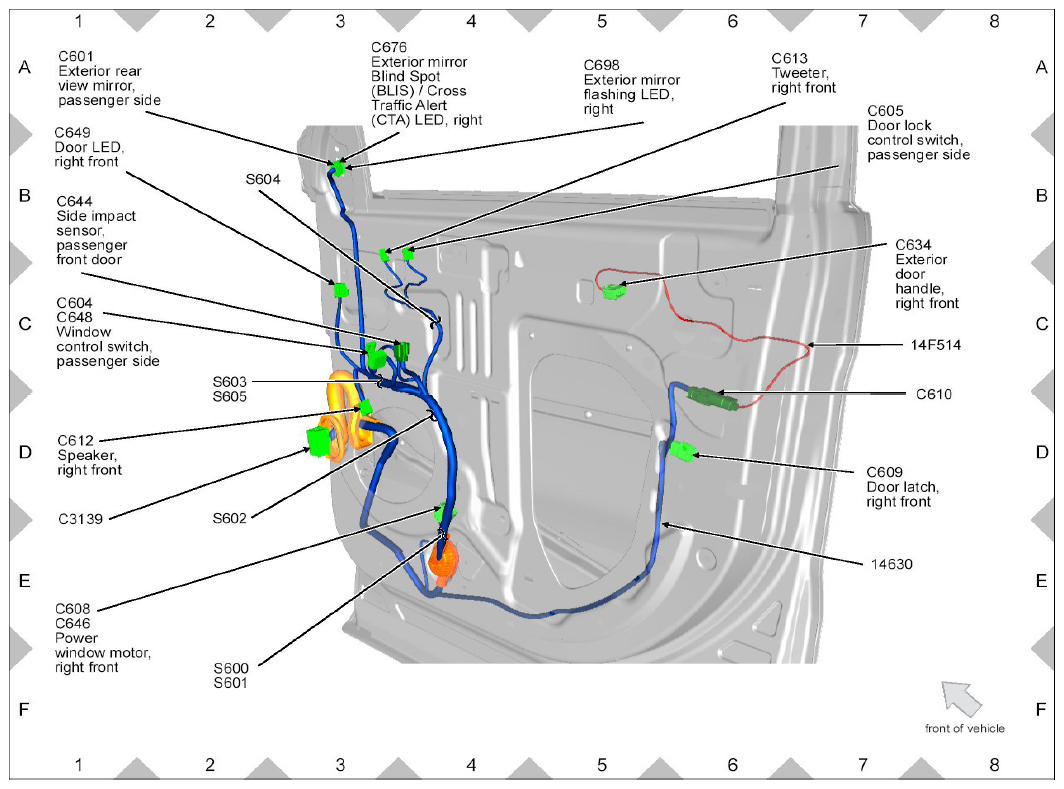

Fig 44: Right Front Door Wiring Harness Connectors Location

G09012334

Courtesy of FORD MOTOR CO.

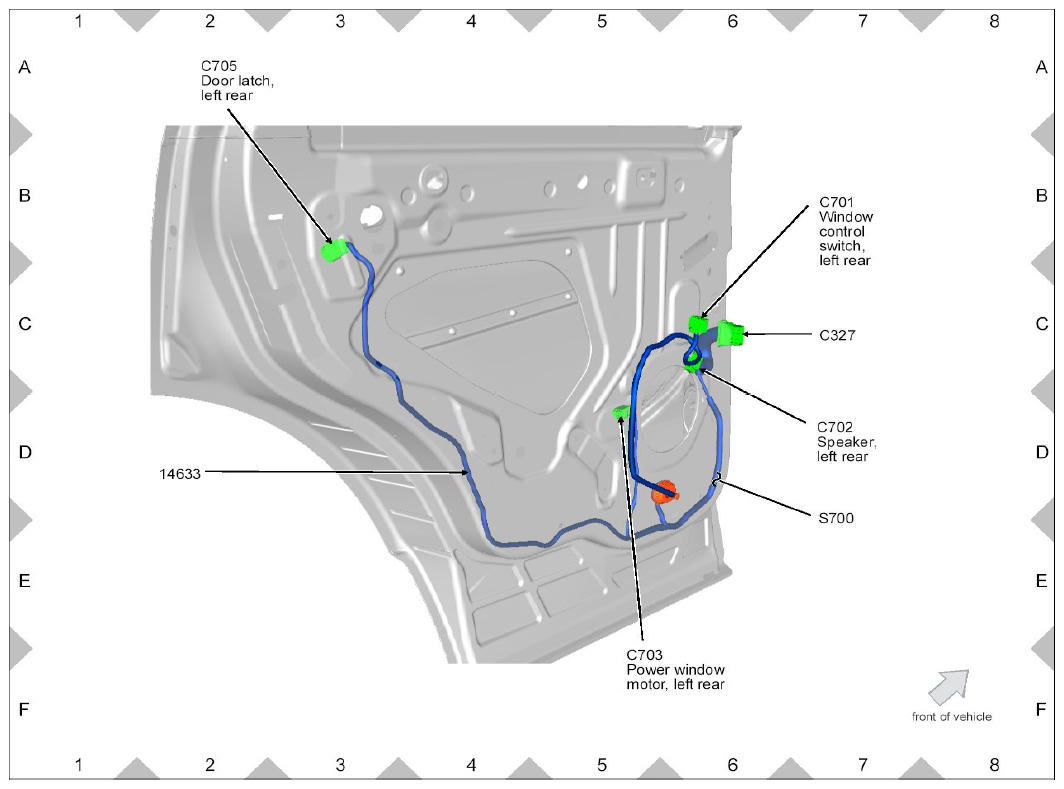

Fig 45: Left Rear Door Wiring Harness Connectors Location

G09012335

Courtesy of FORD MOTOR CO.

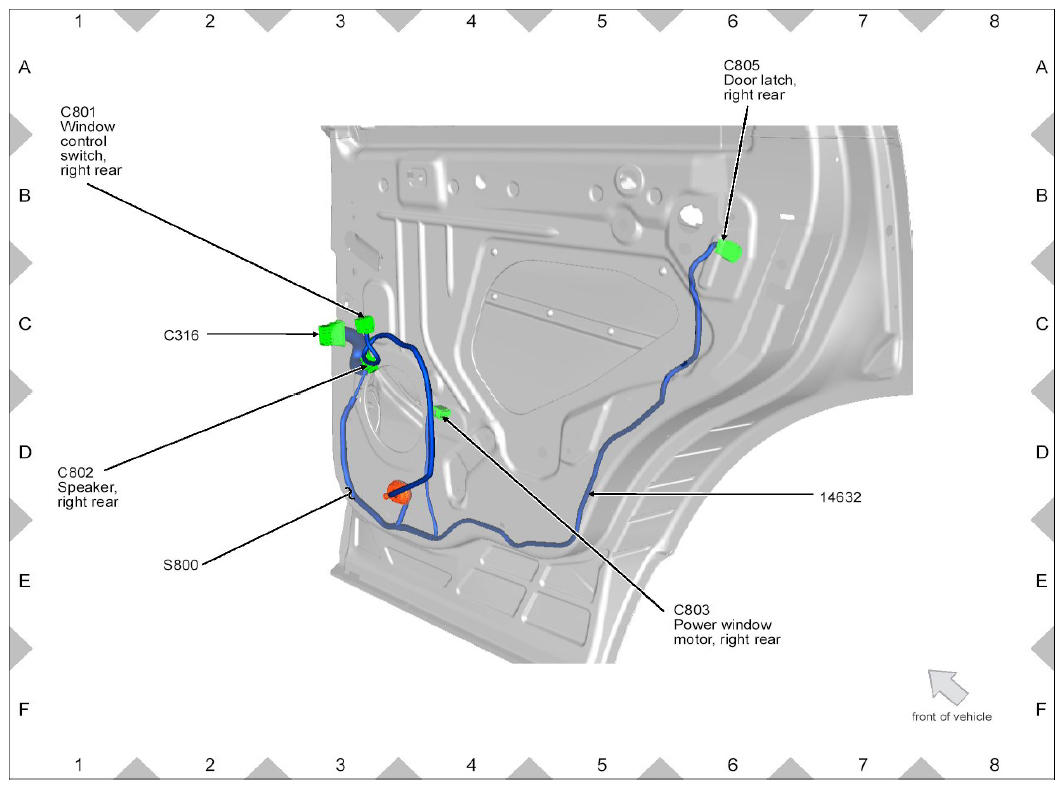

Fig 46: Right Rear Door Wiring Harness Connectors Location

G09012336

Courtesy of FORD MOTOR CO.

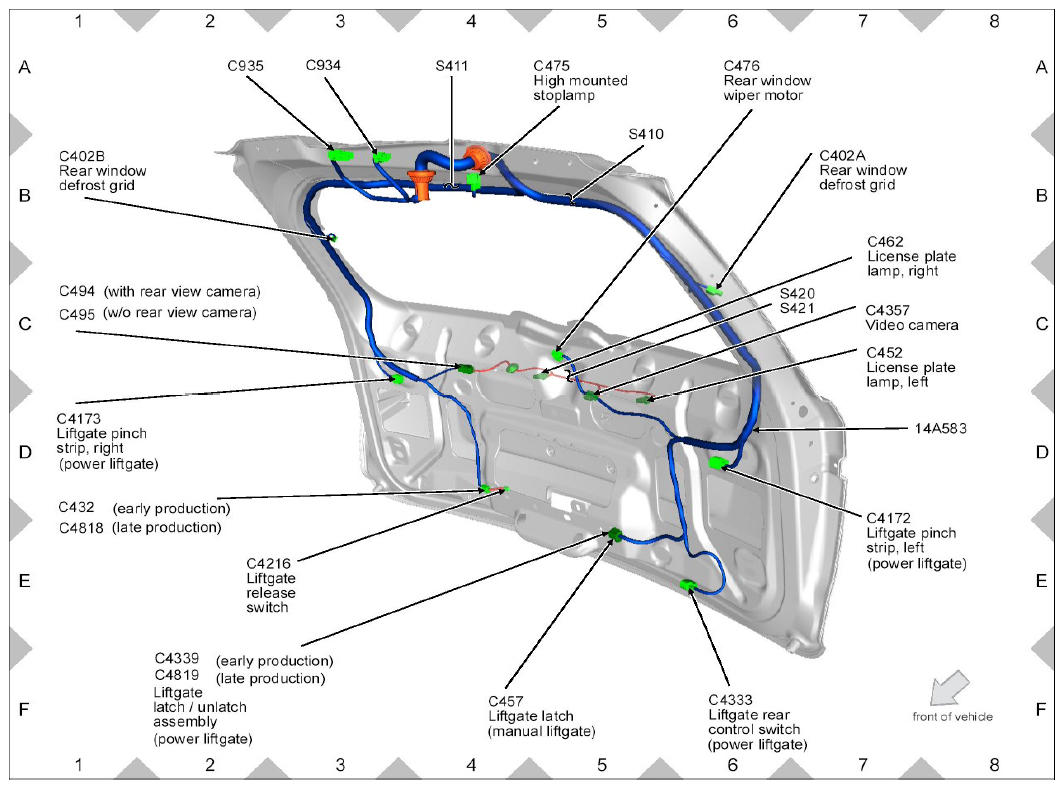

Fig 47: Rear Liftgate Wiring Harness Connectors Location (1 Of 2)

G09012337

Courtesy of FORD MOTOR CO.

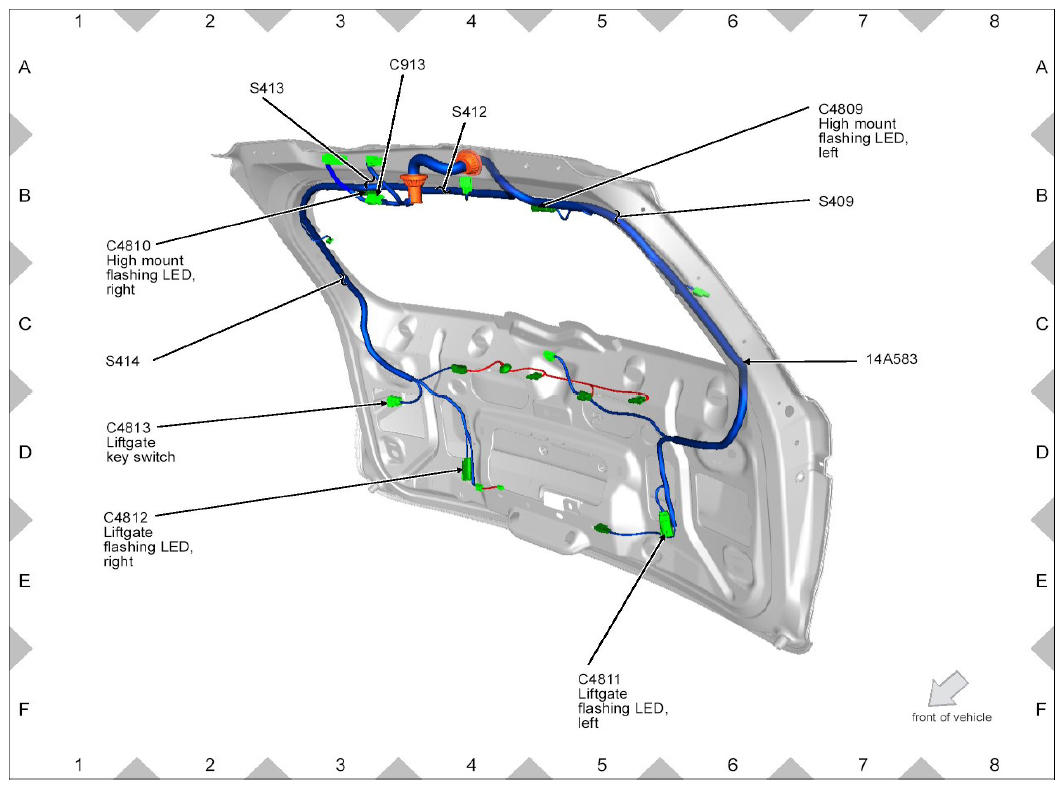

Fig 48: Rear Liftgate Wiring Harness Connectors Location (2 Of 2)

G09012338

Courtesy of FORD MOTOR CO.

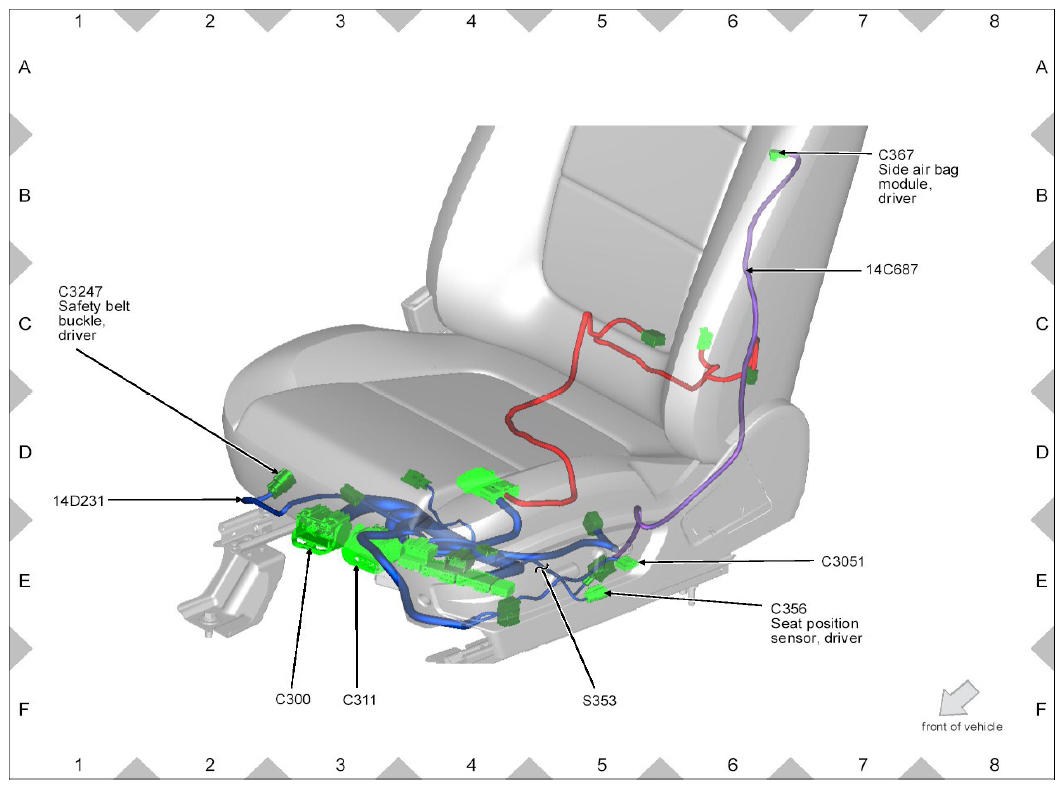

Fig 49: Drivers Front Seat Wiring Harness Connectors Location (1 Of 2)

G09012339

Courtesy of FORD MOTOR CO.

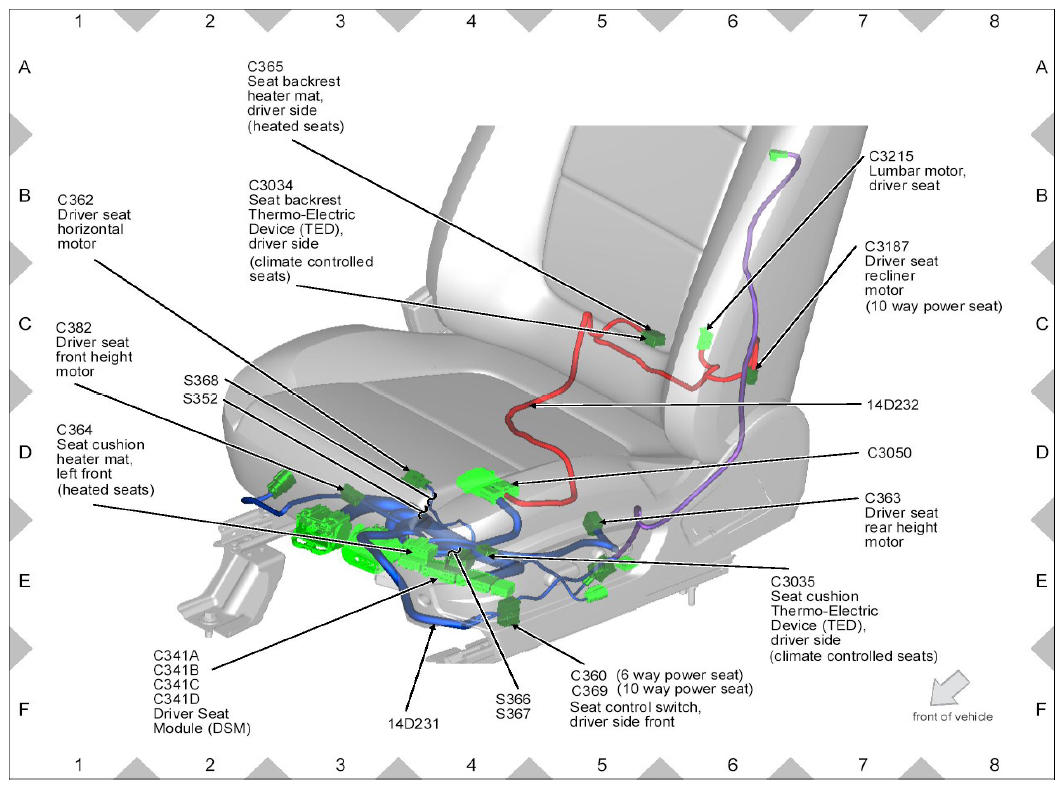

Fig 50: Drivers Front Seat Wiring Harness Connectors Location (2 Of 2)

G09012340

Courtesy of FORD MOTOR CO.

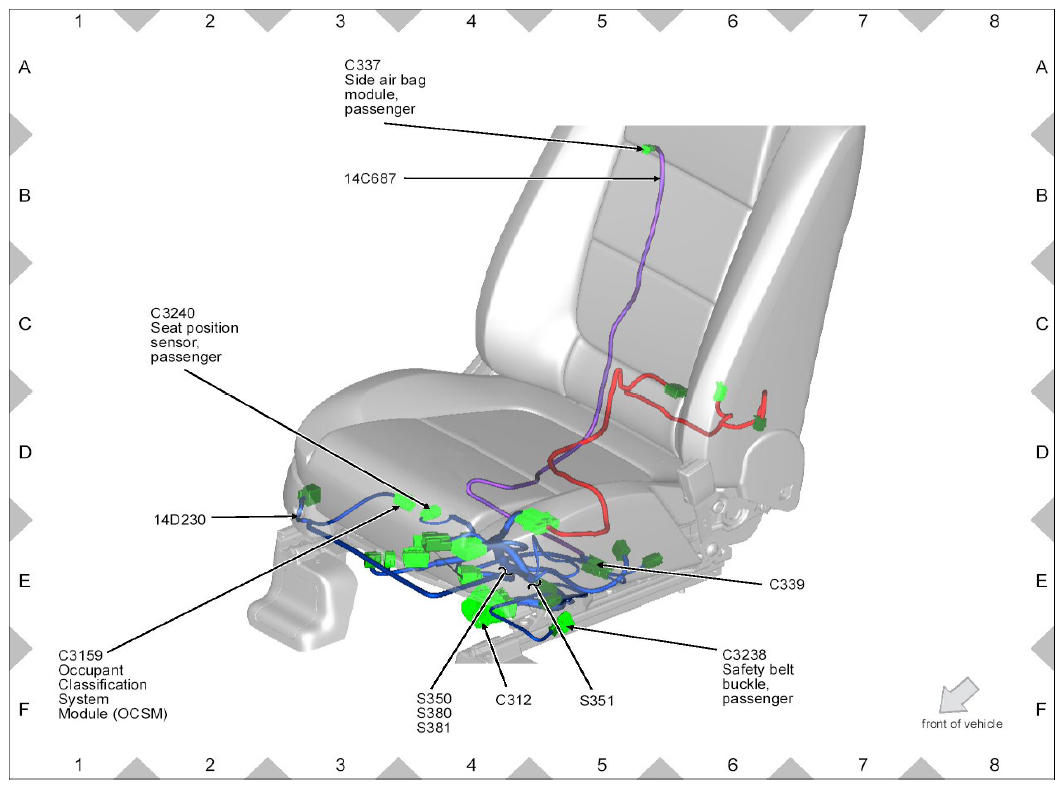

Fig 51: Passenger Front Seat Wiring Harness Connectors Location (1 Of 2)

G09012341

Courtesy of FORD MOTOR CO.

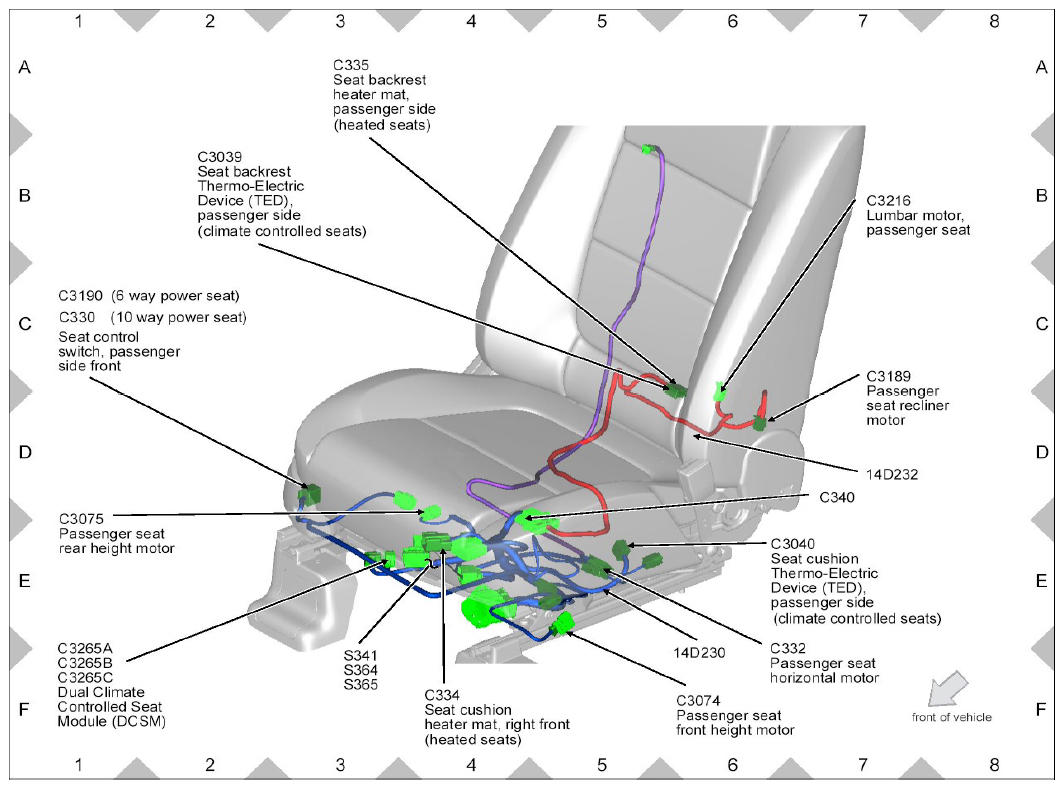

Fig 52: Passenger Front Seat Wiring Harness Connectors Location (2 Of 2)

G09012342

Courtesy of FORD MOTOR CO.

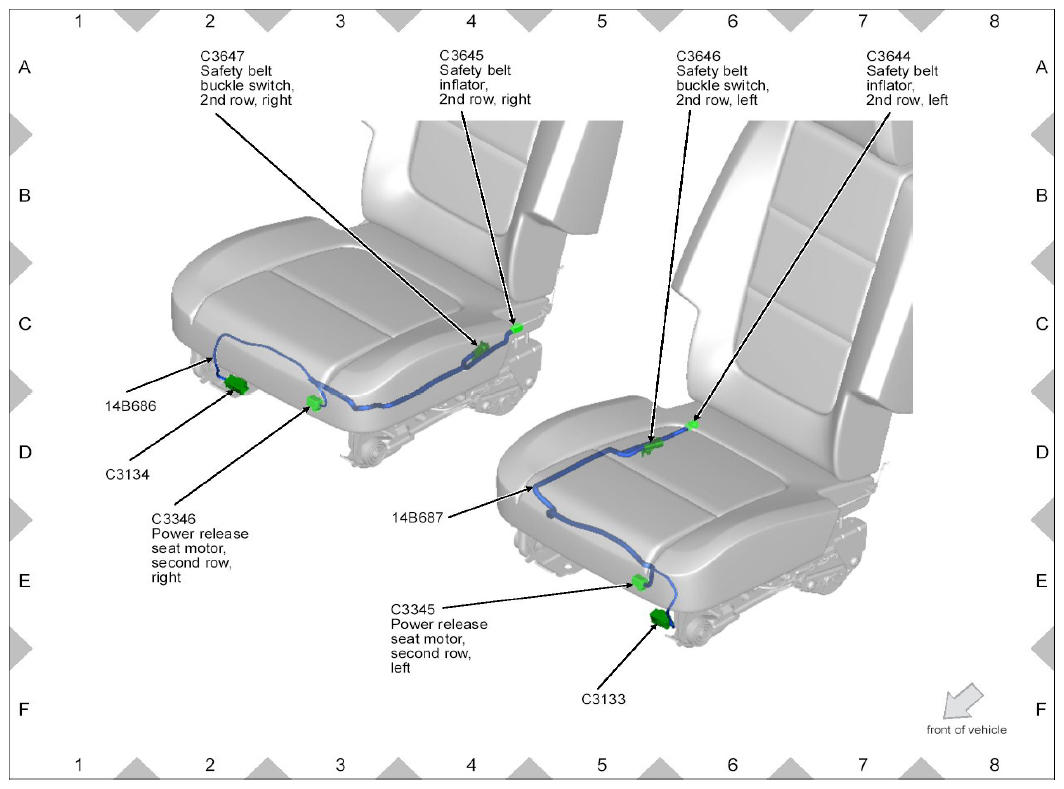

Fig 53: Second Row Seat Wiring Harness Connectors Location

G09012343

Courtesy of FORD MOTOR CO.

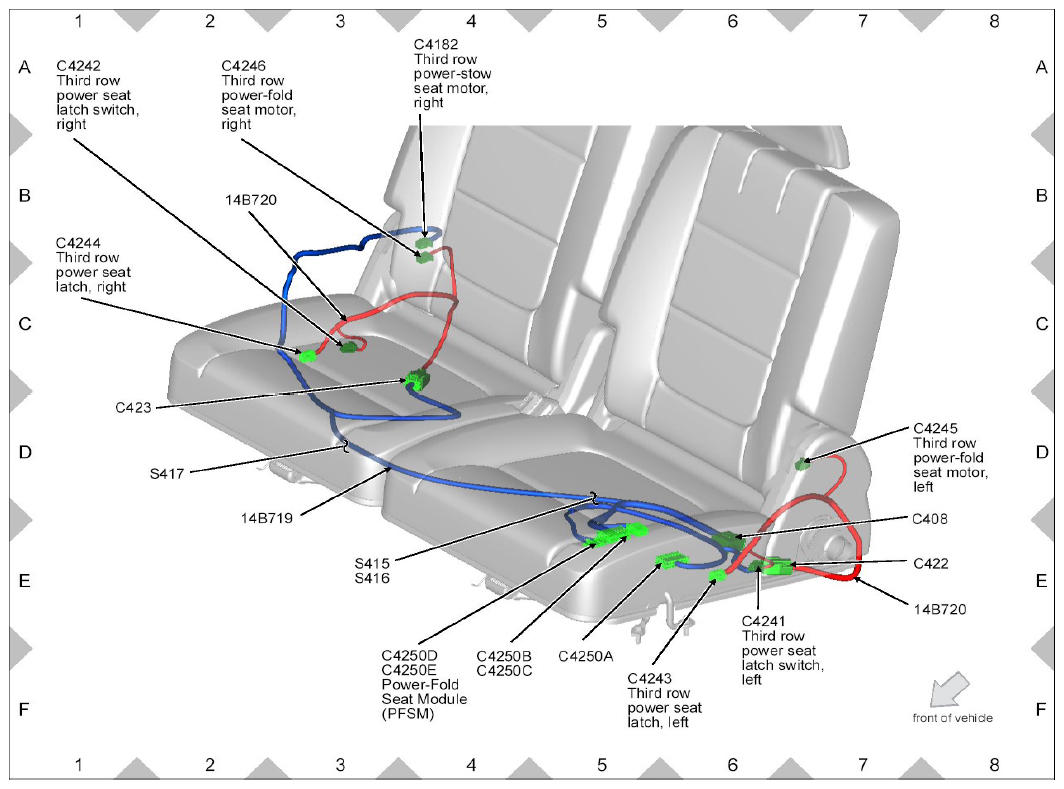

Fig 54: Third Row Seat Wiring Harness Connectors Location

G09012344

Courtesy of FORD MOTOR CO.

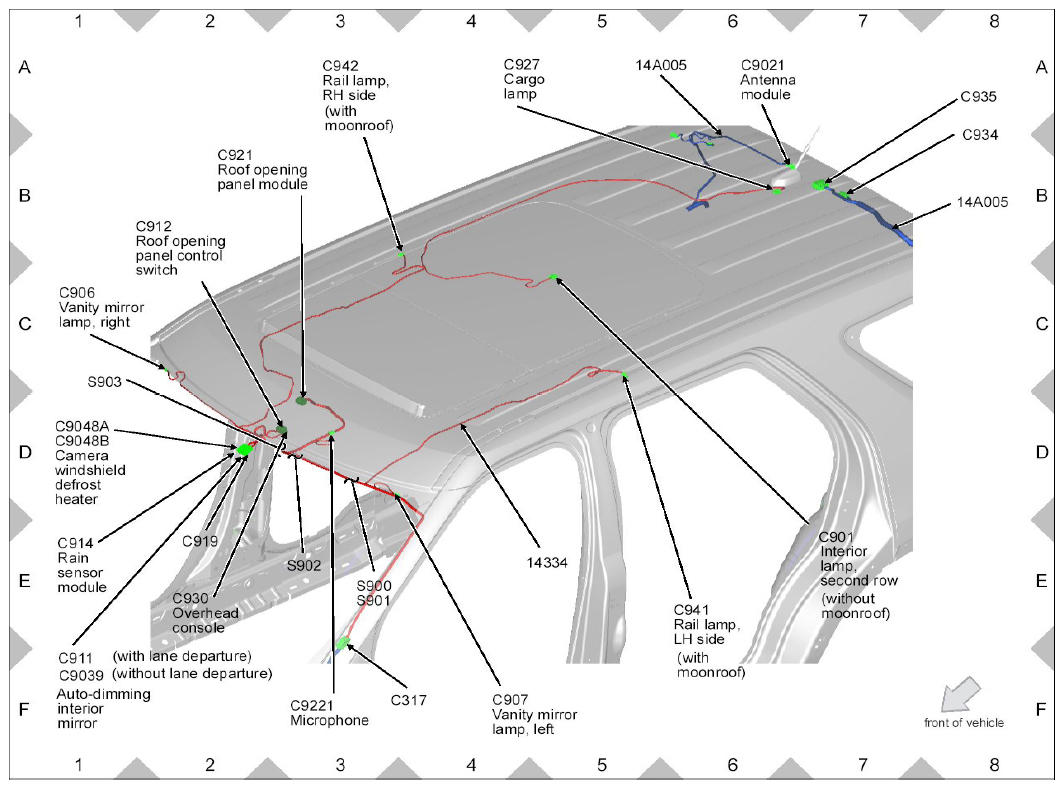

Fig 55: Roof Wiring Harness Connectors Location (1 Of 2)

G09012345

Courtesy of FORD MOTOR CO.

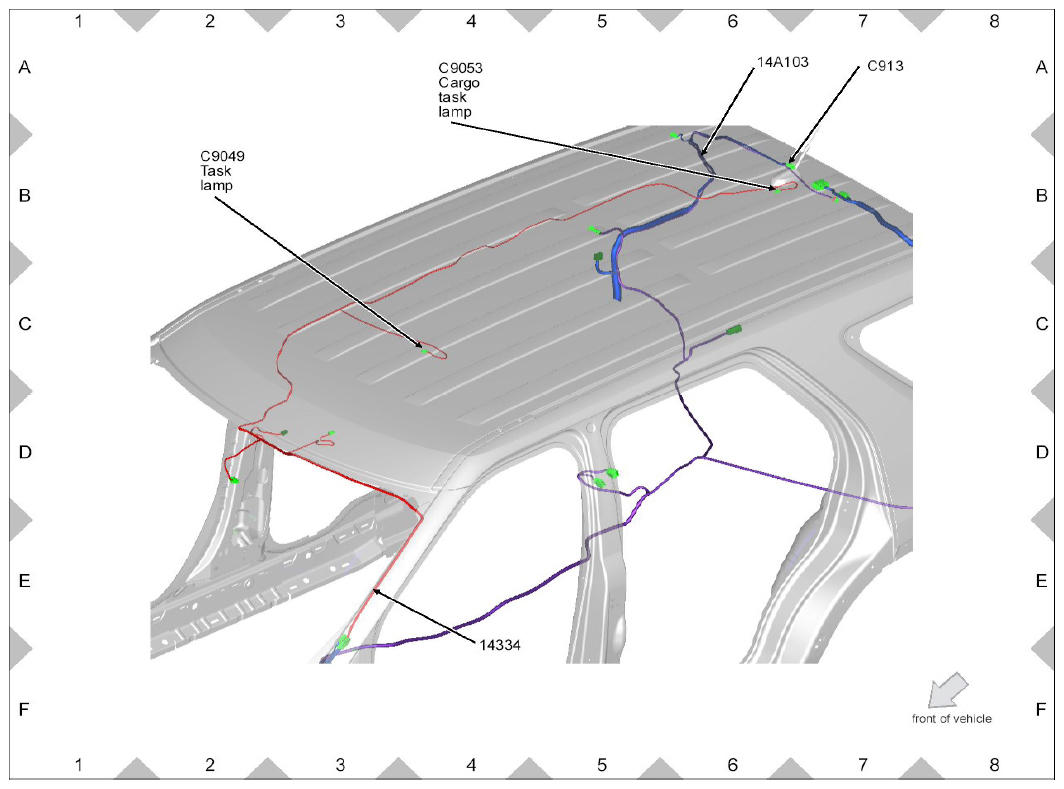

Fig 56: Roof Wiring Harness Connectors Location (2 Of 2)

G09012346

Courtesy of FORD MOTOR CO.
