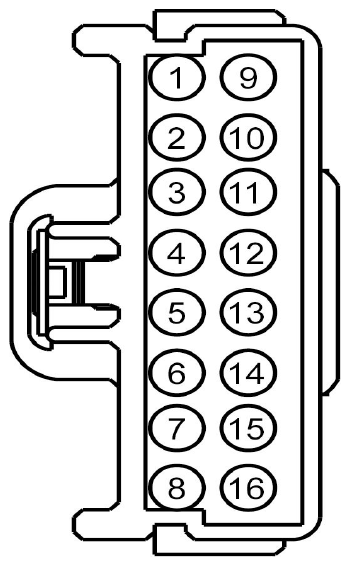

Audio Digital Signal Processing (DSP) Module Connector End View (C3154B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP | |
| 2 | VME07 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 3 | VME08 (GN-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 4 | VME09 (WH-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) | |
| 5 | VME39 (GN-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER REAR TWEETER | |
| 6 | VME10 (WH-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 7 | VME11 (VT-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER | |
| 8 | VME12 (BN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) | |
| 9 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP | |
| 10 | RME07 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 11 | RME08 (GY-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER | |
| 12 | RME09 (BN-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) | |
| 13 | RME39 (GY-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER | |
| 14 | RME10 (WH-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 15 | RME11 (YE-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER | |
| 16 | RME12 (BN-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) |

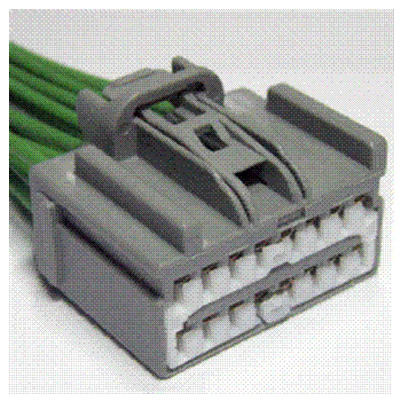

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1145 | Service Part Number: BU2Z-14S411-GA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses
|
