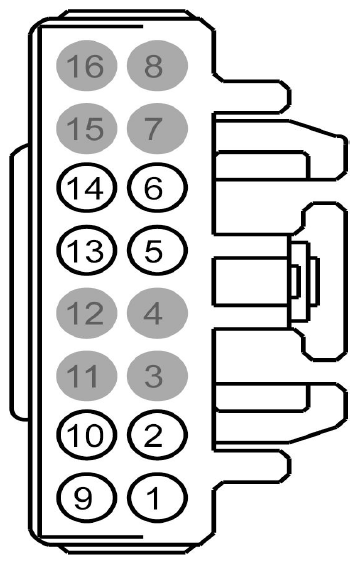

Audio Digital Signal Processing (DSP) Module Connector End View (C3154C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VME01 (GN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 | |
| 2 | VME02 (VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 6 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME01 (GY) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 | |
| 10 | RME02 (YE) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | GD348 (BK-YE) | 16 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 14 | GD348 (BK-YE) | 16 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |

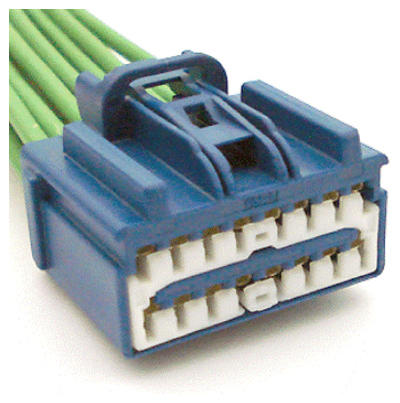

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-959 | Service Part Number: 3U2Z-14S411-BDAB Gauge: 14 Pin material: Silver Cavities: 16 Vehicle Uses
|
