Front Controls Interface Module (FCIM) Connector End View (C2402)

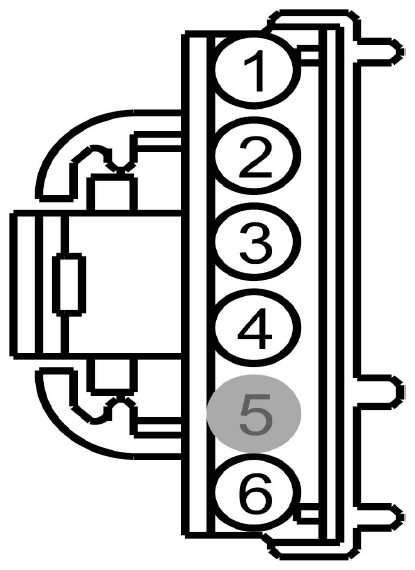

Fig 1: Identifying Front Controls Interface Module Connector End View (C2402)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP09 (RD)	22	FUSE - 9 OR CIRCUIT BREAKER
2	VDB13 (BU-GY)	22	INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH
3	VDB14 (VT-GY)	22	INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW
4	CLS32 (BN-YE)	22	SWITCH - HAZARD
5	*	*	Not Used
6	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits

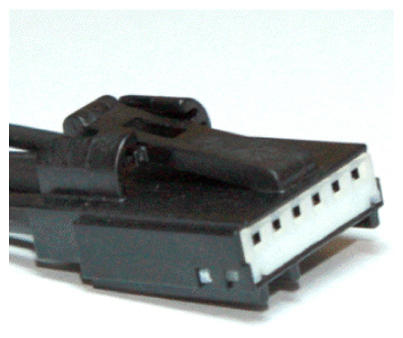

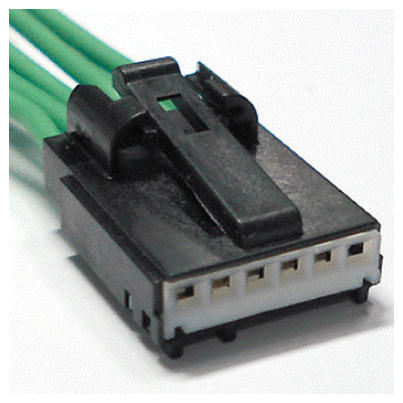

Pigtail Kit Part Number WPT-1006	Service Part Number: 7U2Z-14S411-NB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front)
Pigtail Kit Part Number WPT-895	Service Part Number: 7U2Z-14S411-NA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Junction Box - Relay Sensor - Throttle Position Sensor - Transmission Oil Temperature Speaker - Tweeter - RH - Rear Switch - Convertable Top
