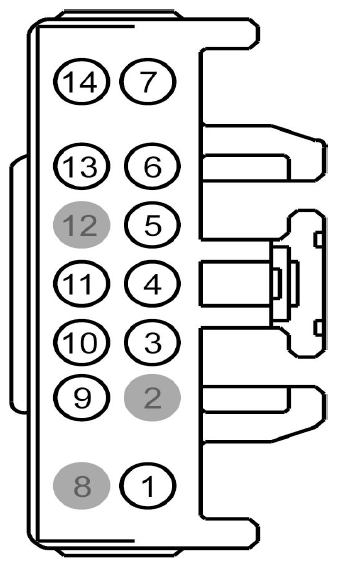

Generic Function Module (GFM) Connector End View (C2464)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP42 (GN) | 20 | FUSE - 42 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | CAP14 (GY-BN) | 22 | POLICE - BUTTON FUNCTION 1 | |
| 4 | CAP18 (GN-OG) | 22 | POLICE - SWITCH 4-FUNCTION CONTROL AUX1 | |
| 5 | CAP15 (WH-VT) | 22 | POLICE - BUTTON FUNCTION 2 | |
| 6 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 7 | RAP18 (BN-BU) | 22 | POLICE - SWITCH 4-FUNCTION CONTROL | |
| 8 | * | * | Not Used | |
| 9 | CAP16 (GN-BN) | 22 | POLICE - BUTTON FUNCTION 3 | |
| 10 | CAP19 (GY-VT) | 22 | POLICE - SWITCH 4-FUNCTION CONTROL AUX2 | |
| 11 | CAP17 (YE-GY) | 22 | POLICE - BUTTON FUNCTION 4 | |
| 12 | * | * | Not Used | |
| 13 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 14 | GD215 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
| Available Pigtail Kits | |
|---|---|

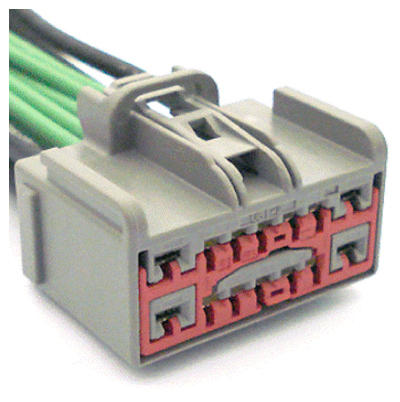

| Pigtail Kit Part Number WPT-741 | Service Part Number: 3U2Z-14S411-BJAA Gauge: 12 16 Pin material: Tin Cavities: 14 Vehicle Uses
|

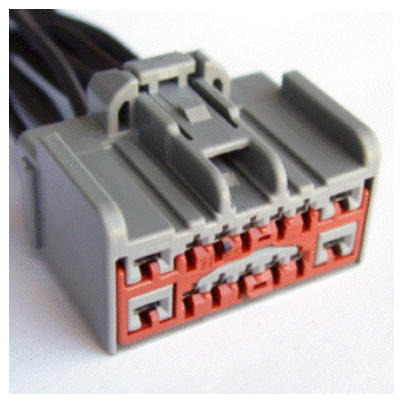

| Pigtail Kit Part Number WPT-955 | Service Part Number: 3U2Z-14S411-BJAC Gauge: 12 14 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses
|
