Occupant Classification System Module (OCSM) Connector End View (C3159)

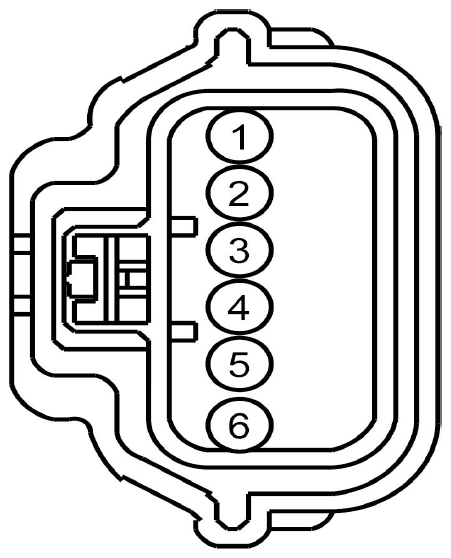

Fig 1: Identifying Occupant Classification System Module Connector End View (C3159)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX02 (YE-BU)	20	FUSE - 33 OR CIRCUIT BREAKER	without power seat - passenger
1	CBX02 (BN-RD)	20	FUSE - 33 OR CIRCUIT BREAKER	with power seat - passenger
2	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	GD901 (BK)	20	GROUND - PASSENGER SEAT RESTRIANTS
5	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD
6	VR210 (BU-BN)	20	SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD

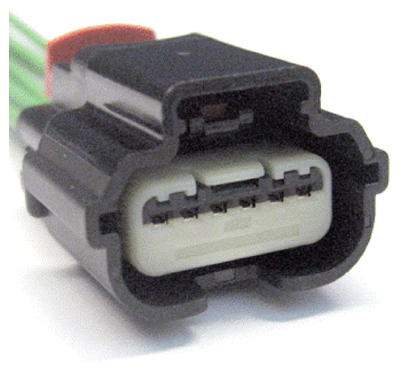

Available Pigtail Kits
Pigtail Kit Part Number WPT-1338	Service Part Number: 9U2Z-14S411-BB  Gauge: 20  Pin material: Silver  Cavities: 6  Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Transmission Range Switch - Door Ajar/Interior Lamp
Pigtail Kit Part Number WPT-929	Service Part Number: 9U2Z-14S411-BA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar/Interior Lamp
