Side Obstacle Detection Control Module - Right (Sod-R) Connector End View (C4370)

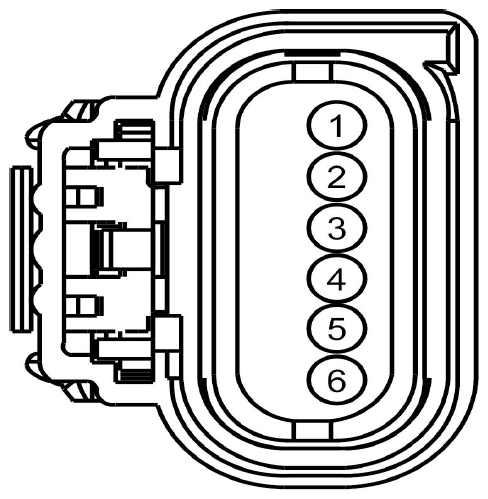

Fig 1: Identifying Right Side Obstacle Detection Control Module Connector End View (C4370)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRB02 (BU-BN)	22	SENSOR - BLINDSPOT WARNING RIGHT HAND # WARNING ALERT
2	CBP34 (VT-BN)	20	FUSE - 34 OR CIRCUIT BREAKER
3	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
4	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
5	GD351 (BK-GN)	20	GROUND - PILLAR D RIGHT
6	GD351 (BK-GN)	20	GROUND - PILLAR D RIGHT
