General Procedure
NOTE:
Refer to General Specifications in the
appropriate engine service information for the specification.

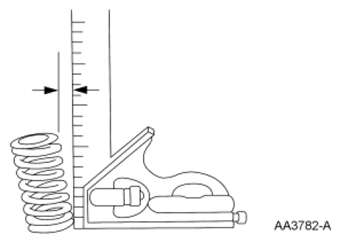

- Measure the out-of-square on each valve spring.
- Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square.
