Pinpoint Test AE: Unable To Activate Self Test/Network Communication Error: Introduction
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- unable to communicate with the PCM
- unable to activate the PCM self-test

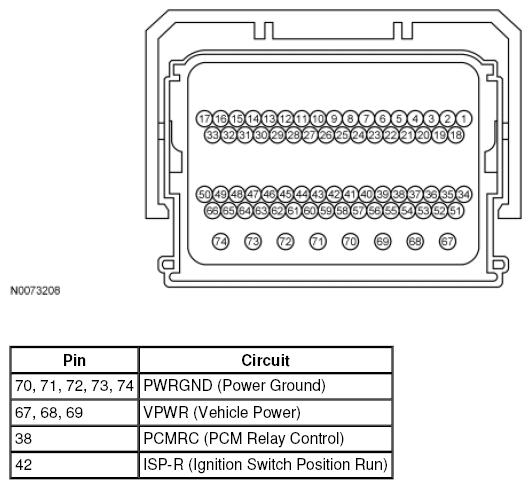

- harness circuits VPWR, ISP-R, PCMRC and PWRGND
