Pinpoint Test Ag: Accelerator Pedal Position (App) Sensor: Introduction
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After clearing an APP sensor DTC to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- APP sensor (9F836)

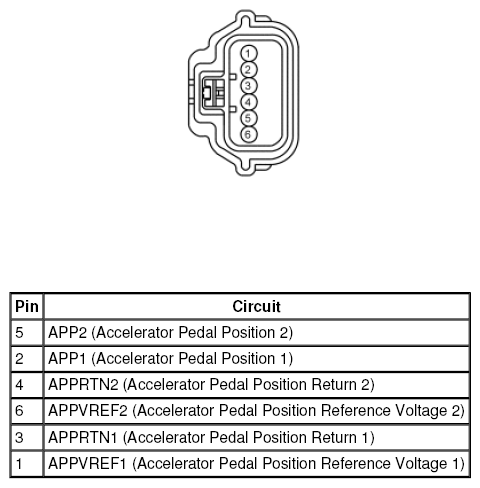

- harness circuits: APP1, APP2, APPRTN1, APPRTN2, APPVREF1, and APPVREF2

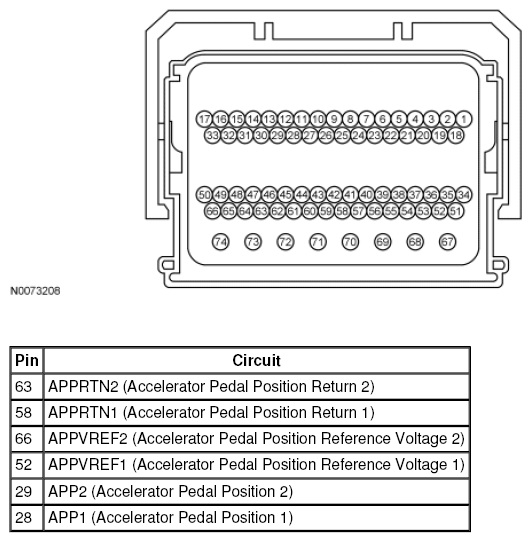

- PCM (12A650)
