Overhead Console Switch Assembly - Window Adjust Switch, Rear: Schematic

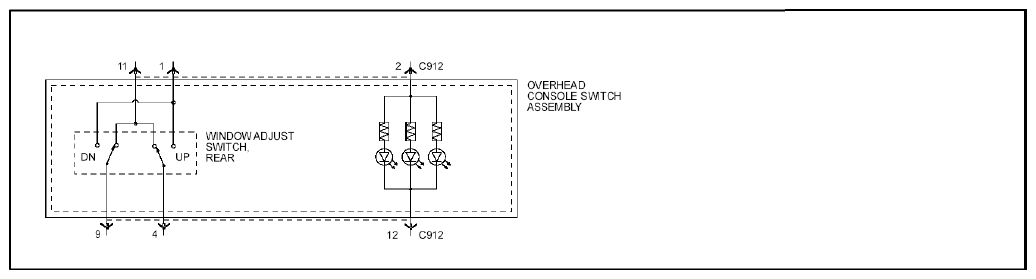

Fig 1: Overhead Console Switch Assembly Schematic (Window Adjust Switch, Rear)
G08747284Courtesy of FORD MOTOR CO.
