Steering Column Shroud: Notes

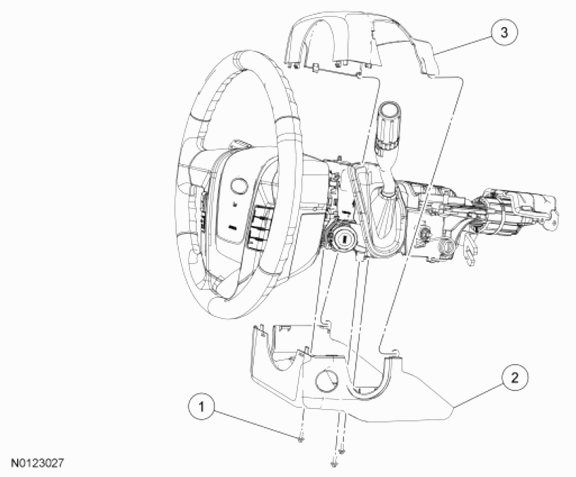

Fig 1: Identifying Steering Column Shroud Components
G07410266Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710485 Lower steering column shroud screw (3 required)
2 3530B Lower steering column shroud
3 3530A Upper steering column shroud
