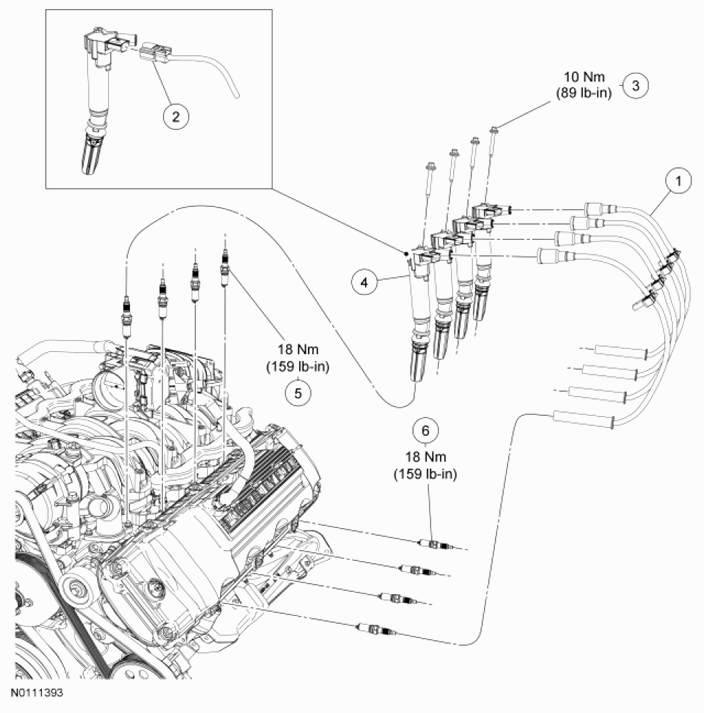

Engine Ignition Components - Exploded View
NOTE:
LH side shown in illustration, RH side similar
| Item | Part Number | Description |
|---|---|---|
| 1 | 12286 | LH ignition wire (4 required) |
| 2 | - | Ignition coil-on-plug electrical connector (part of 9D930) (4 required) |
| 3 | W503282 | LH ignition coil-on-plug bolt (4 required) |
| 4 | 12029 | LH ignition coil-on-plug (4 required) |
| 5 | 12405 | LH upper spark plug (4 required) |
| 6 | 12405 | LH lower spark plug (4 required) |
- Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
