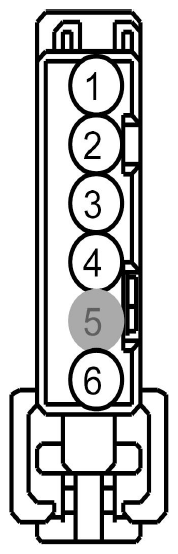

Global Positioning System Module (GPSM) Connector End View (C2398)

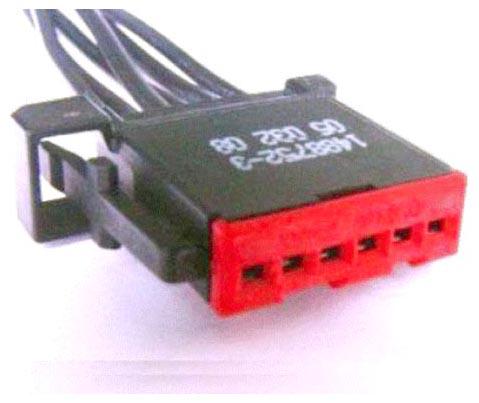

Fig 1: Identifying Global Positioning System Module (GPSM) Connector (C2398)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP10 (YE-RD)	18	FUSE - 10 OR CIRCUIT BREAKER
2	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
3	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	CET47 (BU)	22	SWITCH - REVERSE (RS)
5	*	*	Not Used
6	GD111 (BK-BU)	18	GROUND - CONSOLE FRONT CENTER

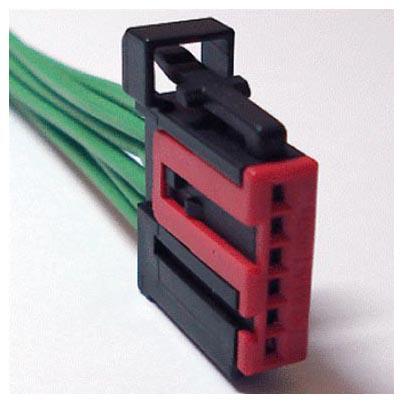

Available Pigtail Kits
Pigtail Kit Part Number WPT-873	Service Part Number: 6U2Z-14S411-  LA Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Mirror - Sideview Sensor - Throttle Position Switch - A/C Compressor Clutch Cycling
Pigtail Kit Part Number WPT-958	Service Part Number: 6U2Z-14S411-LB  Gauge: 18 20  Pin material: Tin&Silver  Cavities: 6  Vehicle Uses Antenna - GPS Module - Global Positioning
