Front Controls/Display Interface Module (FCDIM): Notes

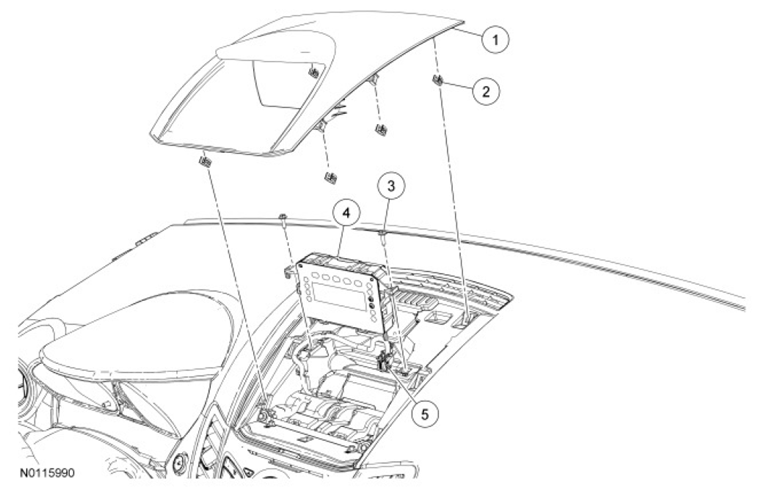

Fig 1: Identifying Front Controls/Display Interface Module And Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	042A82	Upper finish panel
2	W714972	Upper finish panel clips (6 required)
3	N806272	FCDIM screws (2 required)
4	10D885	FCDIM
5	-	FCDIM electrical connector (part of 14K024)
