Pinpoint Test KC: Fuel Pump Control Module: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• fuel pump control module (9D412)
• fuel pump control module 2 (9D412)
• fuel pump control module relay
• inertia fuel shutoff (IFS) switch (9341)
• harness circuits: B+, GND, FPC, FPM, FPM2, FPPWR, FP2PWR, FPRTN, FP2RTN, VPWR, and VPWR Fuel
• powertrain control module (PCM) (12A650)

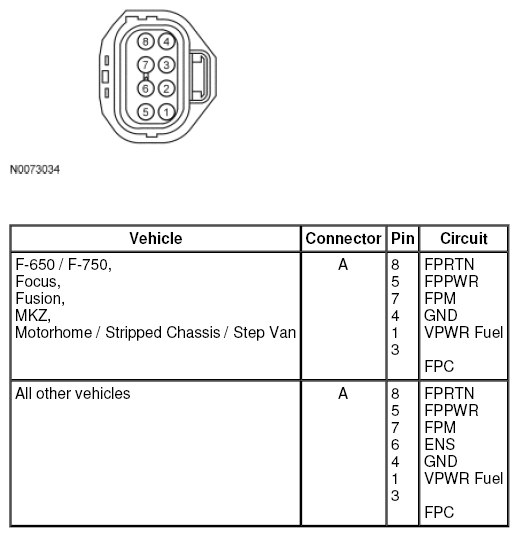

  Fig 1: Identifying Fuel Pump Control Module Connector

  Courtesy of FORD MOTOR CO.

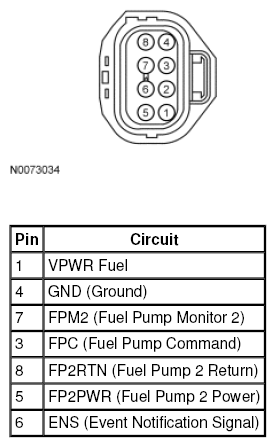

  Fig 2: Identifying Fuel Pump Control Module 2 Module Connector

  Courtesy of FORD MOTOR CO.
