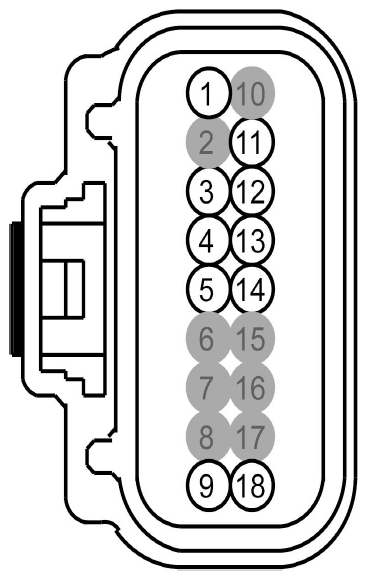

Occupant Classification System Module (OCSM) Connector End View (C3159)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP04 (VT) | 20 | FUSE - 4 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | CR152 (GY-YE) | 22 | CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE | |
| 4 | VR223 (BU-WH) | 22 | SENSOR - OCCUPANT CLASSIFICATION PRESSURE | |
| 5 | RR152 (YE-VT) | 22 | CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 10 | * | * | Not Used | |
| 11 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 12 | RR142 (GN) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 13 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 14 | GD145 (BK-BU) | 20 | GROUND - PILLAR B RIGHT | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |

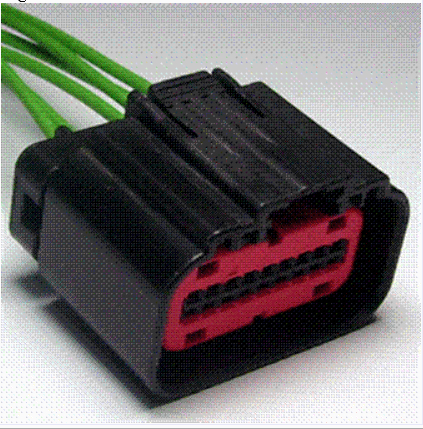

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1342 | Service Part Number: CU2Z-14S411-GA Gauge: 20 Pin material: Silver Cavities: 18 Vehicle Uses
|
