Powertrain Control Module (Pcm) Connector End View (C175B)

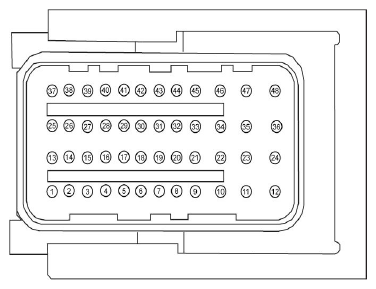

Fig 1: Identifying Powertrain Control Module (PCM) Connector (C175B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE302 (YE-BU)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY
2	CCA26 (BU-GY)	20	CTRL MOD. - SWITCH BRAKE PEDAL FORCE NORMALLY OPEN
3	*	*	Not Used
4	VE518 (BN-WH)	20	MONITOR - FUEL PUMP (FPM)
5	*	*	Not Used
6	*	*	Not Used
7	CE903 (BU-OG)	20	P/N SWITCH/CLUTCH 2
8	CBP22 (GN-OG)	20	FUSE - 22 OR CIRCUIT BREAKER
9	CDC35 (BU-WH)	18	SWITCH - IGNITION # START
10	SBB32 (VT-RD)	20	FUSE - 32 OR CIRCUIT BREAKER
11	CBB22 (GN-OG)	14	FUSE - 22 OR CIRCUIT BREAKER
12	CBB22 (GN-OG)	14	FUSE - 22 OR CIRCUIT BREAKER
13	CEC02 (GN-BU)	20	CTRL MOD. - COOLING FAN CONTROL LOW (FC)
14	*	*	Not Used
15	*	*	Not Used
16	LH108 (GY-BN)	20	CTRL MOD. - SENSOR G1876 PRESSURE
17	*	*	Not Used
18	*	*	Not Used
19	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
20	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
21	*	*	Not Used
22	CDC54 (WH-GN)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)
23	*	*	Not Used
24	CDC12 (YE)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)
25	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)
26	*	*	Not Used
27	*	*	Not Used
28	VH442 (GN-BN)	20	SENSOR - REFRIGERANT PRESSURE
29	*	*	Not Used
30	*	*	Not Used
31	*	*	Not Used
32	*	*	Not Used
33	*	*	Not Used
34	*	*	Not Used
35	GD187 (BK-GN)	14	GROUND - SHOCK TOWER LEFT BRACKET #1
36	GD187 (BK-GN)	14	GROUND - SHOCK TOWER LEFT BRACKET #1
37	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP CONTROL (FPC)
38	*	*	Not Used
39	*	*	Not Used
40	RH108 (BN)	20	CTRL MOD. - SENSOR REFRIGERANT PRESSURE
41	*	*	Not Used
42	*	*	Not Used
43	*	*	Not Used
44	VE701 (YE-OG)	20	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP 1)
45	*	*	Not Used
46	*	*	Not Used
47	GD187 (BK-GN)	14	GROUND - SHOCK TOWER LEFT BRACKET #1
48	GD187 (BK-GN)	14	GROUND - SHOCK TOWER LEFT BRACKET #1
