Restraints Control Module (RCM) Connector End View (C310A)

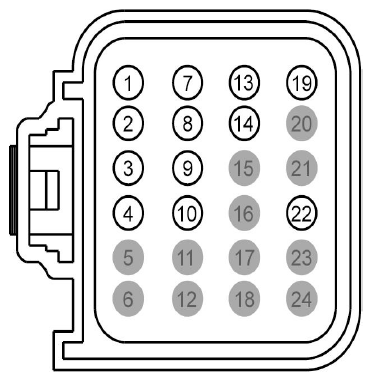

Fig 1: Identifying Restraints Control Module (RCM) Connector (C310A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1
2	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1
3	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1
4	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1
5	*	*	Not Used
6	*	*	Not Used
7	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2
8	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2
9	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2
10	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2
11	*	*	Not Used
12	*	*	Not Used
13	CBP20 (YE-VT)	20	FUSE - 20 OR CIRCUIT BREAKER
14	GD174 (BK-WH)	20	GROUND - TUNNEL
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	CR167 (YE-VT)	20	CTRL MOD. - EVENT NOTIFICATION SIGNAL (ENS)
20	*	*	Not Used
21	*	*	Not Used
22	RR116 (BN-GN)	20	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE
23	*	*	Not Used
24	*	*	Not Used
