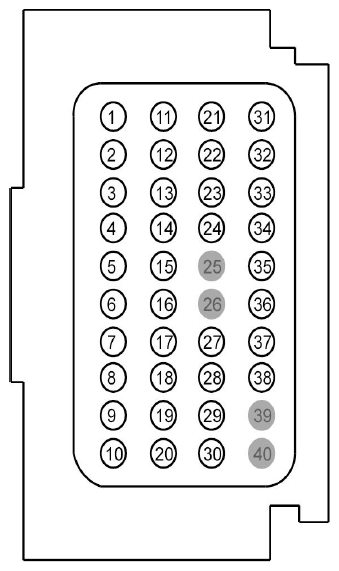

| 1 |
RR146 (BU-BN) |
20 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING DRIVER |
|
| 2 |
CR146 (GY-VT) |
20 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING DRIVER |
|
| 3 |
CR139 (VT-WH) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE |
|
| 4 |
RR139 (YE) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE |
|
| 5 |
RR105 (GY-YE) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE |
|
| 6 |
CR105 (GN-BU) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE |
|
| 7 |
CR109 (BN-BU) |
18 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE |
|
| 8 |
RR109 (BU-GN) |
18 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE |
|
| 9 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 10 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 11 |
RR147 (YE-VT) |
20 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD |
|
| 12 |
CR147 (GN-OG) |
20 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD |
|
| 13 |
CR122 (WH-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD |
|
| 14 |
RR122 (BN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD |
|
| 15 |
RR106 (YE-OG) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD |
|
| 16 |
CR106 (VT-GY) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD |
|
| 17 |
CR111 (BN-WH) |
18 |
CTRL MOD. - INFLATABLE CANOPY PASSENGER SIDE |
|
| 18 |
RR111 (YE-VT) |
18 |
CTRL MOD. - INFLATABLE CANOPY PASSENGER SIDE |
|
| 19 |
VCA24 (GN-OG) |
20 |
CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW |
|
| 20 |
VCA23 (BU-WH) |
20 |
CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS HIGH |
|
| 21 |
RR132 (BU-WH) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE |
|
| 22 |
VR218 (YE-OG) |
20 |
SENSOR - SIDE IMPACT FRONT PASSENGER SIDE |
|
| 23 |
VR219 (GN-WH) |
20 |
SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE |
|
| 24 |
RR133 (GY-BN) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
VR213 (VT-GN) |
20 |
SENSOR - IMPACT FRONT 1ST OR LEFT |
|
| 28 |
RR129 (YE-GY) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT 1ST OR LEFT |
|
| 29 |
RR130 (GN-BU) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT |
|
| 30 |
VR214 (WH-BU) |
20 |
SENSOR - IMPACT FRONT 2ND OR RIGHT |
|
| 31 |
VR216 (GN-OG) |
20 |
SENSOR - SEAT TRACK POSITION FRONT PASSENGER |
|
| 32 |
VR215 (YE-VT) |
20 |
SENSOR - SEAT TRACK POSITION DRIVER |
|
| 33 |
CR202 (BN-GN) |
22 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT MIDDLE |
|
| 34 |
CR201 (GN-BU) |
22 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE |
|
| 35 |
RR131 (VT-GY) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE |
|
| 36 |
VR217 (GY-YE) |
20 |
SENSOR - SIDE IMPACT FRONT DRIVER SIDE |
|
| 37 |
VR220 (VT-OG) |
20 |
SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE |
|
| 38 |
RR134 (BN-BU) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
