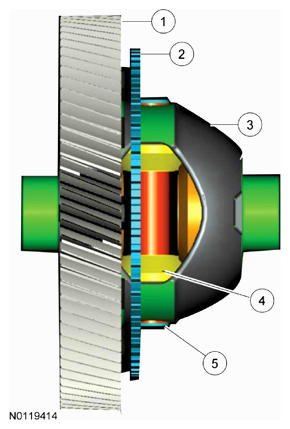

Differential System
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D392 | Differential ring gear |
| 2 | 7H150 | Differential impulse ring |
| 3 | - | Differential carrier (part of 4026) |
| 4 | - | Differential pinion gear (part of 4026) |
| 5 | - | Differential pinion shaft (part of 4026) |
The output shaft system consists of the output shaft gears, differential ring (final drive) gear and the differential assembly. Typically when a vehicle is traveling down the road both wheels are rotating at the same speed; however, when a vehicle is turning, the outside wheel must travel a greater distance than the inside wheel. To do this, in the same time, the outside wheel must rotate faster than the inside wheel. The differential is designed to provide speed compensation for the wheels to allow the vehicle to negotiate turns smoothly.
