Synchronizer Systems

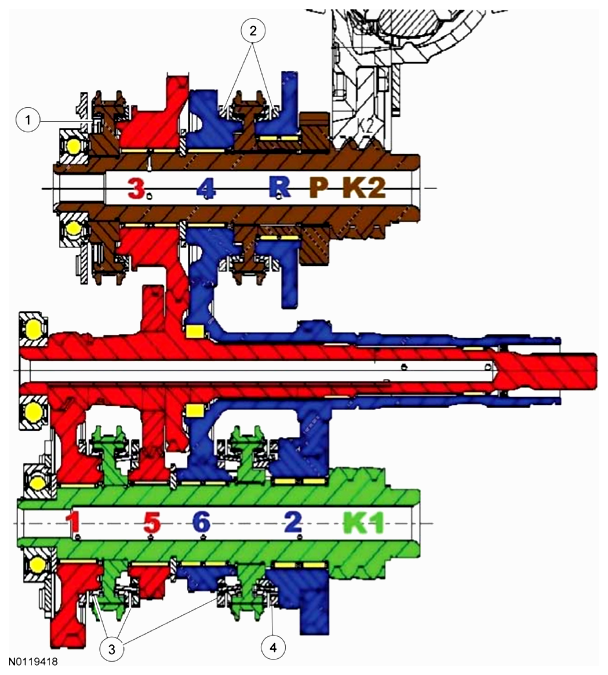

| Item | Part Number | Description |
|---|---|---|
| 1 | - | 3rd gear single cone synchronizer system (part of 7060) |
| 2 | - | 4th gear and reverse gear single cone synchronizer systems (part of 7060) |
| 3 | - | 1st, 5th and 6th gears single cone synchronizer systems (part of 7060) |
| 4 | - | 2nd gear dual cone synchronizer system (part of 7060) |
The synchronizer systems are comprised of single and dual cone synchronizer systems. The synchronizers are designed to act as the torque carrying interfaces between each speed gear and corresponding output shaft. The synchronizer design and function are similar to manual transaxle operations.
