Differential Shim: Assembly

  1. Install the selected differential bearing shim. If the differential bearings, differential, clutch housing or transaxle case were replaced, refer to DIFFERENTIAL SHIM SELECTION .
    Fig 1: Locating Clutch Housing Differential Bearing Shim
    G08867298Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the differential bearing race.

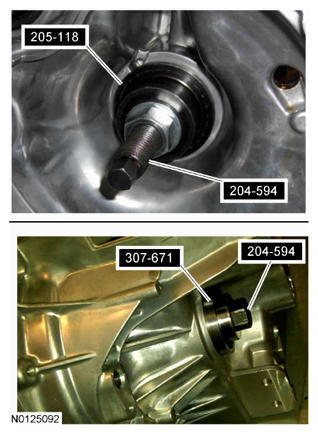

    Fig 2: Installing Clutch Housing Differential Bearing Race Using Special Tools
    G08867299Courtesy of FORD MOTOR CO.
