Disassembly And Assembly Of Subassemblies: Differential: Notes
SPECIAL TOOLS DESCRIPTION
| Handle 205-153 |
|
| Installer, Differential Bearing 205-206 |
|
| Puller, Bearing 205-D064 |
|
| Remover/Installer, Front Wheel Hub 204-069 |
|
| Step Plate 205-D014 |

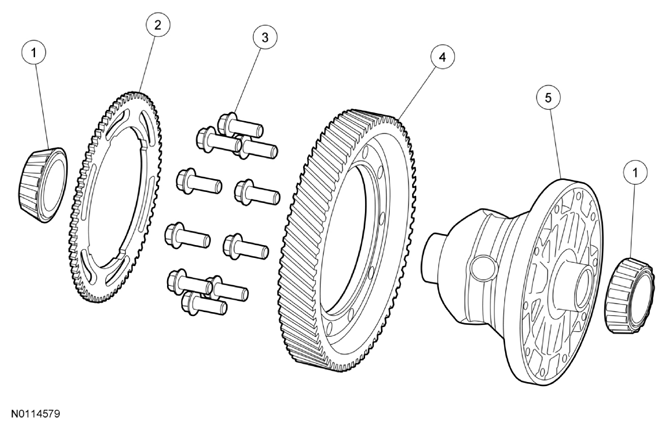

| Item | Part Number | Description |
|---|---|---|
| 1 | 4220 | Differential bearings |
| 2 | 7H150 | Differential impulse ring |
| 3 | W790237 | Differential ring gear bolts |
| 4 | - | Differential ring gear (part of 4026) |
| 5 | - | Differential case (part of 4026) |
