Input Shaft - Inner: Notes

SPECIAL TOOLS DESCRIPTION

G08867300
 Puller, Bearing
205-D064

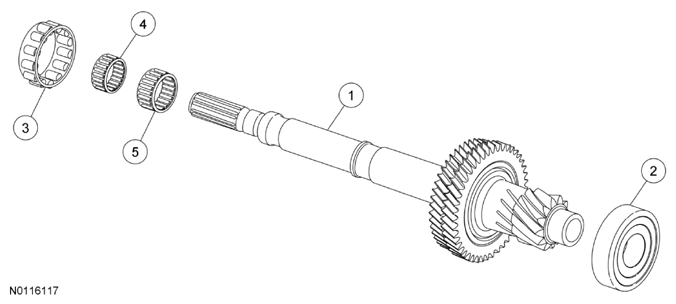

Fig 1: Identifying Inner Input Shaft, Radial, Roller And Needle Bearings
G08867301Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7717 Inner input shaft
2 7B412 Radial bearing
3 7B412 Roller bearing
4 7M150 Needle bearing
5 7M150 Needle bearing
