Transaxle Case: Assembly

  1. NOTE: If a new differential gear bearing, transmission case, differential or clutch housing are installed, measure the differential shim for the correct size. For additional information, refer to DIFFERENTIAL SHIM SELECTION .

    Using the special tools, install the differential gear bearing cup.

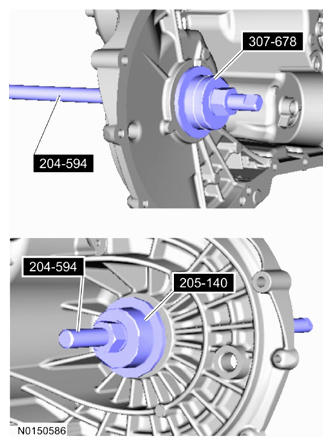

    Fig 1: Installing Differential Gear Bearing Cup Using Special Tools
    G08867310Courtesy of FORD MOTOR CO.
  2. Install the new halfshaft seal on the special tools.

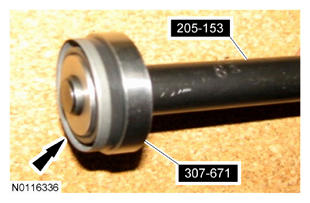

    Fig 2: Installing Halfshaft Seal Onto Special Tool
    G08867311Courtesy of FORD MOTOR CO.
  3. Using the special tools, install the new halfshaft seal.

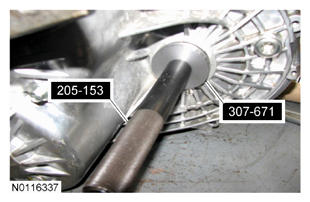

    Fig 3: Installing LH Halfshaft Seal Using Special Tools
    G08867312Courtesy of FORD MOTOR CO.
