Transaxle Vent: Notes

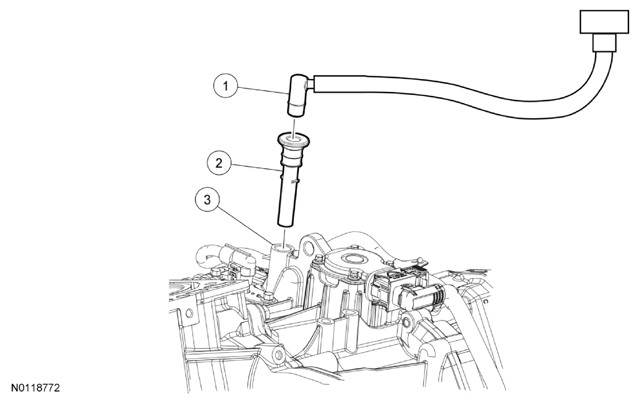

Fig 1: Identifying Transaxle, Vent Base And Vent Cap Housing
G08867081Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Vent cap housing
2 - Vent base
3 - Transaxle
