Transmission Control Module (TCM): Installation

Carefully inspect the TCM and the transaxle bore for debris or damage. Clean and/or repair as needed.
NOTE: Use a small amount of transmission fluid on the new O-rings prior to installation.

Install new O-rings if the TCM is being reused.

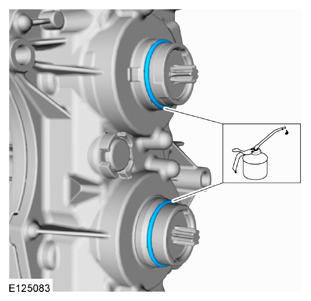

Fig 1: Identifying Transmission Fluid Applying Areas On O-Rings
Courtesy of FORD MOTOR CO.
NOTE: Do not force the TCM onto the transaxle or damage may occur.

NOTE: Make sure the TCM sits flush on the transaxle or damage can occur.

Install the TCM on the transaxle. Apply light pressure to seat the O-rings. If the TCM does not push in place with light pressure, remove the TCM and slightly turn the TCM gears and retry installing the TCM on the transaxle.

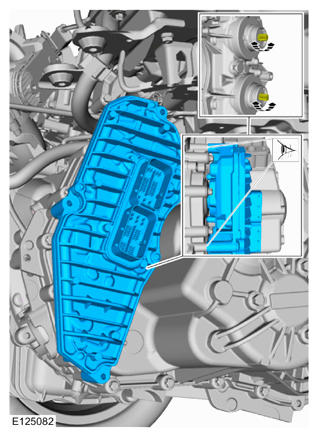

Fig 2: Turning TCM Gears
Courtesy of FORD MOTOR CO.
Install the 4 TCM bolts.
- Tighten to 27 Nm (20 lb-ft).

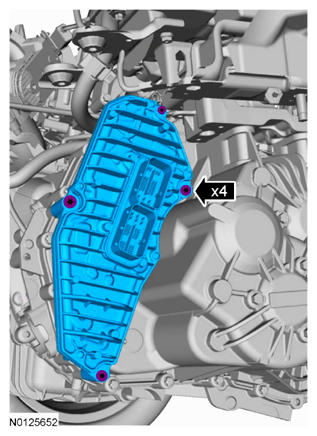

  Fig 3: Locating TCM Mounting Bolts
  Courtesy of FORD MOTOR CO.
Connect the 2 TCM electrical connectors.

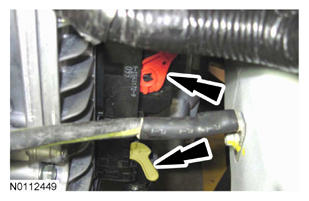

Fig 4: Locating TCM Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the wiring harness clips on the TCM housing.

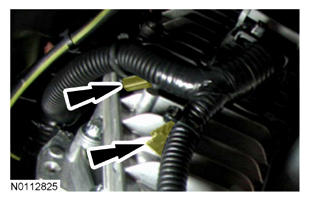

Fig 5: Locating Transmission Control Module Housing Wiring Harness Clips
Courtesy of FORD MOTOR CO.
Install the wiring harness on the transaxle housing.

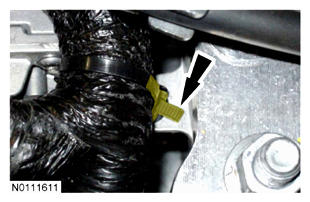

Fig 6: Locating Transaxle Housing Wiring Harness Clamp
Courtesy of FORD MOTOR CO.
Install the battery tray bracket, battery tray bracket nuts and selector lever cable bracket bolt.
- Tighten to 10 Nm (89 lb-in).

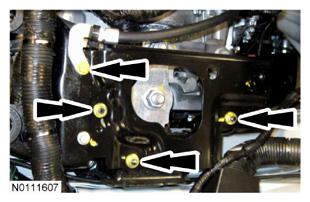

  Fig 7: Locating Selector Lever Cable Bracket Bolt And Battery Tray Bracket Nuts
  Courtesy of FORD MOTOR CO.
Install the wiring harness onto the battery tray bracket.

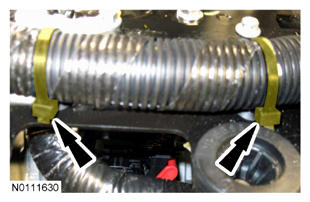

Fig 8: Locating Battery Tray Wiring Harness Clamps
Courtesy of FORD MOTOR CO.
Install the ACL assembly and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
Install the battery tray and battery. For additional information, refer to BATTERY AND BATTERY TRAY -- EXPLODED VIEW .
If a new TCM was installed, it will need to be reprogrammed to the latest calibration level available. For additional Information, refer to TRANSMISSION ADAPTIVE LEARNING .
