Transmission Control Module (TCM): Removal

Using the scan tool, recover all module information before removing the Transmission Control Module (TCM). For additional information, refer to TRANSMISSION ADAPTIVE LEARNING .
Remove the battery and battery tray. For additional information, refer to BATTERY AND BATTERY TRAY -- EXPLODED VIEW .
Remove the Air Cleaner (ACL) assembly and the outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
Using a suitable tool, detach the wiring harness from the battery tray bracket.

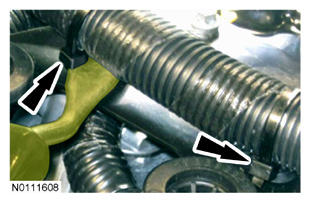

Fig 1: Locating Battery Tray Wiring Harness Clamps
Courtesy of FORD MOTOR CO.
Remove the selector lever cable bracket bolt, the battery tray bracket nuts and the battery tray bracket.

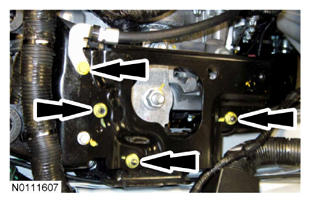

Fig 2: Locating Selector Lever Cable Bracket Bolt And Battery Tray Bracket Nuts
Courtesy of FORD MOTOR CO.
Remove the wiring harness from the transaxle housing.

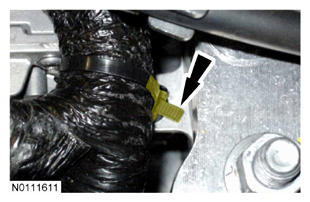

Fig 3: Locating Transaxle Housing Wiring Harness Clamp
Courtesy of FORD MOTOR CO.
Detach the wiring harness clips from the Transmission Control Module (TCM) housing.

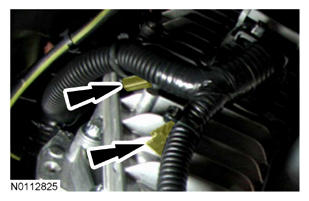

Fig 4: Locating Transmission Control Module Housing Wiring Harness Clips
Courtesy of FORD MOTOR CO.
Disconnect the 2 TCM electrical connectors.

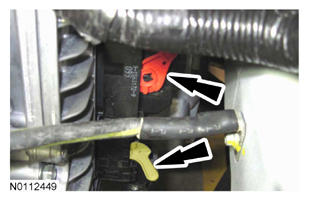

Fig 5: Locating TCM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the 4 TCM bolts.

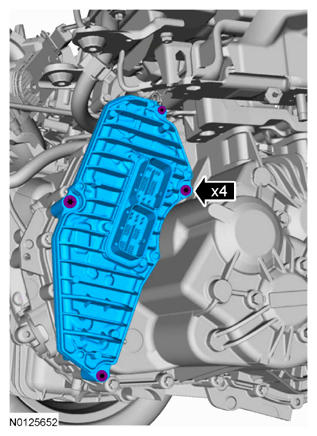

Fig 6: Locating TCM Mounting Bolts
Courtesy of FORD MOTOR CO.
Using a suitable flat blade screwdriver, carefully pry the TCM from the transaxle, at the location shown in illustration, and remove the TCM, discard the O-rings.

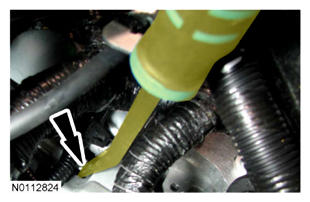

Fig 7: Removing TCM Using Flat Blade Screwdriver
Courtesy of FORD MOTOR CO.
