External Controls

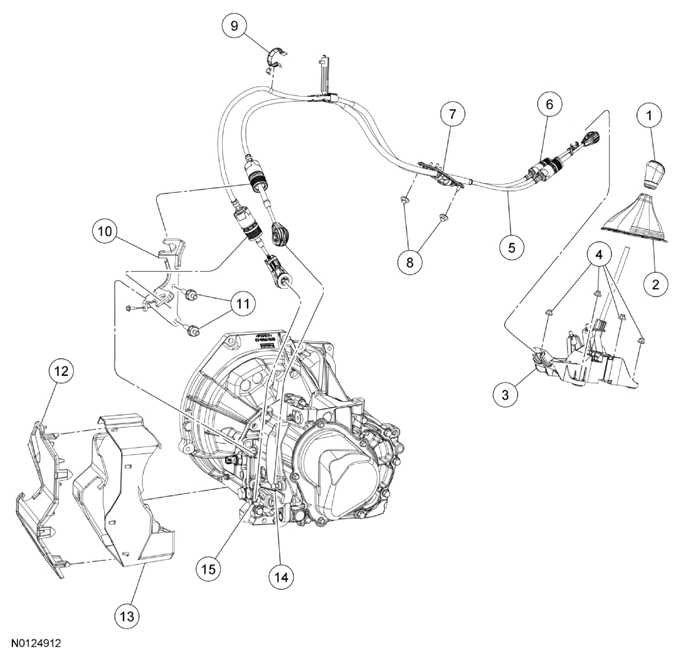

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Gearshift knob (part of 7213) |
| 2 | - | Gearshift boot (part of 7213) |
| 3 | - | Gearshift lever base (part of 7210) |
| 4 | W706131 | Gearshift nuts |
| 5 | - | Shift cable (part of 7E395) |
| 6 | - | Selector cable (part of 7E395) |
| 7 | - | Gearshift cables grommet (part of 7E395) |
| 8 | W706131 | Gearshift cables grommet nuts (2 required) |
| 9 | W709047 | Gearshift cable clip |
| 10 | 7474 | Gearshift cables bracket |
| 11 | W703125 | Gearshift cables bracket studs |
| 12 | 7222 | Gearshift cables cover |
| 13 | 7220 | Gearshift cables shroud |
| 14 | 7210 | Transaxle selector lever |
| 15 | 7F116 | Transaxle shift lever |
The IB5 manual transaxle external controls consists of the following:
- Gearshift cables
- shift cable
- selector cable
- Gearshift lever
- Gearshift lever knob and boot
- Transaxle shift lever
- Transaxle selector lever
The manual transaxle is controlled by a floor-mounted gearshift lever located in the floor console. Connection between the floor-mounted gearshift lever and the transaxle shift lever and selector lever is made through 2 gearshift cables. When the operator moves the floor mounted gearshift lever, that movement is transmitted through 2 gearshift cables routed through the floor to the transaxle. The 2 gearshift cables are attached to the transaxle at the shift lever and selector lever. The shift and selector levers transfer the movement of the gearshift cables to the shift rods and shift forks located inside the transaxle. Removal and installation of the gearshift cables require specific adjustments for correct shifting of the transaxle. For information regarding gearshift cable adjustments, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
The shift cable has white ends and the selector cable has black ends. The selector cable (black) does not have an adjustment.
