Output Shaft: Disassembly

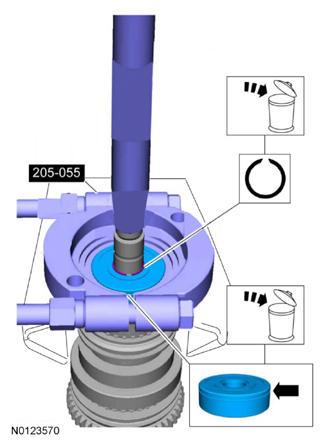

Remove the bearing.
- Remove and discard the circlip.
- Using the special tools, remove and discard the bearing.

  Fig 1: Removing Bearing Using Special Tools
  Courtesy of FORD MOTOR CO.

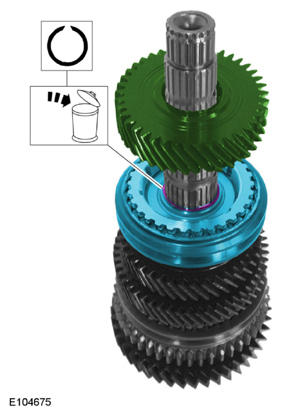

Remove 4th gear, remove and discard the snap-ring and remove the 3rd/4th gear synchronizer.

Fig 2: Removing 4th Gear Snap-Ring
Courtesy of FORD MOTOR CO.
Remove the 3rd gear synchronizer ring and 3rd gear.

Fig 3: Identifying 3rd Gear Synchronizer Ring And 3rd Gear
Courtesy of FORD MOTOR CO.

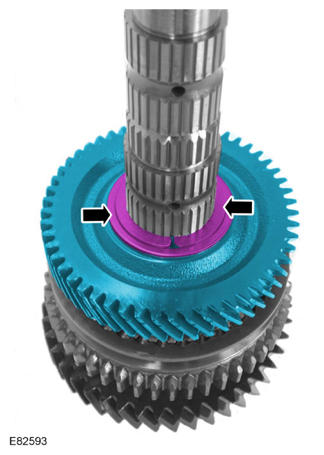

Remove the 2 half moon washers and 2nd gear.

Fig 4: Locating 2nd Gear And Half Moon Washers
Courtesy of FORD MOTOR CO.

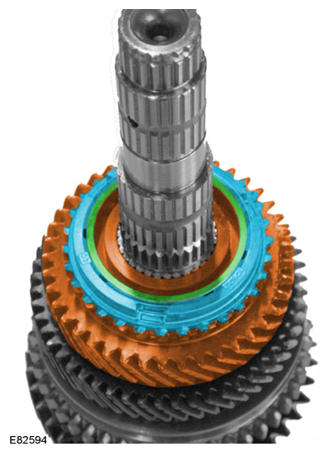

Remove the inner and outer synchronizer rings and the synchronizer cone.

Fig 5: Identifying Inner And Outer Synchronizer Rings
Courtesy of FORD MOTOR CO.

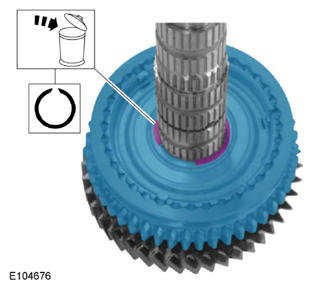

Remove and discard the snap-ring and remove the 1st/2nd gear synchronizer with reverse gear.

Fig 6: Removing 1st/2nd Gear Synchronizer Gear Snap-Ring
Courtesy of FORD MOTOR CO.

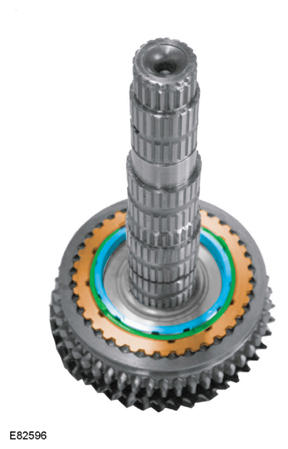

Remove the outer synchronizer ring.

Fig 7: Identifying Outer Synchronizer Ring
Courtesy of FORD MOTOR CO.
Remove the synchronizer cone, inner synchronizer ring and the 1st gear.

Fig 8: Identifying Synchronizer Cone, Inner Synchronizer Ring And 1st Gear
Courtesy of FORD MOTOR CO.

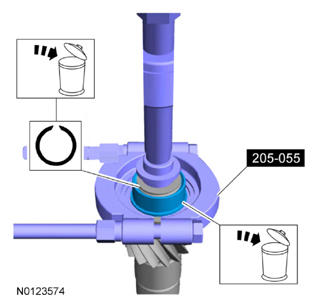

Remove the bearing cone.
- Remove and discard the snap-ring.
- Using the special tools, remove and discard the bearing cone.

  Fig 9: Removing Bearing Cone Using Special Tools
  Courtesy of FORD MOTOR CO.
