Selector Plate: Assembly

  1. Install the selector mechanism.
    1. Selector plate.
    2. Fifth and reverse gear selector rod guide sleeve.
    3. Reverse gear selector lever.
    4. Selector shift shaft.
    5. Fifth and reverse gear selector rod.
      Fig 1: Identifying Fifth And Reverse Gear Selector Rod, Guide Sleeve, Selector Shift Shaft, Lever And Plate
      G08867477Courtesy of FORD MOTOR CO.
  2. Install the 2 selector plate bolts.
    • Tighten to 22 Nm (16 lb-ft).

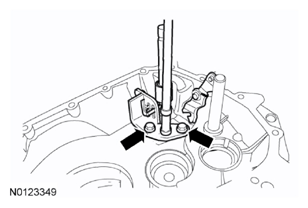

      Fig 2: Locating Selector Plate Mounting Bolts
      G08867478Courtesy of FORD MOTOR CO.
