Compressor Driver Module

Remove the rear floor console refrigerator. Refer to REFRIGERATOR .
NOTE: Do not bend the condenser tubes. The screwdriver must fit between the condenser tubes or damage may occur to the refrigerator.

Using a long thin screwdriver, remove the Phillips screw from the compressor driver module mounting bracket.

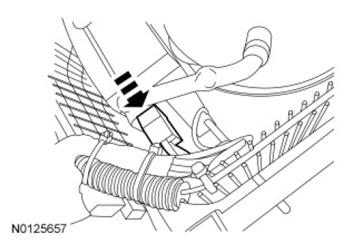

Fig 1: Removing Philips Screw From Compressor Driver Module Mounting Bracket Using Long Thin Screwdriver
Courtesy of FORD MOTOR CO.
Disconnect the upper electrical connector from the compressor driver module.

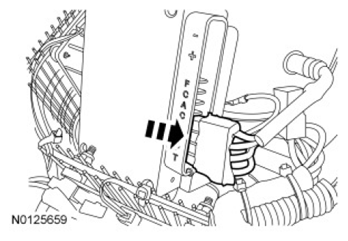

Fig 2: Disconnecting Upper Electrical Connector From Compressor Driver Module
Courtesy of FORD MOTOR CO.
Rotate the compressor driver module to the right and remove from the mounting bracket.

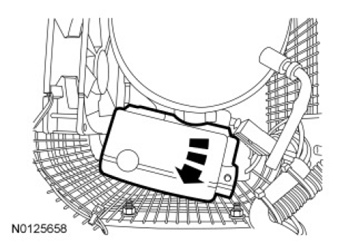

Fig 3: Rotating Compressor Driver Module To Right
Courtesy of FORD MOTOR CO.
Disconnect the lower electrical connector from the compressor driver module.

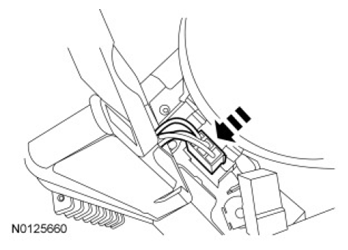

Fig 4: Disconnecting Lower Electrical Connector From Compressor Driver Module
Courtesy of FORD MOTOR CO.
Disconnect the compressor driver module-to-refrigerator electrical connector.

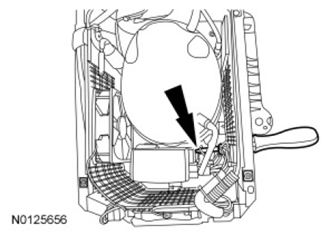

Fig 5: Locating Compressor Driver Module-To-Refrigerator Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
