Collapsible Steering Column Module Connector End View (C2360)

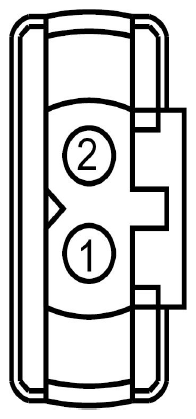

Fig 1: Identifying Collapsible Steering Column Module Connector (C2360)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +
2	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -
