Occupant Classification Sensor C Connector End View (C3330)

Fig 1: Identifying Occupant Classification Sensor C Connector (C3330)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR153 (GN-WH)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) +
2	RR153 (GY-BU)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) -
3	VR226 (YE-GY)	20	SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#3)

Available Pigtail Kits

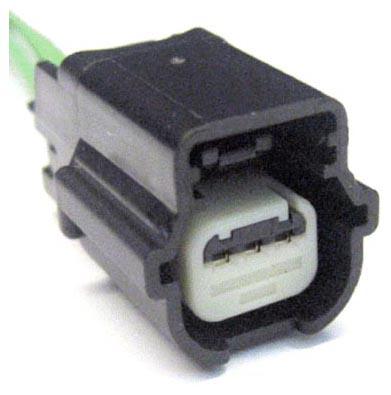

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

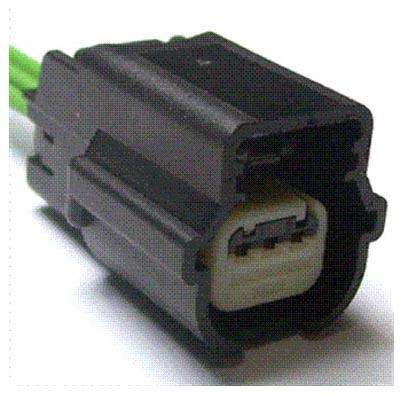

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB  Gauge: 20  Pin material: Silver  Cavities: 3  Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
