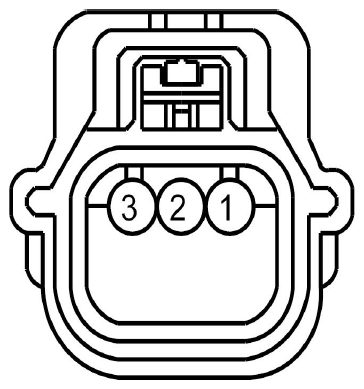

Occupant Classification Sensor D Connector End View (C3331)

Fig 1: Identifying Occupant Classification Sensor D Connector (C3331)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR154 (VT-OG)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#4) +
2	RR154 (VT-WH)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#4) -
3	VR227 (VT-GN)	20	SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#4)

Available Pigtail Kits

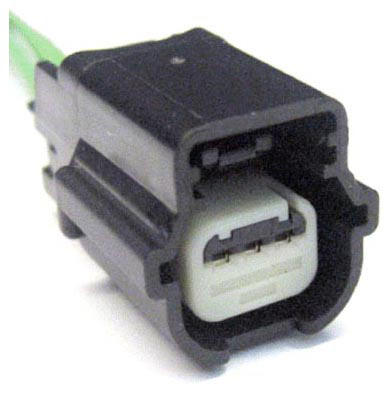

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

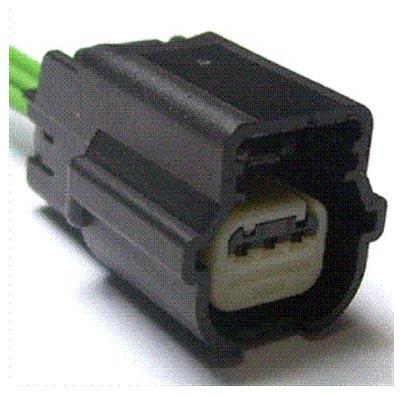

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB  Gauge: 20  Pin material: Silver  Cavities: 3  Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
