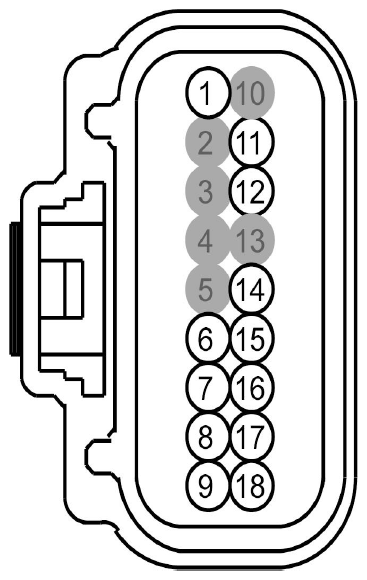

| 1 |
CBX02 (BN-RD) |
20 |
POWER - SEAT # RUN/START OCCUPANT CLASSIFICATION MODULE |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
RR153 (GY-BU) |
20 |
CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) - |
|
| 7 |
VR226 (YE-GY) |
20 |
SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#3) |
|
| 8 |
CR153 (GN-WH) |
20 |
CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) + |
|
| 9 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
LR142 (YE-BU) |
20 |
CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + |
|
| 12 |
VR210 (BU-BN) |
20 |
SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
GD901 (BK) |
20 |
GROUND - PASSENGER SEAT # RESTRAINTS |
|
| 15 |
RR154 (VT-WH) |
20 |
CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#4) - |
|
| 16 |
VR227 (VT-GN) |
20 |
SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#4) |
|
| 17 |
CR154 (VT-OG) |
20 |
CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#4) + |
|
| 18 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
