Power Fold Module (PFM) Connector End View (C4250D)

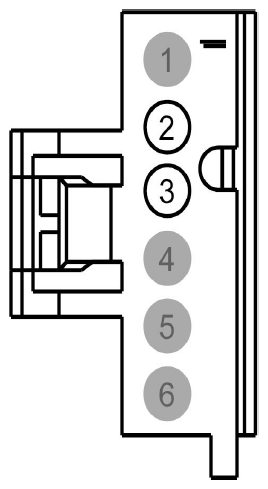

Fig 1: Identifying Power Fold Module (PFM) Connector (C4250D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CPSB1 (GN)	20	SWITCH - 3RD ROW SEAT LEFT # NORMAL/STOW
3	CPSB2 (GY)	20	SWITCH - 3RD ROW SEAT LEFT # FOLD/TAILGATE
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
