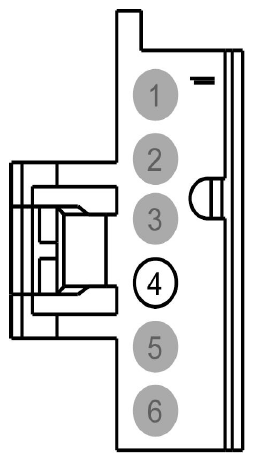

Power Fold Module (PFM) Connector End View (C4250E)

Fig 1: Identifying Power Fold Module (PFM) Connector (C4250E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	CPS48 (BU)	20	CTRL MOD. - RELAY(S) 3RD ROW SEAT (ENABLE)
5	*	*	Not Used
6	*	*	Not Used
