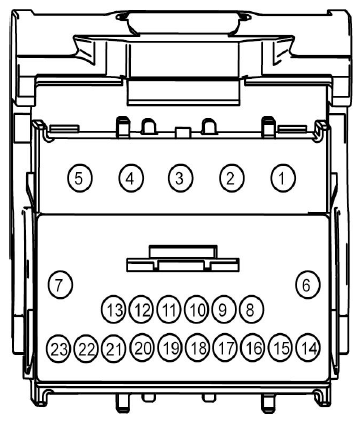

Remote Function Actuator (RFA) Module Connector End View (C2153B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPK29 (GY-BU) | 22 | SWITCH - KEYLESS KEYPAD LINE A | |
| 2 | CPK30 (VT-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE B | |
| 3 | CPK31 (YE-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE C | |
| 4 | CPL45 (BN) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used |
