Remote Function Actuator (RFA) Module Connector End View (C2153C)

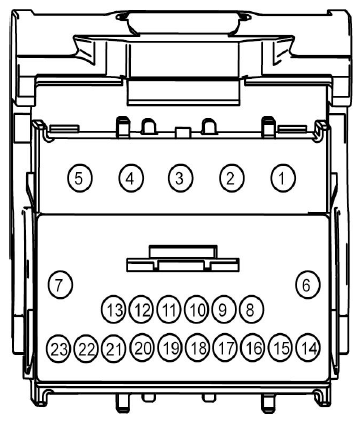

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector (C2153C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP11 (BU-RD)	18	FUSE - 11 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD374 (BK-WH)	20	GROUND - TUNNEL (BC3T)
4	*	*	Not Used
5	SBP27 (BU-RD)	14	FUSE - 27 OR CIRCUIT BREAKER
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	CCB08 (VT-WH)	22	SWITCH - BRAKE PEDAL POSITION (BPP)
19	*	*	Not Used
20	*	*	Not Used
21	CDC35 (BU-WH)	22	SWITCH - IGNITION # START
22	*	*	Not Used
23	*	*	Not Used
